8-8
Troubleshooting
The adapter maintains an event queue that reports the history of its
actions. You can view the event queue using DriveExplorer (3.01)
software.

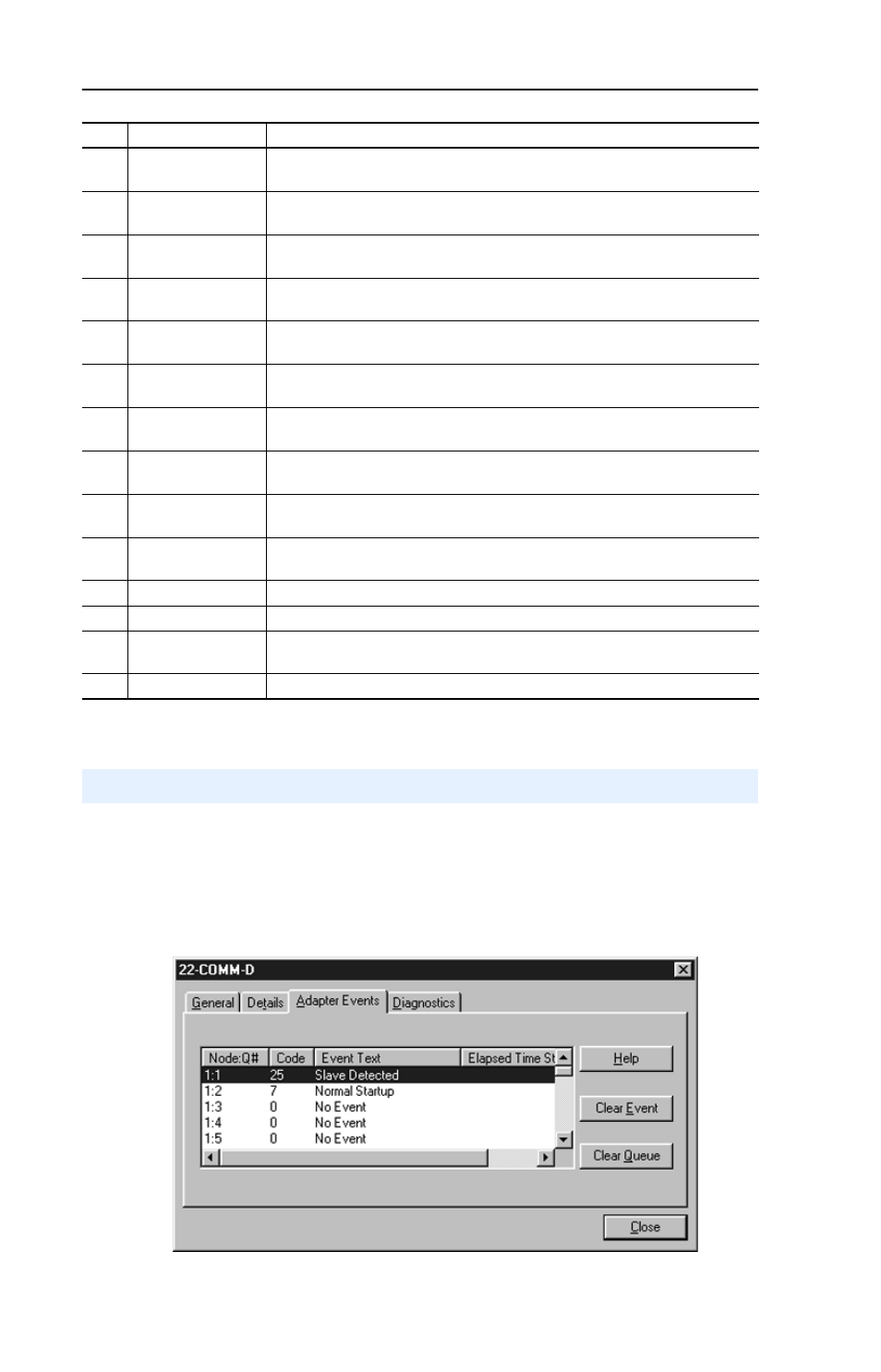

Figure 8.2 DriveExplorer Event View/Clear Screen
37
IP Addr Act 4
The least significant byte in the adapter’s current IP address, or 0 if the
adapter does not currently have an IP address.
38
Subnet Act 1
The most significant byte in the adapter’s current subnet mask, or 0 if the
adapter does not currently have a subnet mask.
39
Subnet Act 2
The second most significant byte in the adapter’s current subnet mask, or
0 if the adapter does not currently have a subnet mask.
40
Subnet Act 3
The second least significant byte in the adapter’s current subnet mask, or
0 if the adapter does not currently have a subnet mask.
41
Subnet Act 4
The least significant byte in the adapter’s current subnet mask, or 0 if the
adapter does not currently have a subnet mask.
42
Gateway Act 1
The most significant byte in the adapter’s current gateway address, or 0 if
the adapter does not currently have a gateway address.
43
Gateway Act 2
The second most significant byte in the adapter’s current gateway
address, or 0 if the adapter does not currently have a gateway address.
44
Gateway Act 3
The second least significant byte in the adapter’s current gateway
address, or 0 if the adapter does not currently have a gateway address.
45
Gateway Act 4
The least significant byte in the adapter’s current gateway address, or 0 if
the adapter does not currently have a gateway address.
46
EN Rx Overruns
A count of the number of receive buffer overrruns reported by the
Ethernet MAC.
47
EN Packets Rcvd
A count of the number of receive packets reported by the Ethernet MAC.
48
EN Rx Errors
A count of the number of receive errors reported by the Ethernet MAC.
49
EN Packets Sent
A count of the number of transmitted packets reported by the Ethernet
MAC.
50
EN Tx Errors
A count of the number of transmit errors reported by the Ethernet MAC.
No.
Name
Description
Viewing and Clearing Events
