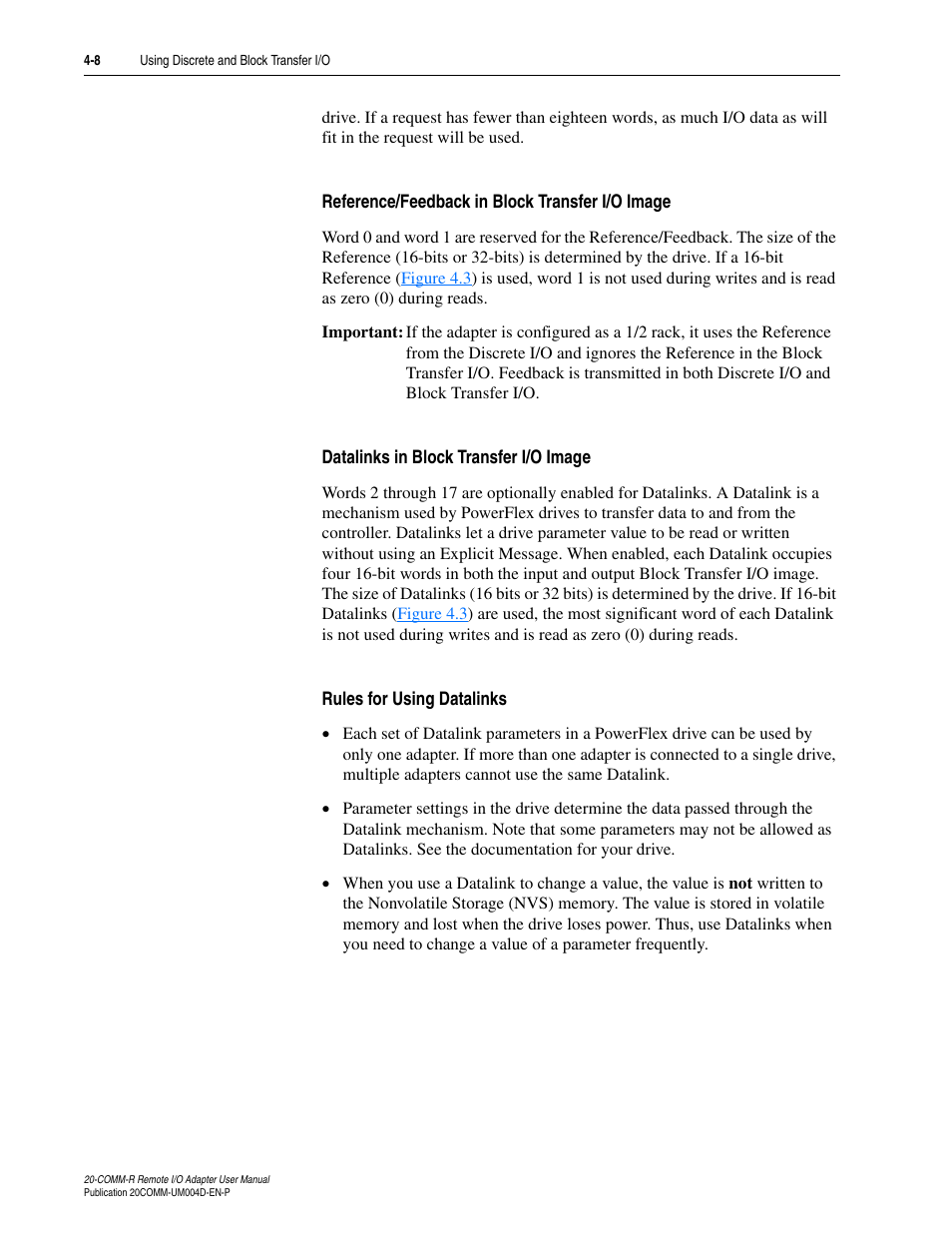

Reference/feedback in block transfer i/o image, Datalinks in block transfer i/o image, Rules for using datalinks – Rockwell Automation 20-COMM-R Remote I/O Adapter User Manual
Page 44
