Rockwell Automation Publication 20B-IN026B-EN-P - July 2013

85

Converter Assembly Component Replacement Procedures

Chapter 4

Heatsink Fan Assembly

See

Chapter 1 - Component Diagrams and Torque Specifications

to locate

components in these instructions.

Remove Components

1. Read and follow the

Safety Precautions on page 11

and

Important Initial

Steps on page 12

.

2. Remove safety shields and enclosure covers as needed.
3. Carefully cut the plastic wire ties (do not cut the wires) and label each

connector for the Fan Capacitor or TB12.

4. Label and remove the wires from TB12 to the Transformer (120, N, PE).
5. Remove the 12 mounting bolts for the heatsink fan mounting plate.
6. Carefully remove the mounting plate and fan. You may need to pry the

mounting plate away from the gasket. Remove the gasket if damaged.

7. Remove the four heatsink fan mounting bolts and remove the heatsink fan

from the mounting plate.

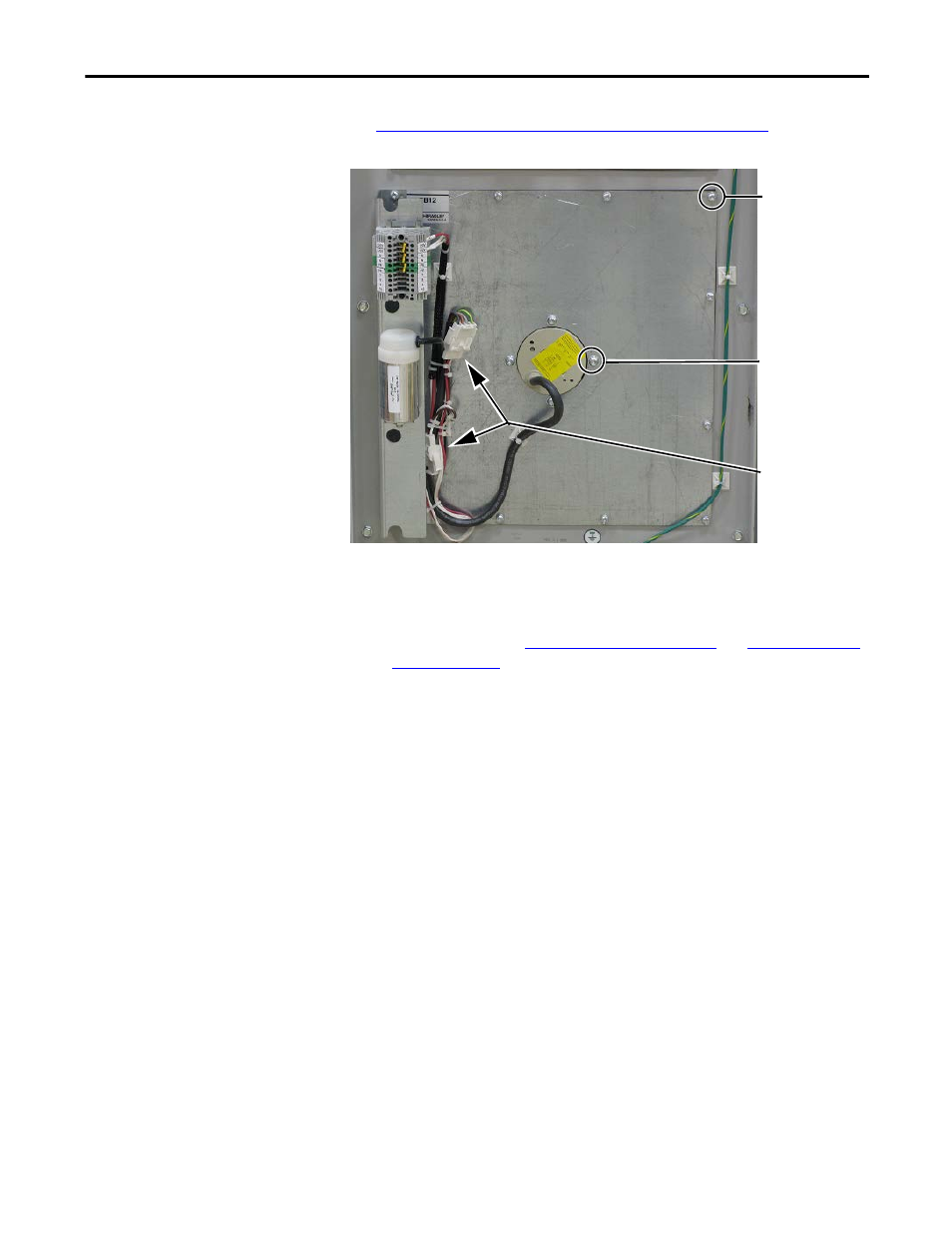

Heatsink Fan
Mounting Plate Bolts
(12)

Heatsink Fan
Mounting Bolts (4)

TB12 and Fan
Capacitor Wiring
Plugs
