Rockwell Automation Publication 20B-IN026B-EN-P - July 2013

27

Basic Component Removal Procedures

Chapter 2

Transitional Busbar
Assembly

(Inverter Assembly)

See

Chapter 1 - Component Diagrams and Torque Specifications

to locate

components in these instructions.

Remove Components

1. Read and follow the

Safety Precautions on page 11

and

Important Initial

Steps on page 12

.

2. Remove safety shields and enclosure covers as needed.
3. Remove the Main Control panel. See

Main Control Panel (Inverter

Assembly) on page 22

.

4. Remove the Stacking Panel. See

Stacking Panel (Inverter Assembly) on

page 24

.

5. Locate the Transitional Busbar assembly.

IMPORTANT

The instructions detailed in this section describe how to remove the
Transitional Busbar assembly as a single unit.

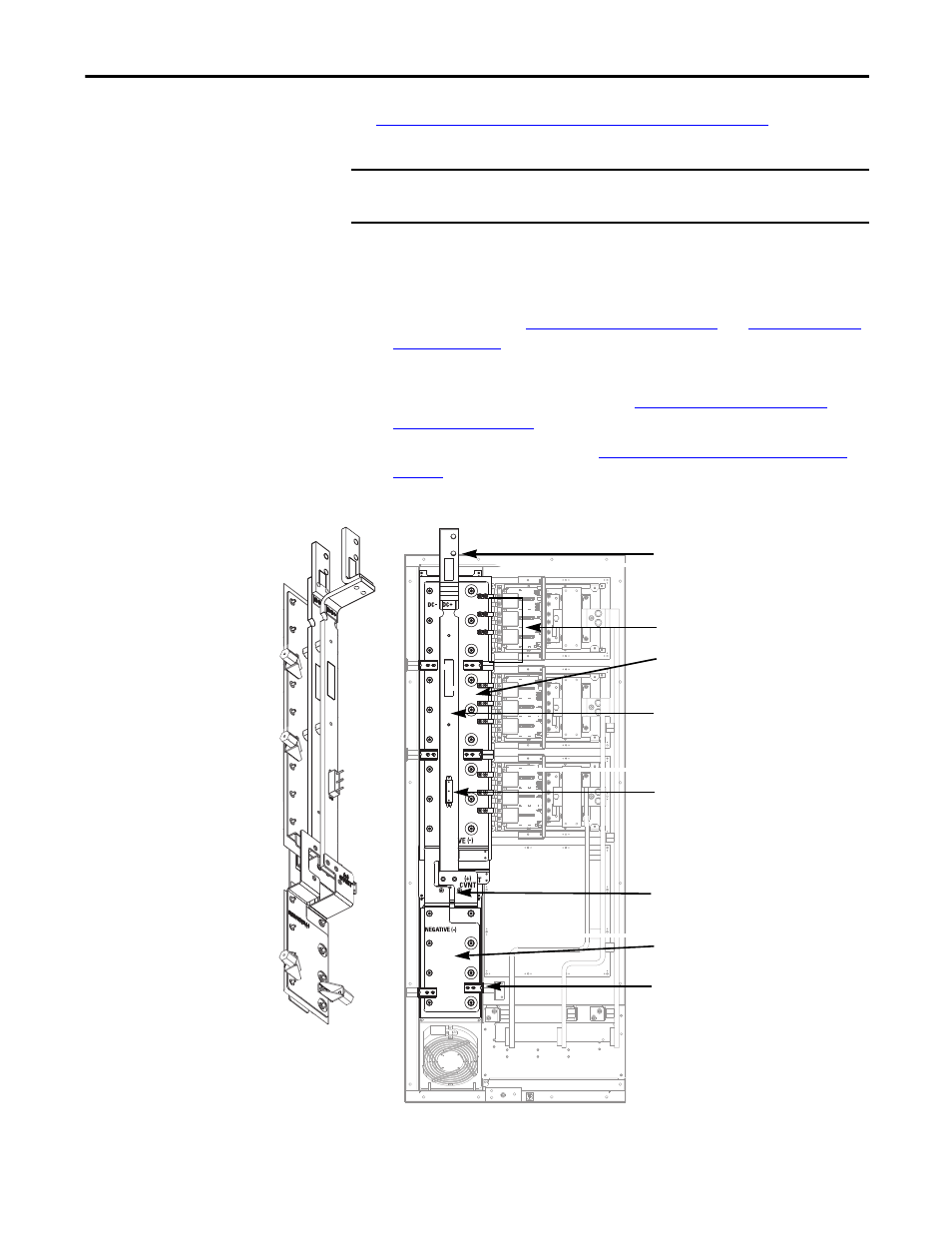

DC Choke Output Cables Location

Transitional Busbar Assembly

Balancing Resistor

Side Standoffs and Brackets (6)

IGBT Snubber Components (3)

Upper and Lower Capbus Support
Connecting Brackets

Lower Capbus Support

Upper Capbus Support

Transitional Busbar Assembly
(4 pcs: DC+ Busbar, DC- Busbar,
Upper Capbus Support,
Lower Capbus Support)
