Rockwell Automation Publication 20B-IN026B-EN-P - July 2013 81
Converter Assembly Component Replacement Procedures Chapter 4
Snubber Boards See Chapter 1 - Component Diagrams and Torque Specifications to locate the
component detailed in these instructions.
Remove Components
1. Read and follow the
Safety Precautions on page 11 and Important Initial
Steps on page 12 .
2. Remove safety shields and enclosure covers as needed.
3. Locate the Snubber Board(s) to be replaced.
4. Carefully label and disconnect the wires from Snubber Board(s) that will
be replaced.

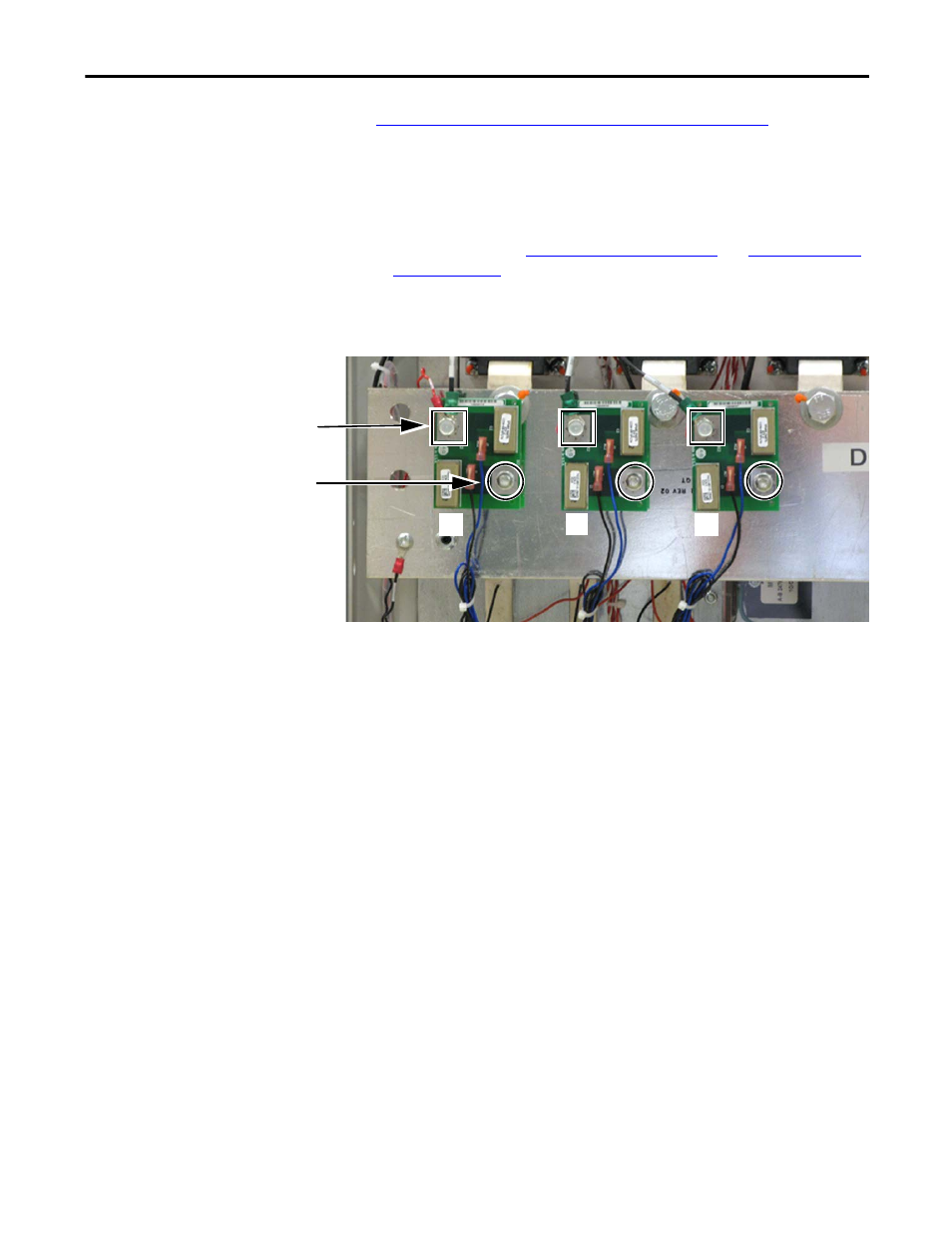

5. Remove the DC1 terminal screw and mounting screw for the Snubber
Board(s) to be replaced.
6. Remove the Snubber Board(s) and properly discard.
R S T
DC1 Terminal Screw
Mounting Screw
