Fan transformer (ip20 version only), Remove components, Install components – Rockwell Automation 20B PowerFlex 700 Drives - Frame 10 Components Replacement User Manual
Page 69: Remove components install components

Rockwell Automation Publication 20B-IN026B-EN-P - July 2013
69
Inverter Assembly Component Replacement Procedures
Chapter 3
Fan Transformer
(IP20 version only)
Chapter 1 - Component Diagrams and Torque Specifications
to locate
components in these instructions.
Remove Components
1. Read and follow the
and
2. Remove safety shields and enclosure covers as needed.
3. Label and unplug or disconnect any wires for the Fan Transformer.
4. Unscrew the four transformer mounting bracket screws.
5. Remove the transformer and properly discard.
Install Components
1. Install the new Fan Transformer by screwing mounting brackets to drive.
2. Reconnect all wires for the transformer.
3. Replace all safety shields and enclosure covers before applying power to the
drive.

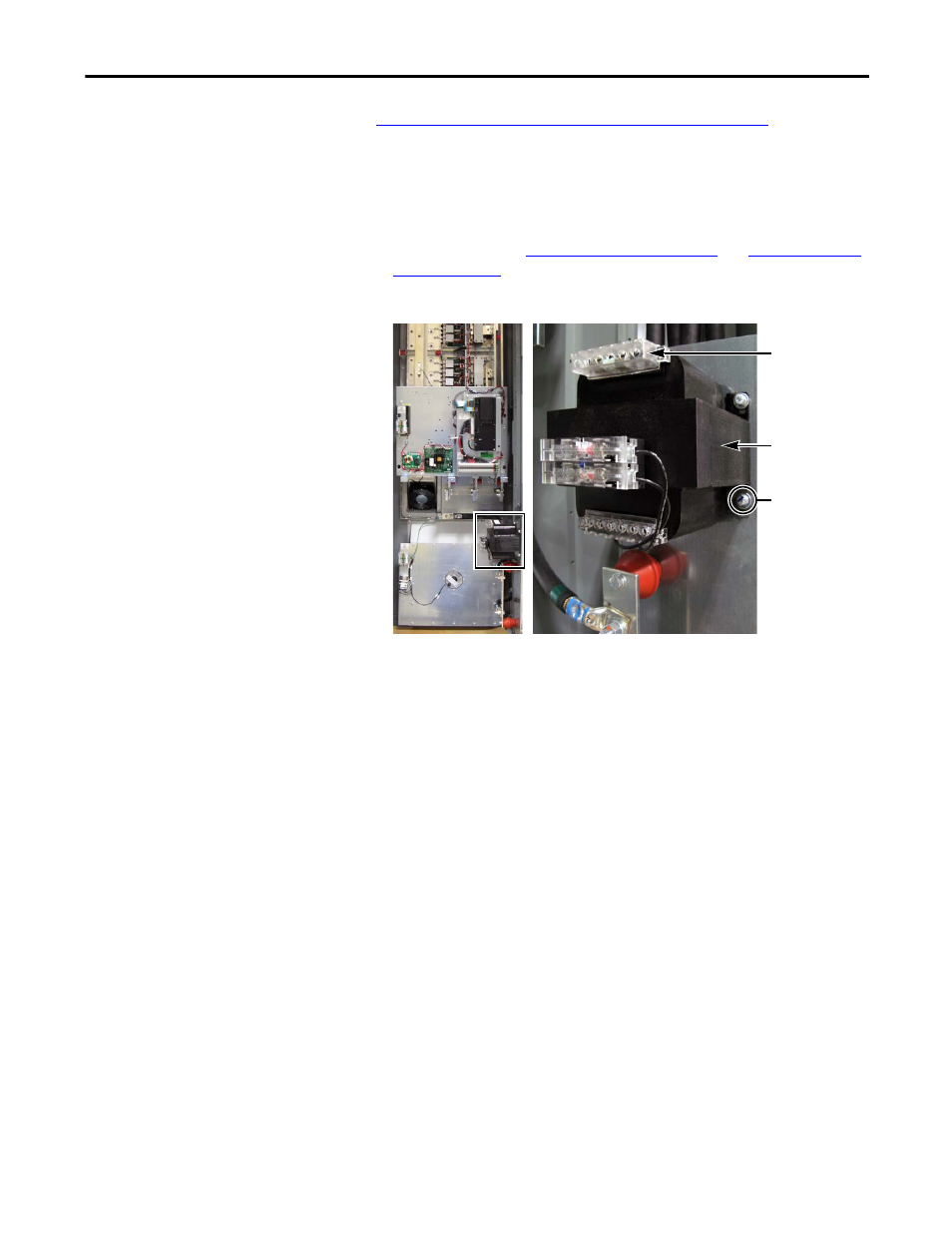

Fan Transformer
Label and
disconnect any
wires connected
here.
Mounting bracket
screws (4)
