Install components – Rockwell Automation 20B PowerFlex 700 Drives - Frame 10 Components Replacement User Manual
Page 44
44
Rockwell Automation Publication 20B-IN026B-EN-P - July 2013
Chapter 3
Inverter Assembly Component Replacement Procedures
Install Components

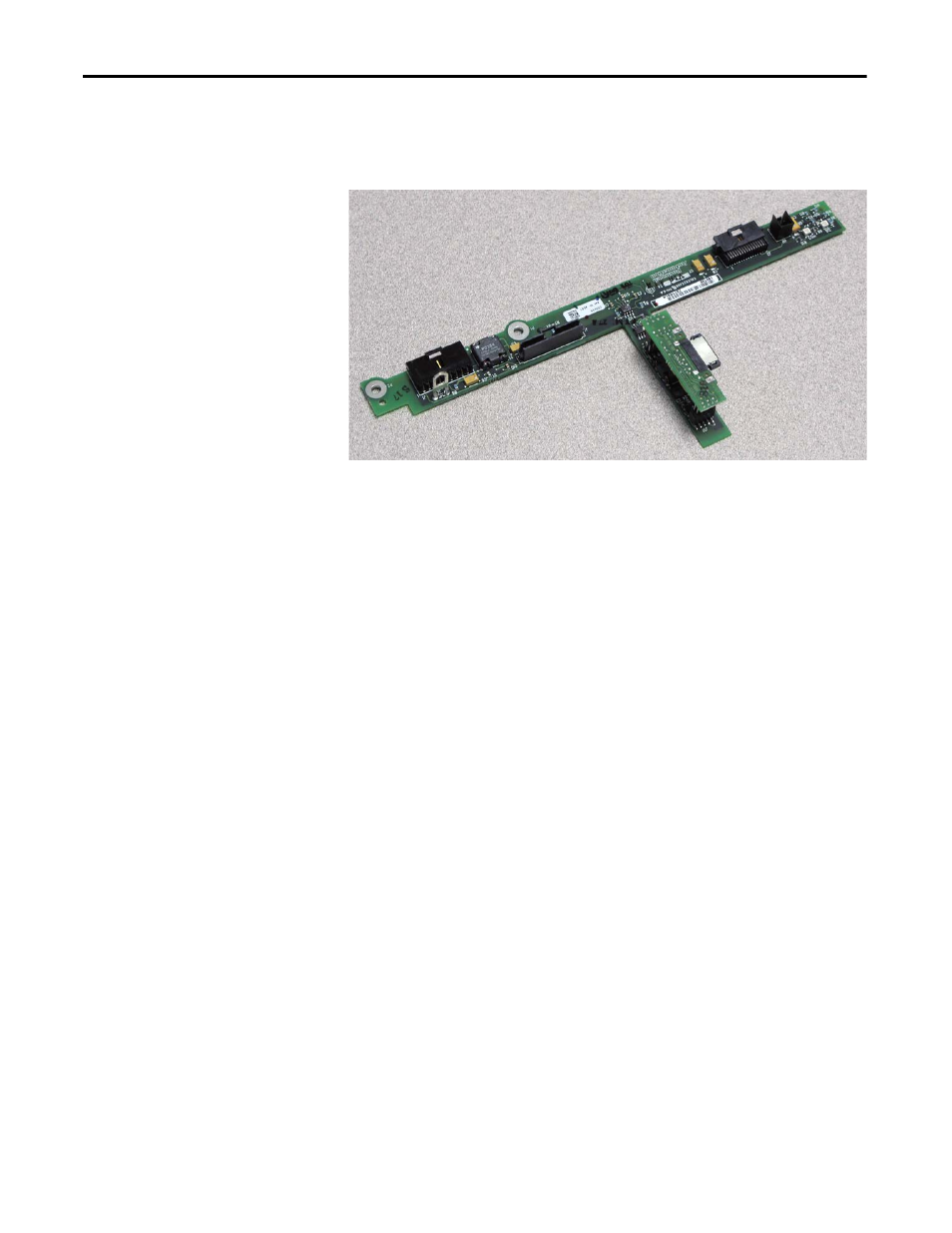

1. Install the new T-Comm Board.
2. Verify the board is locked into all seven locking tabs.
3. Carefully bend the T-Comm grounding tab until it is flush with the screw
mount on the Main Control Board.
4. Reassemble all components in the reverse order of removal.
5. Tighten the HIM Cradle/Board mounting screws.
6. Reconnect all cables, safety shields, and enclosure covers before applying
power to the drive.
