Dc link choke, Remove components, Install components – Rockwell Automation 20B PowerFlex 700 Drives - Frame 10 Components Replacement User Manual

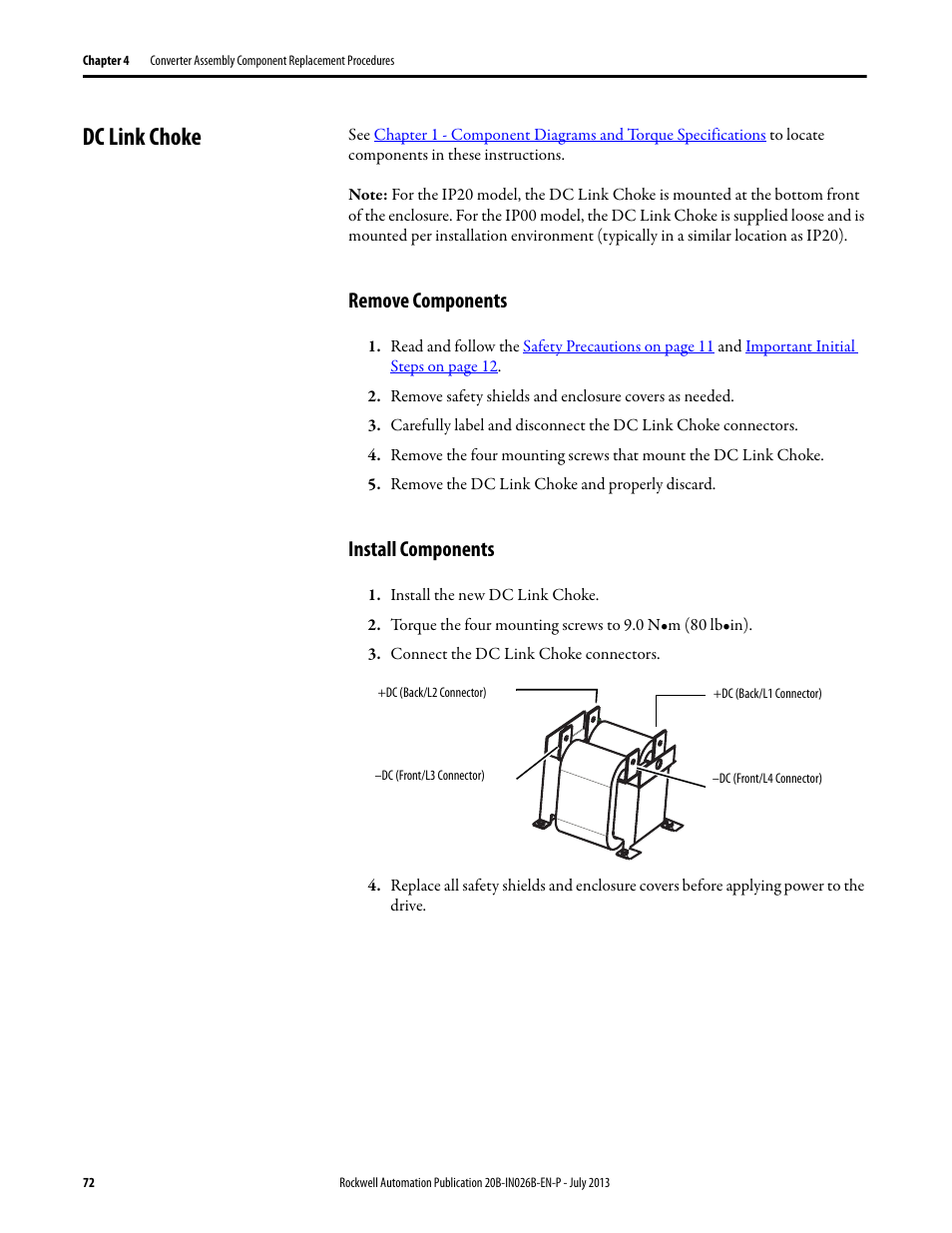

Page 72: Remove components install components
