Fan transformer (ip20 version only), Remove components, Install components – Rockwell Automation 20B PowerFlex 700 Drives - Frame 10 Components Replacement User Manual

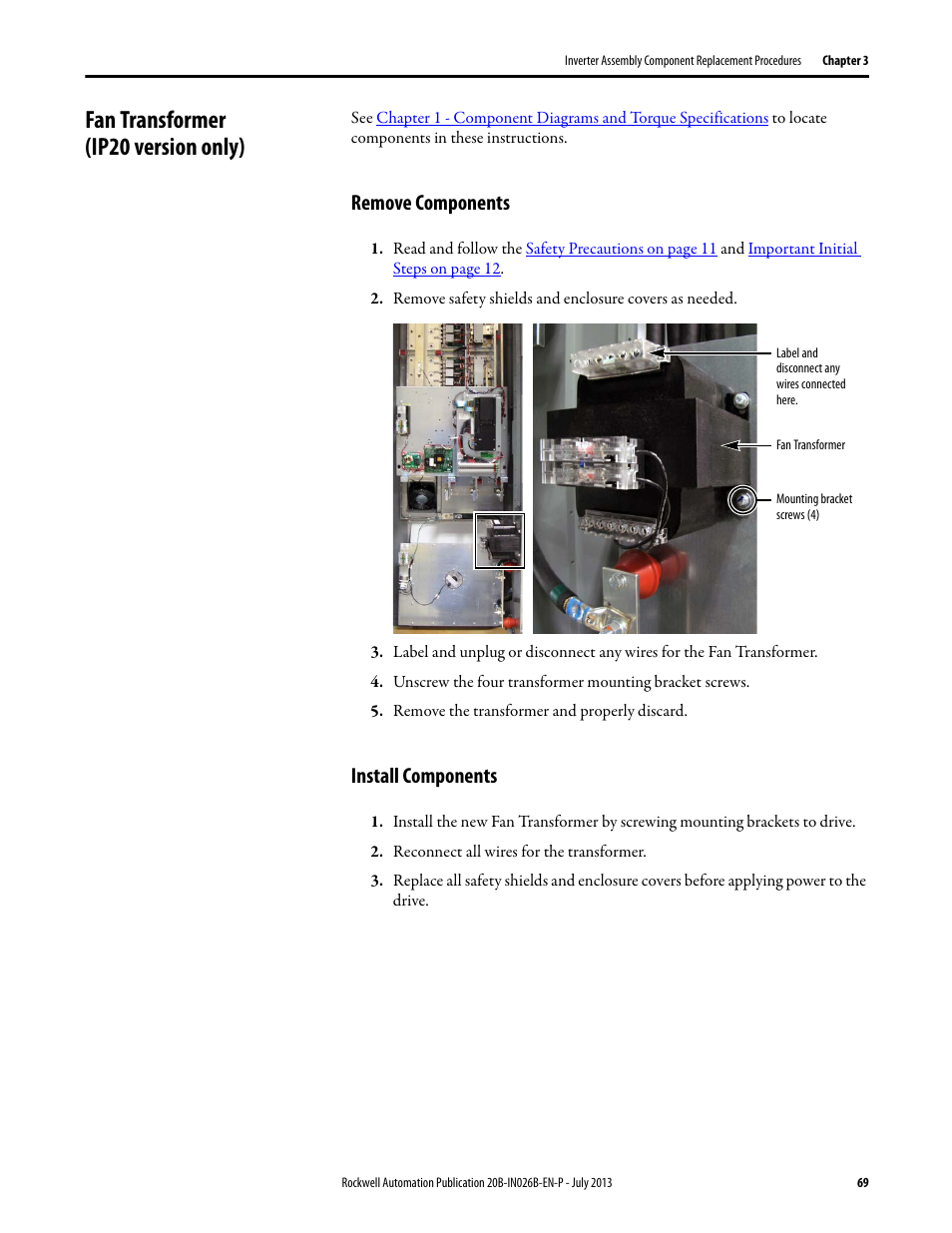

Page 69: Remove components install components
