Chapter 3 Using Front Display
Programming Mode
EM920 Power Quality and Revenue Meter
49

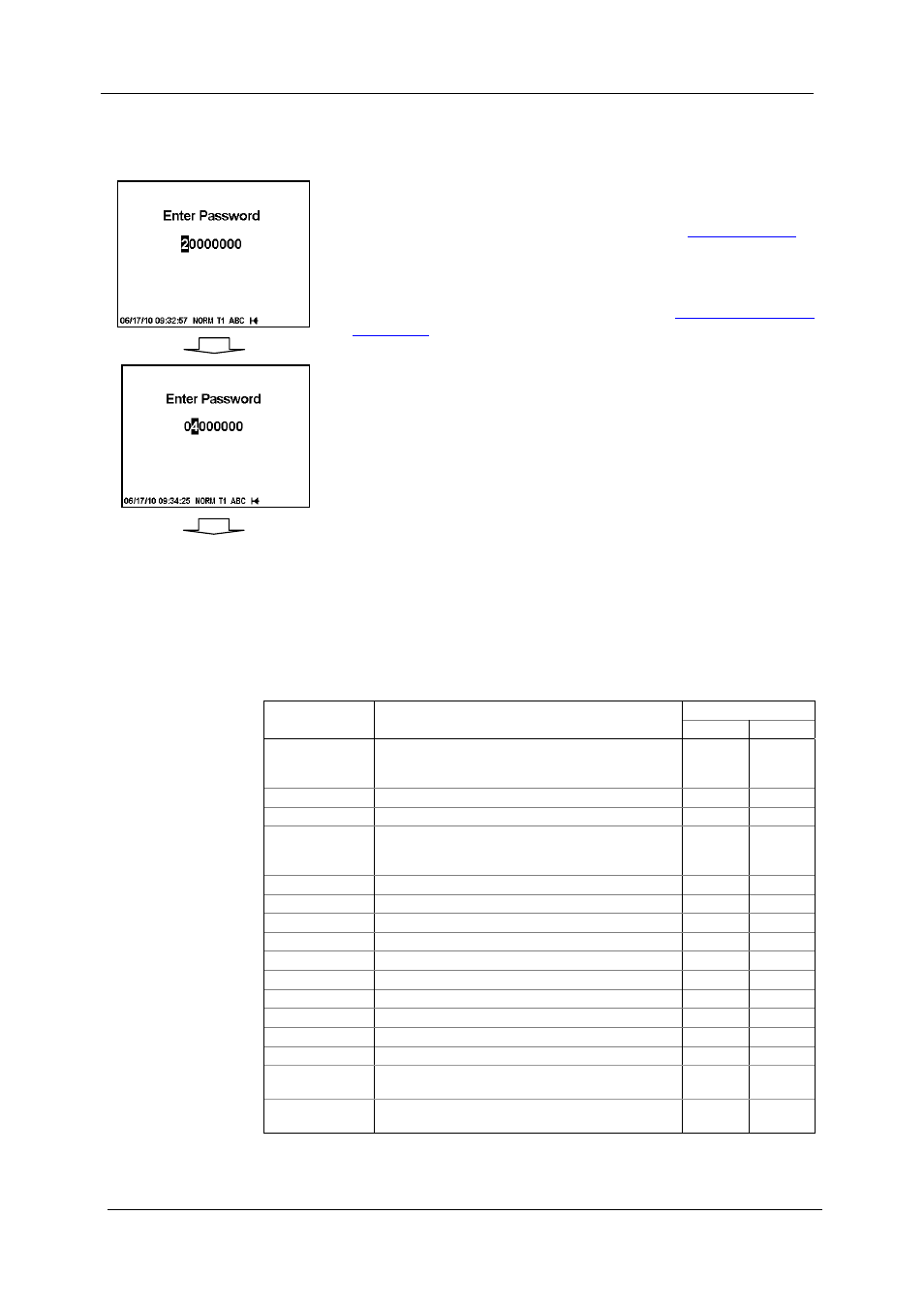

Password Security
The setup menus are secured by 8-digit user passwords.
Every time you enter programming mode, you are prompted
for a correct password. The meter is primarily shipped with
all passwords preset to 9 at the factory. See
Chapter 2 for more information on the meter security levels.
It is recommended that you change the factory set passwords
as fast as possible to protect your setups and accumulated
data from unauthorized changes. See
in Chapter 5 on how to change passwords in your
meter.
Enter the password as you enter numeric values. As you
move to the next place, the digit entered is saved and then
zeroed. If you missed a digit, you should re-type all
preceding digits before you reach the missed place again.
Once the password is set to the desired value, press and hold
the SELECT/ENTER button for more than 1 second. If the
password you entered is correct, you move to the main
device menu, otherwise you return back to the data display.
Setup Menus and Access Rights
The EM920 setup is menu-driven. The meter provides 12
menus that allow local accessing a limited number of meter
setups and control functions listed in the following table.
Access to particular menus is granted depending on the
security level of the password you entered.
Security Level
Menu Label
Menu Function
View Change
Reset
Reset of engineering maximum demands,
device diagnostics, meter and battery
operation time counters and failure counters
N/A See
Note
below
RTC Setup
RTC clock setup
Low
Low
Display Setup
Display setup
Low
Low
Test Mode
Setup
TEST/NORMAL mode switching and LED pulse
rate setup for TEST mode (directly accessible
via the TEST button)
Low Medium
Basic Setup
Basic device setup
Low
High
Options Setup
Device options setup
Low
High
COM1 Setup
COM1 serial port setup
Low
Medium
COM2 Setup
COM2 serial port setup
Low
Medium
COM3 Setup
COM3 serial port setup
Low
Medium
COM4 Setup
COM4 serial port setup
Low
Medium
Network Setup Ethernet network setup
Low
Medium
Local Setup
Local settings
Low
Medium
Access Setup
Meter passwords setup
High
High
Loader
Launches flash download via a local serial port N/A
Medium
Reset Bill MD
Reset of billing maximum demands (accessible
via the DEMAND RESET button)
N/A Sealed
Master Reset
Reset of the billing data and files (protected by
a security jumper)
N/A Security
jumper
LONG PRESS
ENTER
SHORT
SELECT
