Beacon 410 Gas Monitor Operator’s Manual Optional Accessories • 13
NOTE: See “Chapter 3: Installation and Start Up” on page 14 for complete Beacon
410 installation instructions.
CAUTION: Do not adjust the strobe brightness or the horn volume at the strobe/horn, as this
may overload the Beacon 410 strobe control circuit.
The horn/strobe does not come factory installed to the Beacon 410. To install the horn/
strobe:
1. Mount the horn/strobe in the desired location.
2. Install an appropriately rated cable bushing or conduit to the left conduit hub on the
bottom of the Beacon 410 housing.
3. Install an appropriately rated cable bushing or conduit at the horn/strobe.
4. Run a cable or wires in conduit from the horn/strobe to the Beacon 410 through the
left conduit hub.
5. Connect the wires to the strobe terminal strip as shown in the figure below.

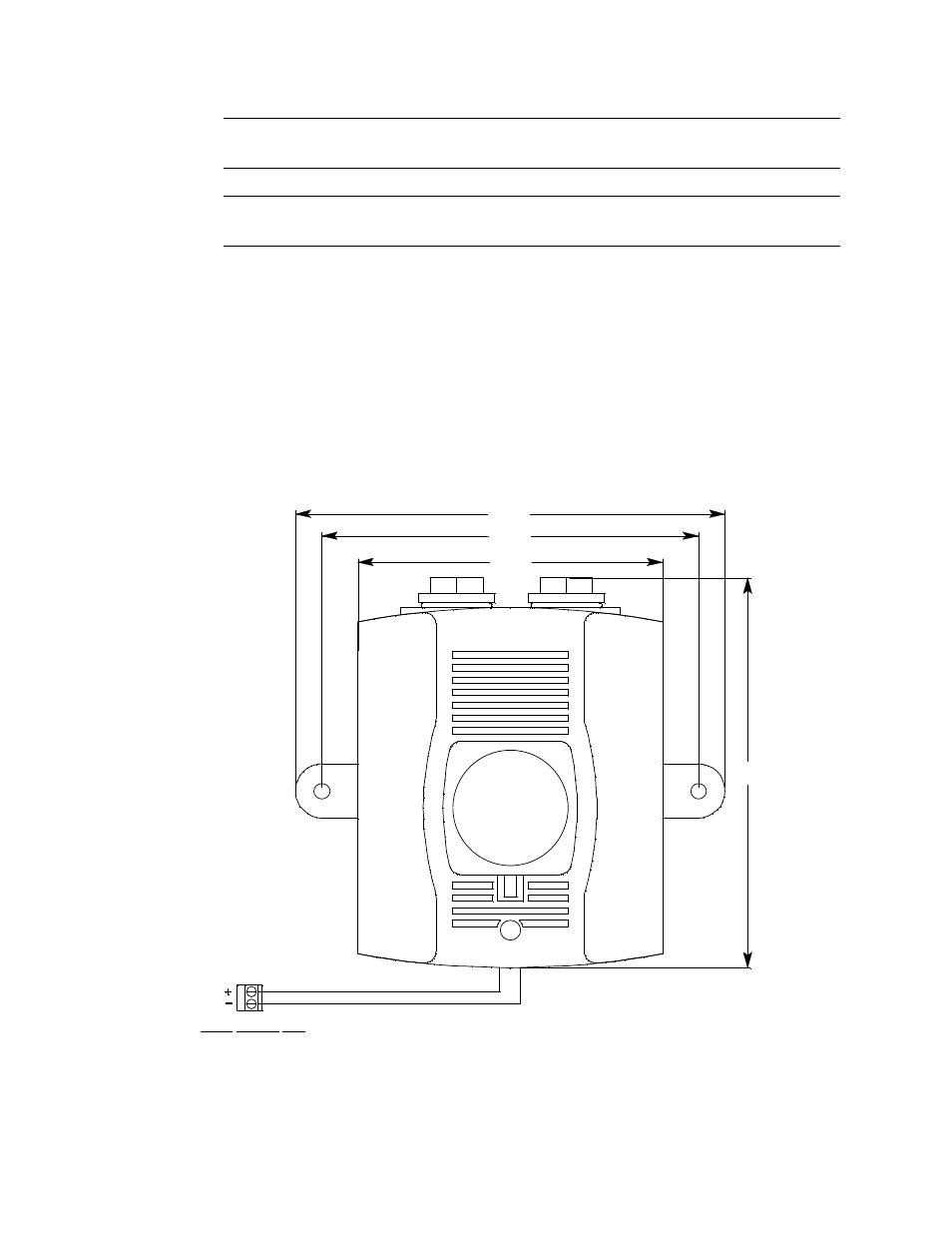

Figure 6: Horn/Strobe Wiring/Oultine and Mounting Dimensions
Strobe Terminal Strip
-
Dimensions Shown in Inches
4.83
6.81
5.97
6.17
+
