Step 6, Magna-loc, Installation of panel – Metal Sales Magna-Loc Installation User Manual
Page 49
© Metal Sales Manufacturing Corporation / Subject to change without notice 6/12
49
MAGNA-LOC
INSTALLATION OF PANEL (
cont
.)

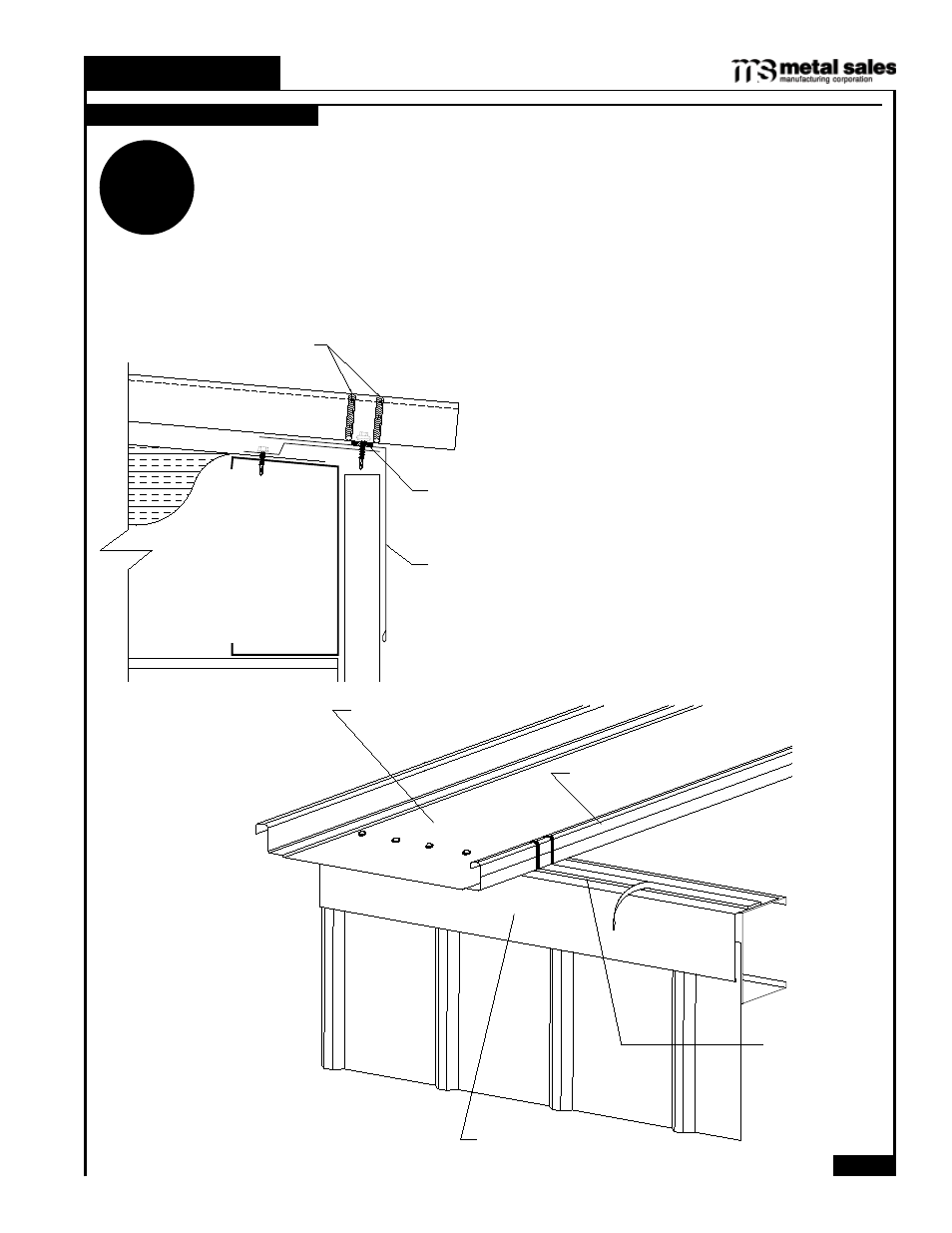

Note: It is critical that sealants be properly placed to prevent moisture leakage.
Tube Sealant
Gutter Drip
Double Bead Tape Sealant
Gutter Drip
Magna-Loc Panel
Double Bead
Tape Sealant
Male Leg
STEP
6
SIDELAPPING OF PANEL
Steps:
1. Apply two
3
/
8
" beads of Tube Sealant along the vertical male leg of the panel and across the horizontal portion of the top
side of the male leg directly over the Double Bead Tape Sealant on the eave flashing. Be sure the Tube Sealant joins with
the Double Bead Tape Sealant.
2. Peel back the paper backing covering the Double Bead Tape Sealant at the eave flashing previously installed.
