Metal Sales Magna-Loc Installation - Manual (Page 10)

© Metal Sales Manufacturing Corporation / Subject to change without notice 6/12
10
MAGNA-LOC

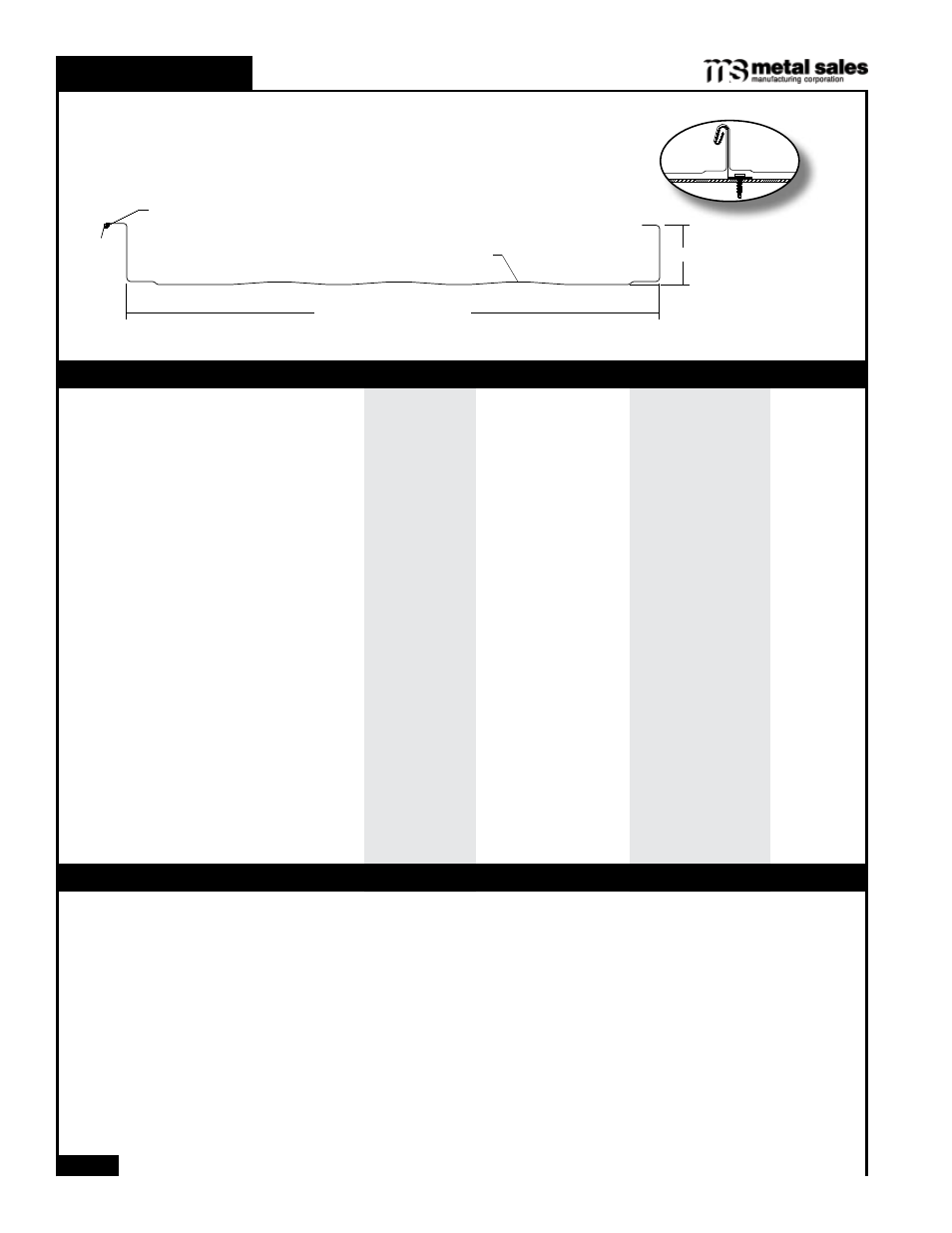

Panel Coverage (Striated)
2" C
180 o Seam
_ _ Represents color code designation.
 See page 6 in this manual or Metal Sales color guides for color selection.
 Requires additional lead time.
* Additional charges for Field Bending and for Factory Bending
ACG (Striated) 24 16" 3135841 130
PVDF Standard(Striated) 24 16" 32358_ _ 130
ACG (Striated) 24 16" 3335841 161
PVDF  (Striated) 22 16" 34358_ _ 161
ACG (Striated) 24 18" 3536041 126
PVDF Standard(Striated) 24 18" 37360_ _ 126
ACG (Striated) 22 18" 3836041 156
PVDF  (Striated) 22 18" 39360_ _ 156
FINISH GAUGE COVERAGE PRODUCT NO. WT/SQ
180° cURVED PAnEL PRoFILE
PANEL NOTES
1. For panel lengths over 45'-0", please inquire.
2. Minimum recommended roof slope: 1 /
2
:12.
3. All panels have factory applied sealant. The sealant is applied as part of the curving operation.
4. Oil canning is not a cause for rejection. Heavier gauges help minimize oil canning.
5. The Magna-Loc panel system requires the use of a mechanical seamer for proper installation. Contact Metal Sales for rental
information.
6. If requested, panels are factory notched and/or pre-punched for endlap conditions.
7. Finish: PVDF (Meets Kynar 500/Hylar 5000 Specs).
8. For additional information on product applications, loadings and flashing details, consult the Product or Installation
Manuals.
9. Add 30 feet of extra sheets for fine tuning curving machine per radius, per job.
Factory Applied Sealant
