MAGNA-LOC
INSTALLING
PANEL CLIP
STEP
2
Note: The Eave Plate serves as an extension of the structure to support and fasten (if required) the
panel at the eave on applications utilizing the Low or High Floating Clip Systems. Size of Eave Plate
can vary (see System Components list on page 20).

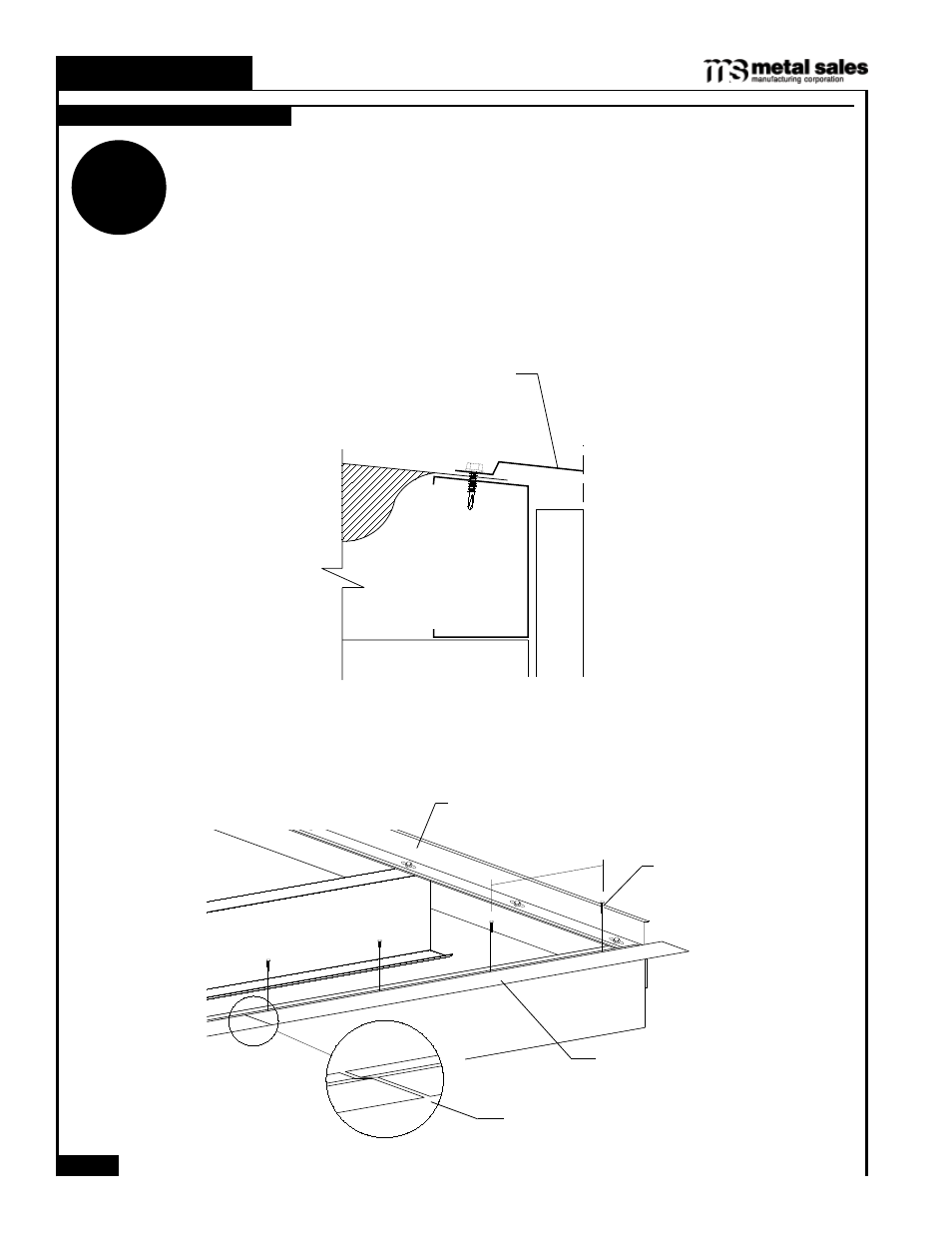

Align Eave Plate With
Finished Wall Surface
Floating Rake Zee
12"
Eave Plate
Butt ends
Self Driller no
Washer
INSTALLATION OF PANEL (
cont
.)
INSTALLING EAVE PLATE
Steps:
1. If using blanket insulation, the Eave Plate may be used to secure the insulation at the eave. Be sure to remove the
fiberglass and fasten only the vapor barrier to avoid wicking.
2. Place pre-punched leg of Eave Plate on top of eave framing member. Align the top leg of the Eave Plate flush with
the finished wall surface at the eave of the building.
3. Fasten Eave Plate to eave framing member with #12 -14 x 1" or #12 -14 x 1 1 /
4
" Self Driller No Washer screws 12"o.c. Do
not fasten through Eave Plate into Floating Rake Zee. Movement of the Floating Rake Zee is imperative for proper
installation of roof system.
4. If two or more Eave Plates are required, butt ends of the Eave Plates (Do Not Overlap) and continue fastening.
