MAGNA-LOC
INSTALLATION OF PANEL (
cont
.)
7. Nest the flat of the peak panel into the eave panel.
8. Apply a pig tail of Endlap Pad on the top side of the male leg where panel notch occurs.

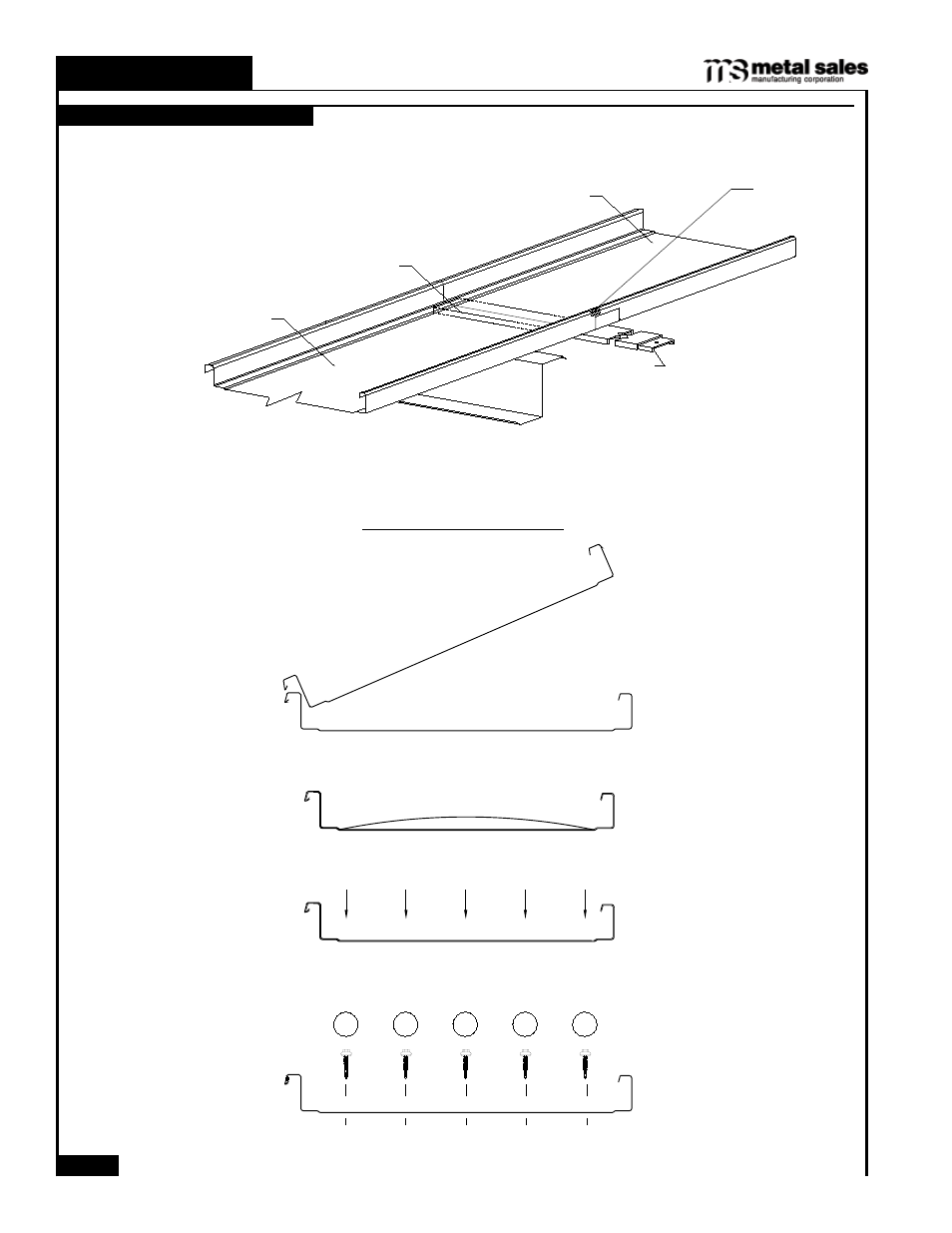

ENDLAPPING SEQUENCE OVERVIEW
Set Peak Panel in Endlap Pad
Install Endlap Fasteners
(See page 45 for Fastening Pattern Sequence)
5 3 1 2 4
Hold flat of Peak Panel up at lap
Lap Male Legs
Lap Female Legs
Peak Panel
Eave Panel
ENDLAPPING OF PANEL (CONT.)
Magna-Loc Eave Panel
Magna-Loc Peak Panel
Leading end
of Back-Up
Channel
Trailing end of Back-Up Channel
9. Install five (5) #12-14 x 1 1 /
4
" Self Driller Screws XL where the peak panel laps over the eave panel and fasten in
accordance with fastening pattern sequence shown below.
10. Repeat previous steps for subsequent endlaps.
Pig tail of
Sealant
