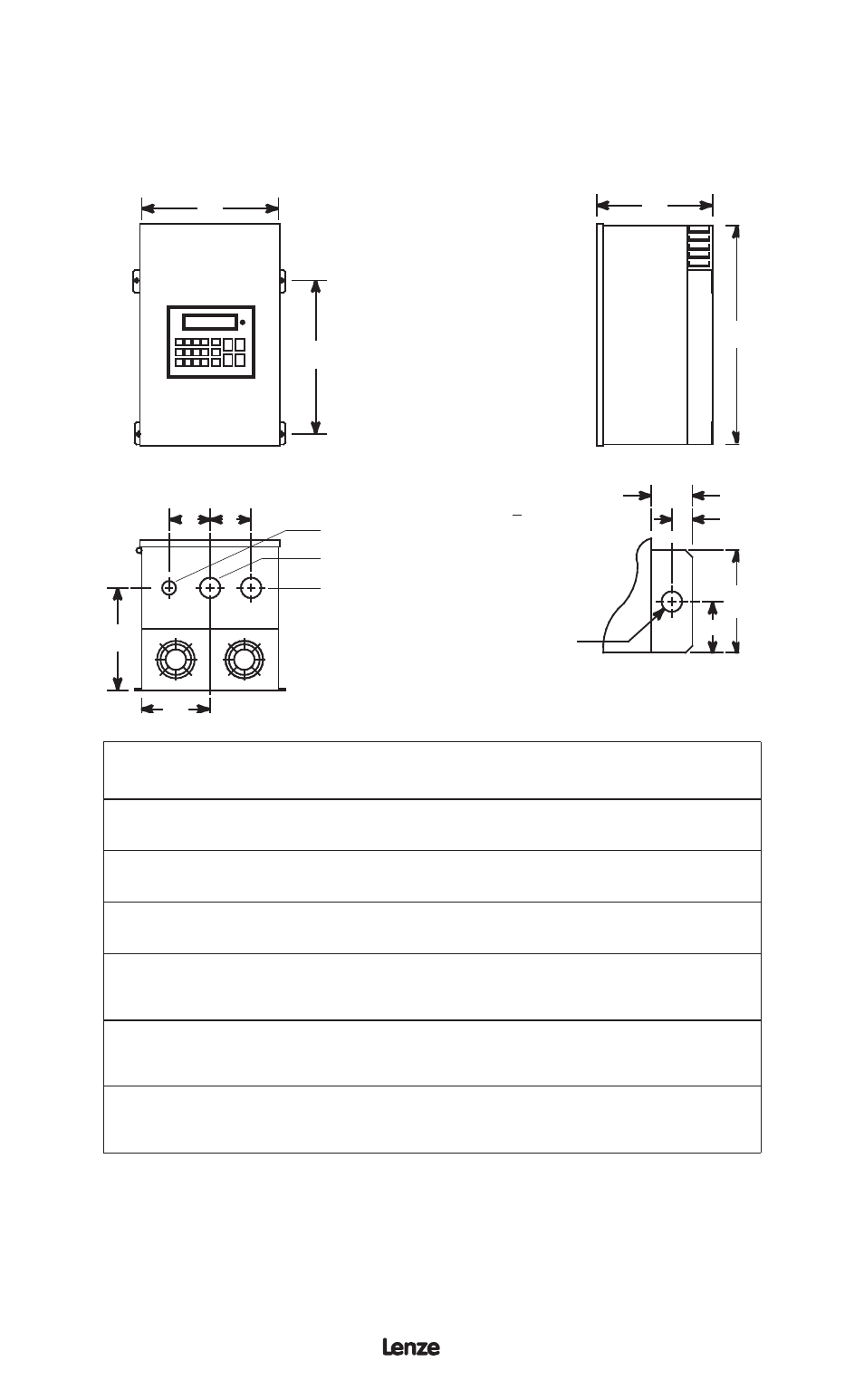

4.5 TYPE 12 DIMENSIONS (Models above 30HP)
The figure and table herein provide the dimensions for MCH Type 12 models rated
above 30 HP at 240/200 Vac AND 60 HP at 480/400 Vac and 590 Vac.
W
Q Q
P
1.13" Dia.
D
H
U
V
3.00"
T
Dia.
Mounting Tab Detail
N
Conduit Holes:
S Dia.
S Dia.
IF W > 14.00"
T = 0.36"
U = 0.68"
V = 0.31"
R
1.50"
HP
(kW)
INPUT
VOLTAGE MODEL H W D N P Q R S
40
(30)
240 / 200 MH2400D 31.00 14.00 11.86 6.00 7.50 2.62 22.50 1.38
50
(37.5)
240 / 200 MH2500D 31.00 14.00 11.86 6.00 7.50 2.62 22.50 1.38
60
(45)
240 / 200 MH2600D 37.00 18.00 13.30 7.50 8.00 3.13 27.00 1.75
75
(55)
480 / 400 MH4750D 37.00 18.00 13.30 7.50 8.00 3.13 27.00 1.75
100
(75)
480 / 400 MH41000D 37.00 18.00 13.30 7.50 8.00 3.13 27.00 1.75
125
(90)
480 / 400 MH41250D 39.00 26.00 13.30 11.50 8.00 4.50 27.00 2.50
