8 13435744_EDBMH01_v13

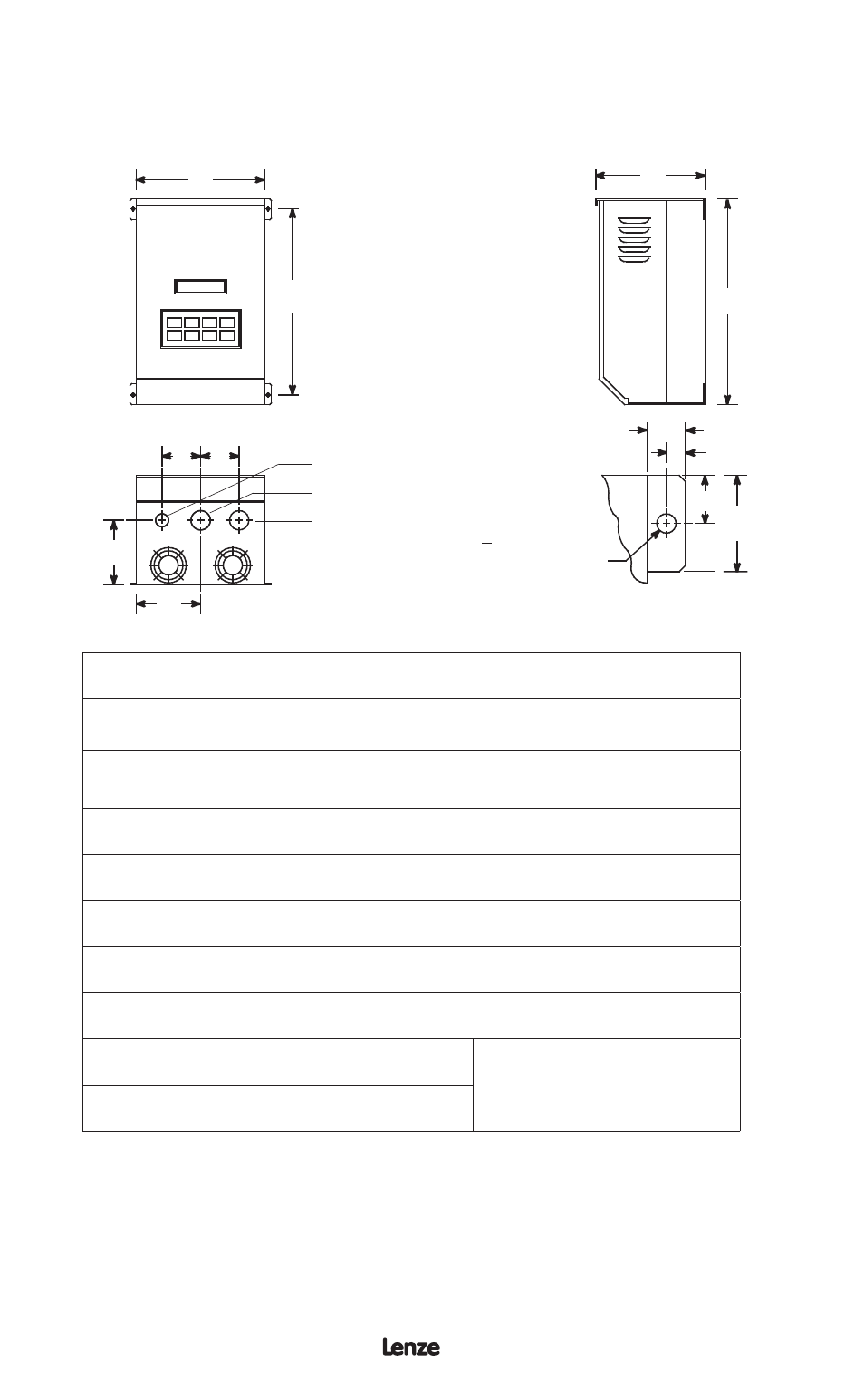

4.2 TYPE 1 DIMENSIONS (Models above 30HP)
The figure and table herein provide the dimensions for MCH Type 1 models rated above
30 HP at 240/200 Vac AND 60 HP at 480/400 Vac and 590 Vac.
W
P
1.13" Dia.
D
H
U
V
3.00"
T
Dia.
Mounting Tab Detail
N
Conduit Holes:
S Dia.
S Dia.
IF W = 13.00"
T = 0.36"
U = 0.68"
V = 0.31"
IF W > 16.64"
See Mounting Tab
Detail in
Section 4.3
R
Q Q
1.50"
HP
(kW)
INPUT
VOLTAGE MODEL H W D N P Q R S
40
(30)
240 / 200 MH2400B 25.00 13.00 10.50 5.56 6.50 2.62 22.00 1.38
50
(37.5)
240 / 200 MH2500B 25.00 13.00 10.50 5.56 6.50 2.62 22.00 1.38
60
(45)
240 / 200 MH2600B 47.00 16.64 11.85 7.14 6.88 3.12 N/A 1.75
75
(55)
480 / 400 MH4750B 29.00 16.64 11.85 7.14 6.88 3.12 N/A 1.75
100
(75)
480/400 MH41000B 29.00 16.64 11.85 7.14 6.88 3.12 N/A 1.75
125
(90)
480 / 400 MH41250B 29.00 24.42 11.85 11.12 6.50 4.50 N/A 2.50
150
(110)
480 / 400 MH41500B 29.00 24.42 11.85 11.12 6.50 4.50 N/A 2.50
200
(150)
480 / 400 MH42000B 29.00 36.66 11.85
Refer to Section 4.3
250
(185)
480 / 400 MH42500B 29.00 36.66 11.85
