Machine Operation
4. Install center (slave) lift cylinder lockups. Install pin assembly to lock each in place.
NOTICE
dO nOT fold planter into transport position without lift cylinder lockups
installed or uncontrolled planter settling can damage equipment.

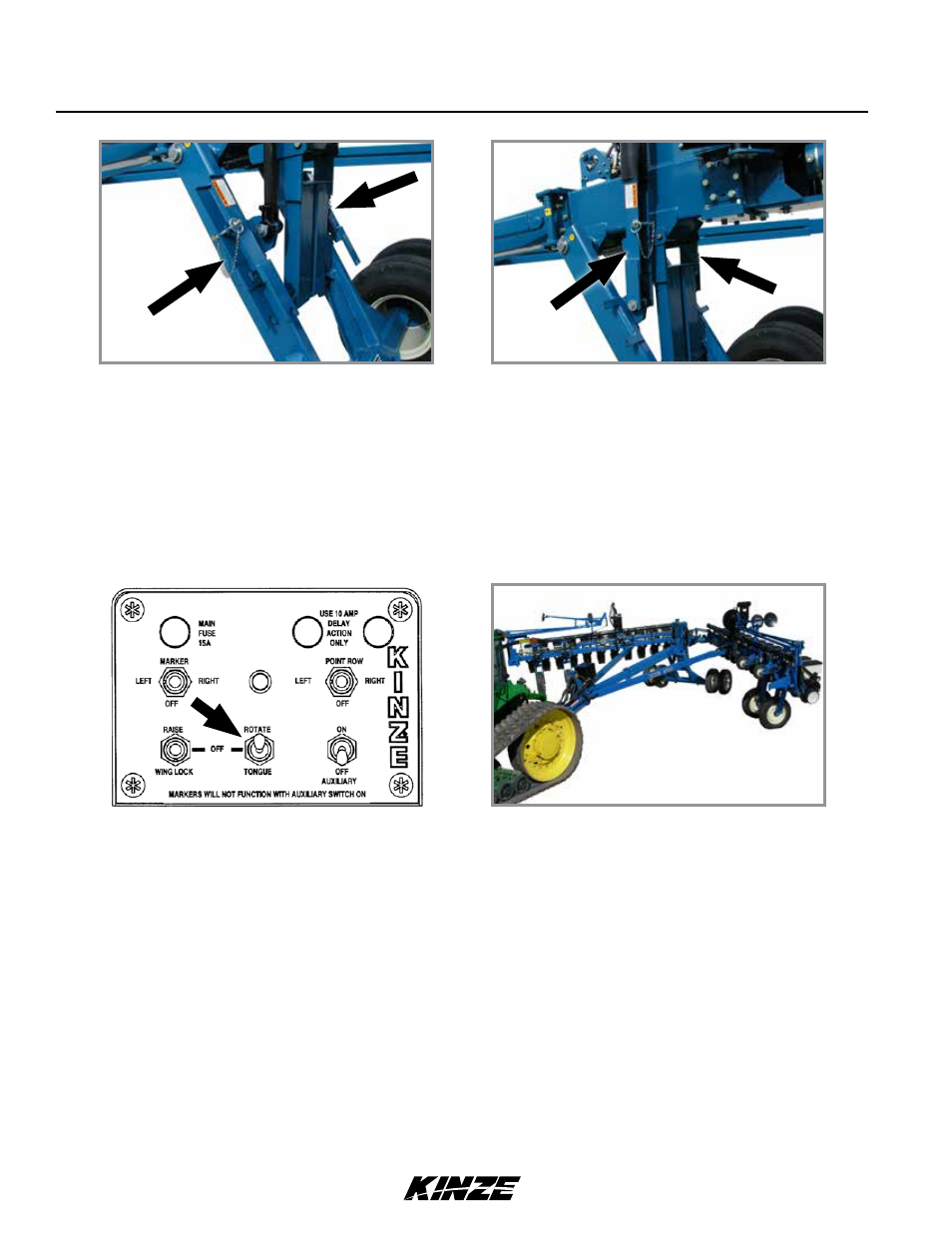

Safety lockups in storage position Safety lockups in transport position
5. Lower planter onto center lift (slave) cylinder lockups.
6. Hold ROTATE/TONGUE switch in rOTaTe and operate hydraulic control to fold planter. Slowly idle tractor forward
as you fold planter, allowing center axle tires to remain stationary and wing tires to roll in a continuous arc with
minimal side loading on tires or their mounting structure. Hooks on wing ends should pass over planter hitch and
contact stops on draft links.
planter folding
