Model 3700

M0233-01

Rev. 10/11

5-39

Lubrication and Maintenance

Light packages supplied on Model 3700 Front Folding Planters meet ASABE Standards. Check with tractor
manufacturer for correct wiring harness to be wired into lights on your tractor, .

*Optional customer-supplied auxiliary lights and wires may be wired into existing plug terminals.

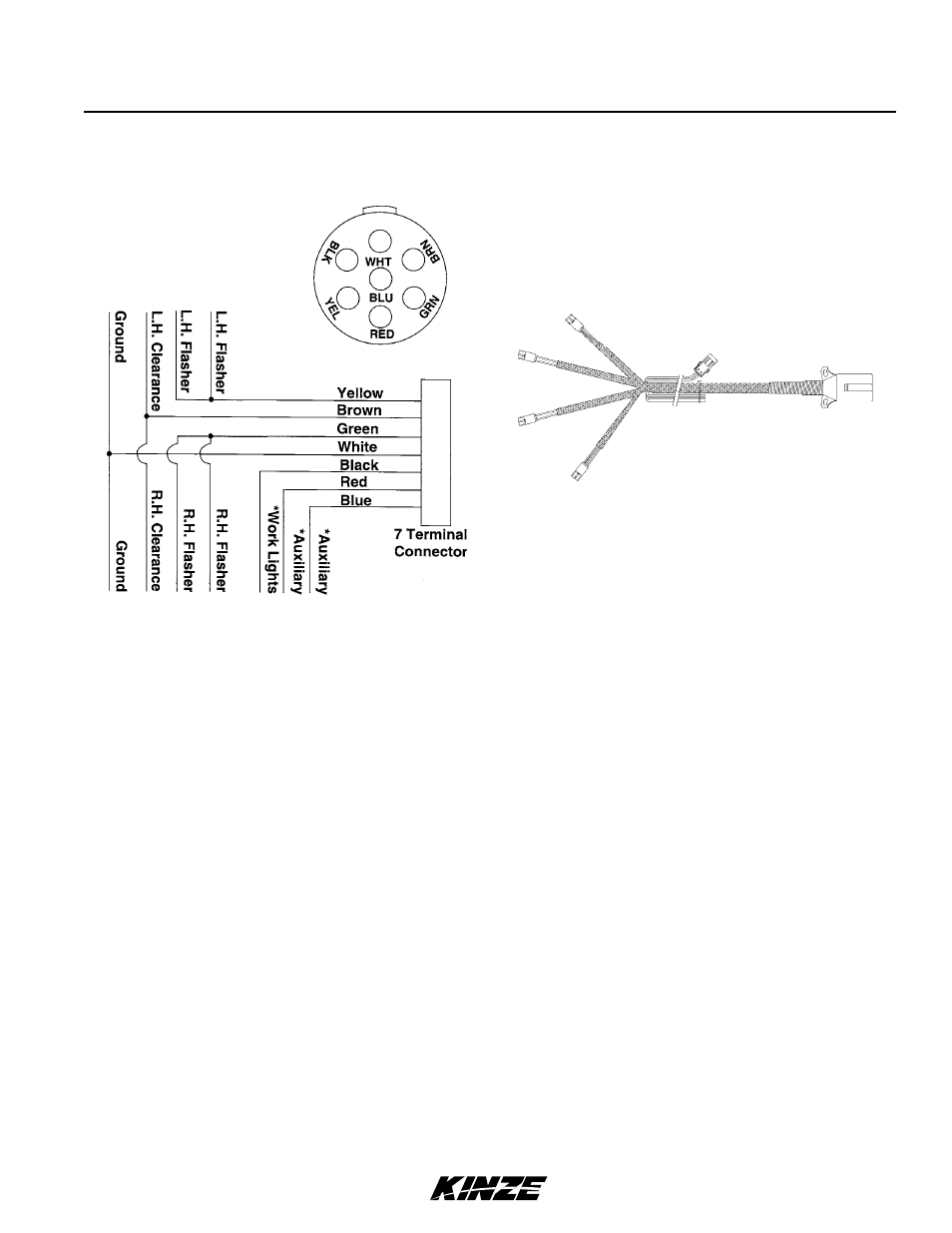

eLeCTriCaL wiring diagraM fOr LighT paCKage
