Model 3700 M0233-01
Rev. 7/14 5-11
Lubrication and Maintenance
TOrqUe vaLUeS- pneumatic down pressure
Diameter Torque Value
⅛ " NPT 120 in-lb Maximum
½ "-13 180 in-lb Maximum
¾ "-16 180 in-lb Maximum
nOTe: Use these torque values with pneumatic
down pressure components.

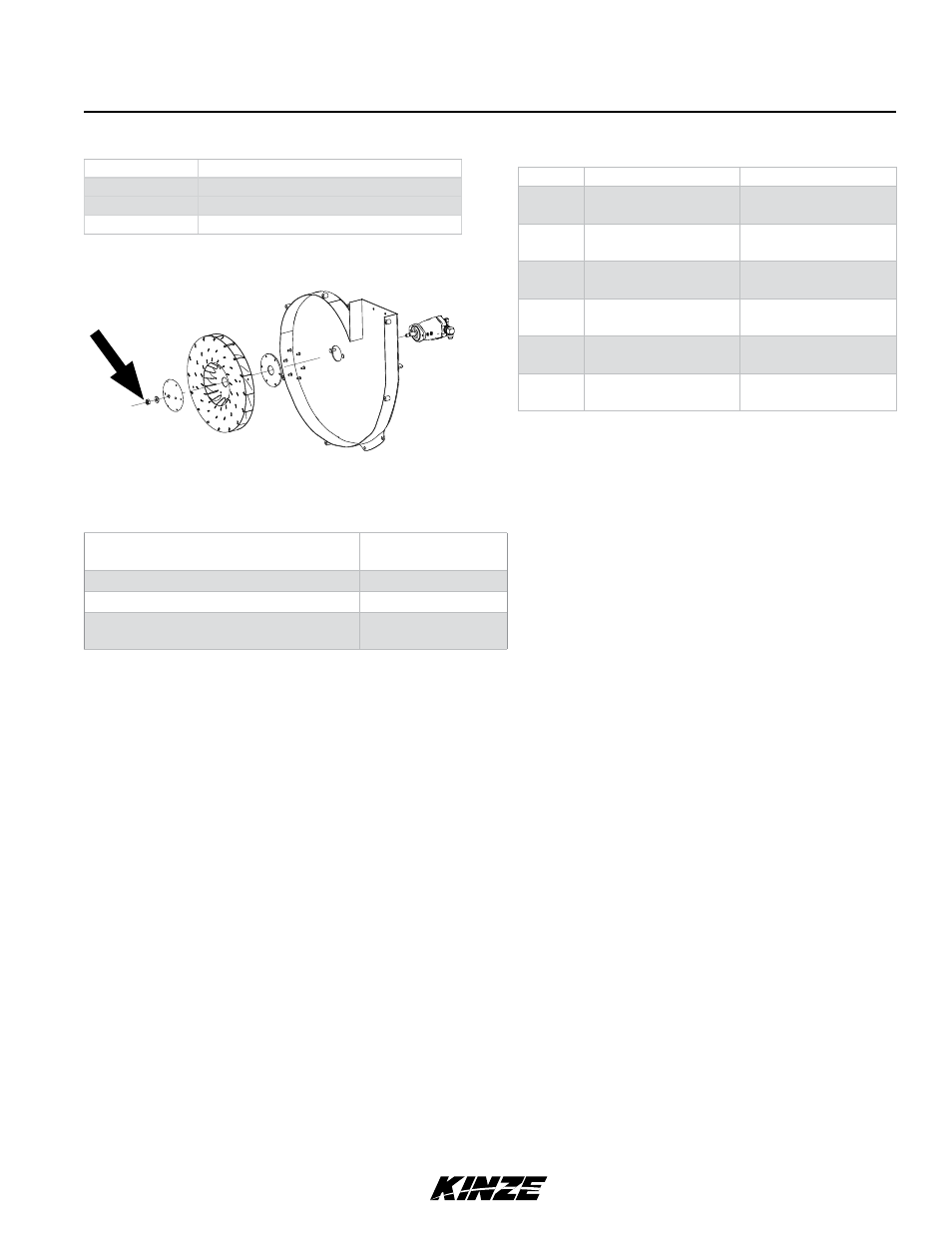

nOTe: Torque edgevac fan impeller assembly to
motor shaft ⅝"-18 hex jam nut 50 ft-lb (67.8 n-m).
SpeCiaL TOrqUe vaLUeS & inSTrUCTiOnS
Row unit parallel linkage bushing
hardware
130 ft-lb (176 Nm)
5/8 " No till coulter spindle hardware 120 ft-lb (162 Nm)
Transport Tire Inner Budd Nuts** 315 ft-lb (427 Nm)
Transport Tire Outer Budd Nuts**
1075 ft-lb (1458
Nm)
**nOTe: Loosen outer budd nut first, then loosen
inner budd nut.
Cylinder rod piston retaining nut Torque Chart
non-nylock nut nylock nut
½"-20
55-70 ft-lb
(75-95 N-m)
45-55 ft-lb
(61-75 N-m)
¾"-16
115-125 ft-lb
(156-169 N-m)
100-115 ft-lb
(136-156 N-m)
⅞ "-14
150-180 ft-lb
(203-244 N-m)
130-150 ft-lb
(176-203 N-m)
1"-14
275-330 ft-lb
(373-447 N-m)
250-275 ft-lb
(339-373 ft-lb)
1⅛"-12
300-375 ft-lb
(407-508 N-m)
275-300 ft-lb
(373-407 N-m)
1¼"-12
300-375 ft-lb
(407-508 N-m)
275-300 ft-lb
(373-407 N-m)
