Lubrication and Maintenance

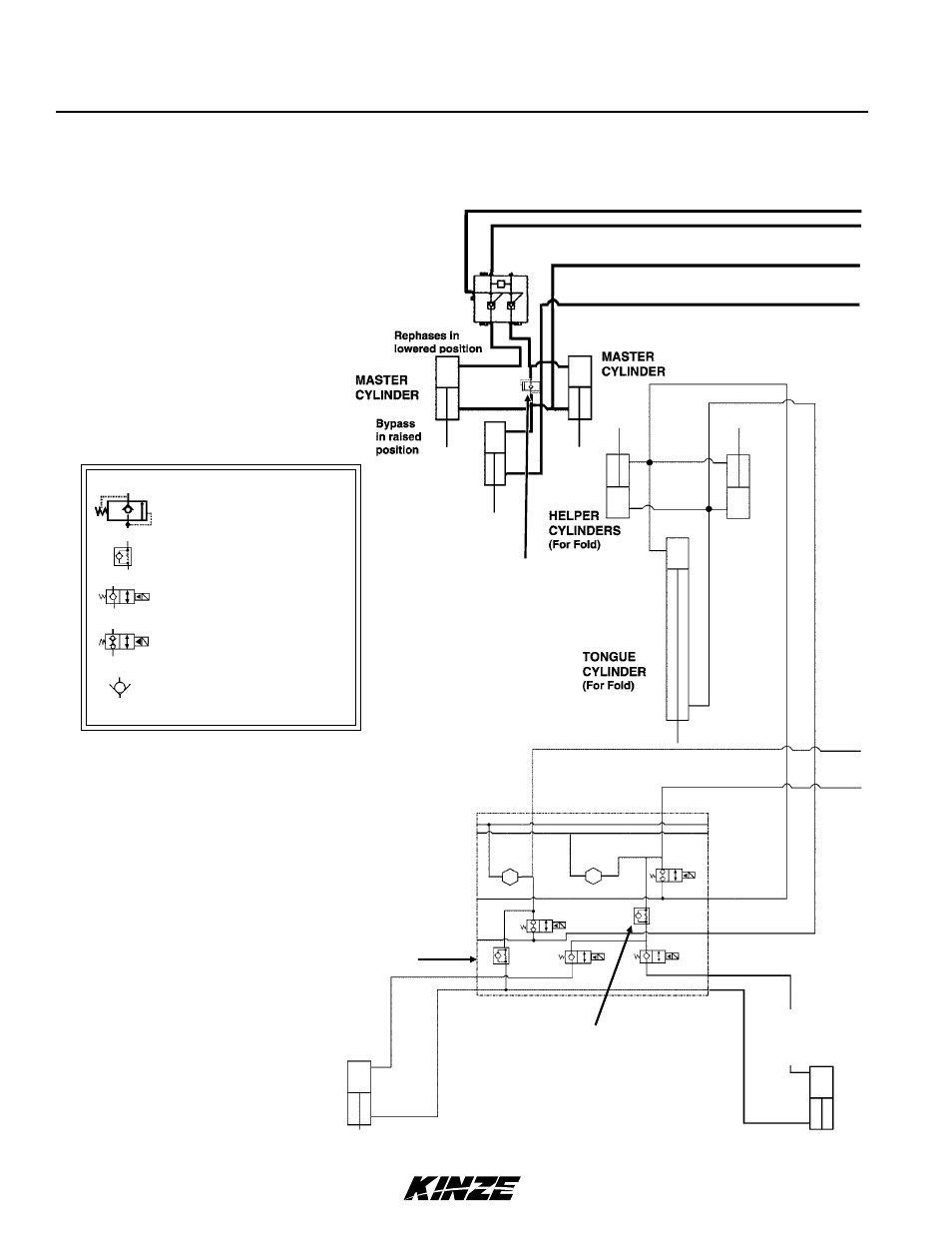

hydraULiC SySTeM SCheMaTiC (36 rOw 20")
r.h.
Marker Speed Lower
Marker Speed raise
A1 B1
A8
B8
V6 V5
V4
B7
A9
B9
A7
V8
V3
B5
A5
V2 V1
V7
B6
A6
B4
A4
pilot Operated Check valve
r.h.
MarKer
CyLinder
pressure relief valve
row Marker flow Control valve
Solenoid valve
holds Load in One direction
Solenoid valve
holds Load in both directions
Check valve
aSSiST
CyLinder
vaLve bLOCK
On r.h. wing
L.h.
MarKer
CyLinder
B8
vaLve bLOCK
On r.h. wheeL
MOdULe
