Model 3700 M0233-01
Rev. 10/11 5-43
Lubrication and Maintenance

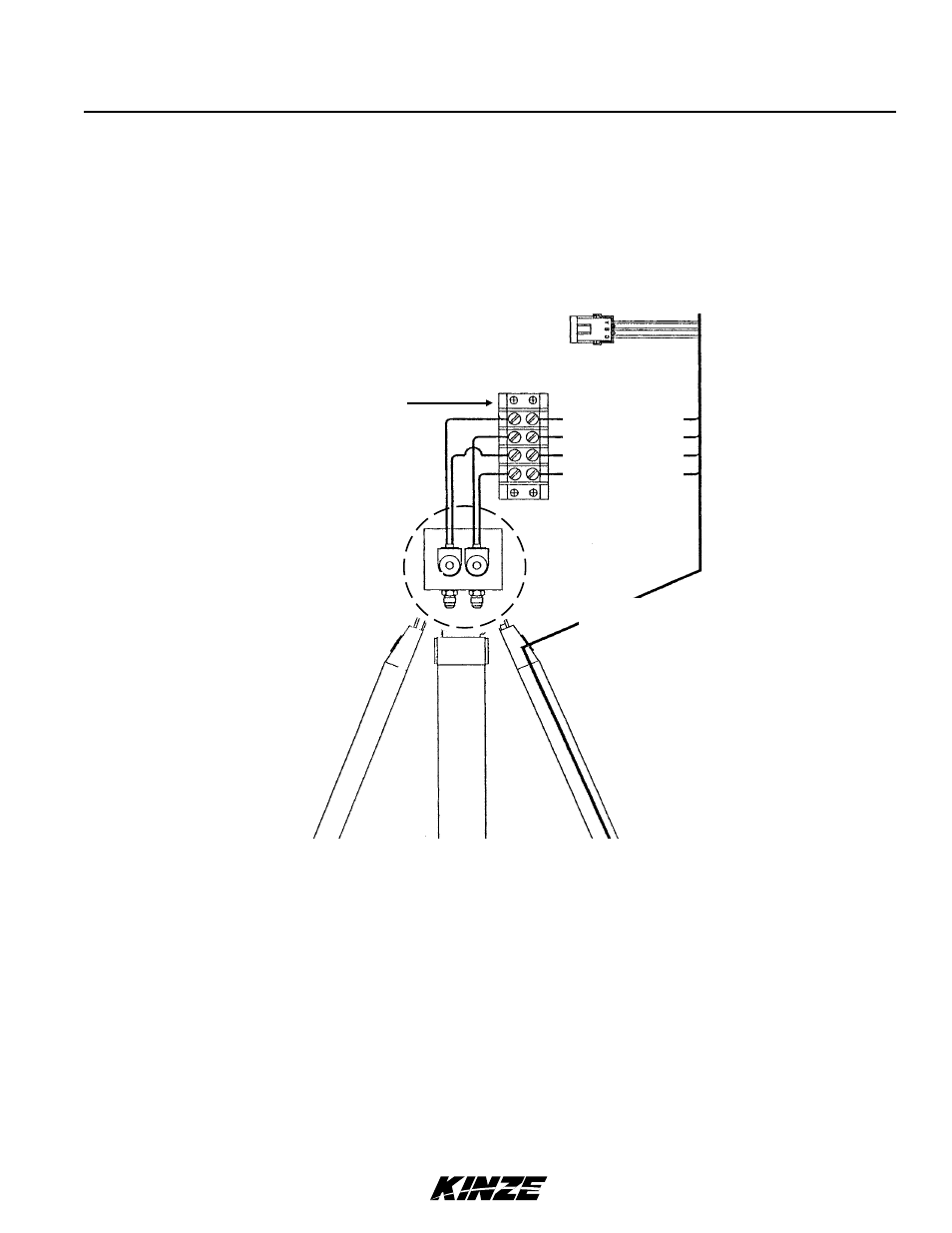

vaLve bLOCK - LOCaTed On hiTCh
1. ORANGE/RED - Pin “A” (Tongue Retract/Extend) - Port V9
2. ORANGE/RED - Pin “A” (Tongue Retract/Extend) - Port V10
3. BLACK/RED - Pin “C” (Ground)
Terminal
Strip
3. BLACK/RED
2.ORANGE/RED
V10 V9
3. BLACK/RED
1.ORANGE/RED
To Valve Block
On R.H. Wing
