Bassoon Installation Guide Technical Specifications
MAN-BASIG (Ver. 1.502)
www.elmomc.com
65

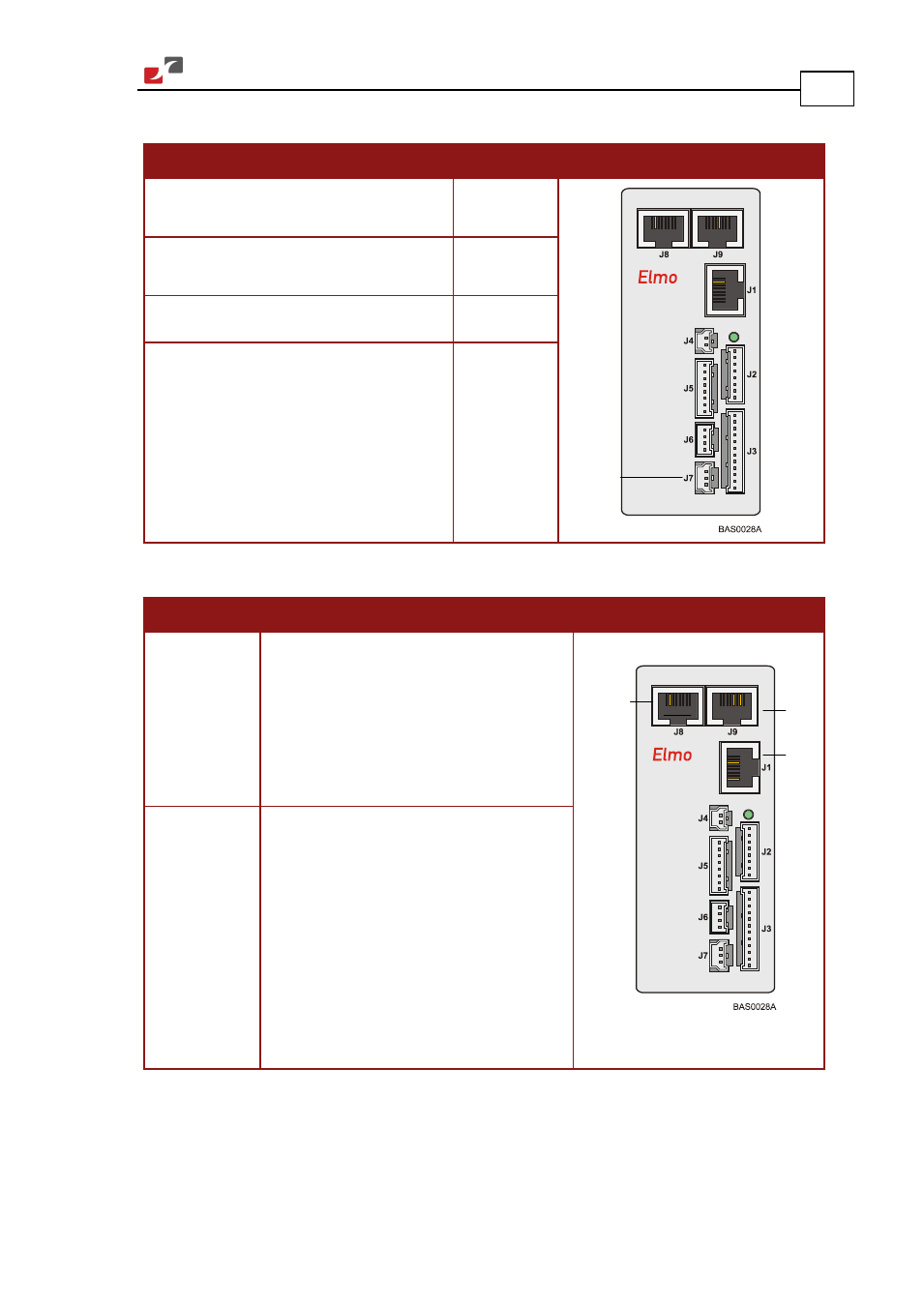

4.8.3. Analog Input (J7)
Feature Details Connector Location
Maximum operating differential mode
voltage ±10 V
Maximum absolute differential input
voltage ±16 V
Differential input resistance 3 kΩ
Analog input command resolution 14-bit inputs
4.9. Communications
Specification Details Connector Location
RS-232 Signals:
• RxD , TxD , Gnd
• Full duplex, serial communication for
setup and control.
• Baud Rate of 9,600 to 115,200
bits/sec.
CAN CAN bus Signals:
• CAN_H, CAN_L, CAN_GND
• Maximum Baud Rate of 1 Mbits/sec.
Version:
• DS 301 V4.01
Device Profile (drive and motion control):
• DS 402
CAN
CAN
RS-232
Analog
Input
