Bassoon Installation Guide Installation
MAN-BASIG (Ver. 1.502)
www.elmomc.com
24

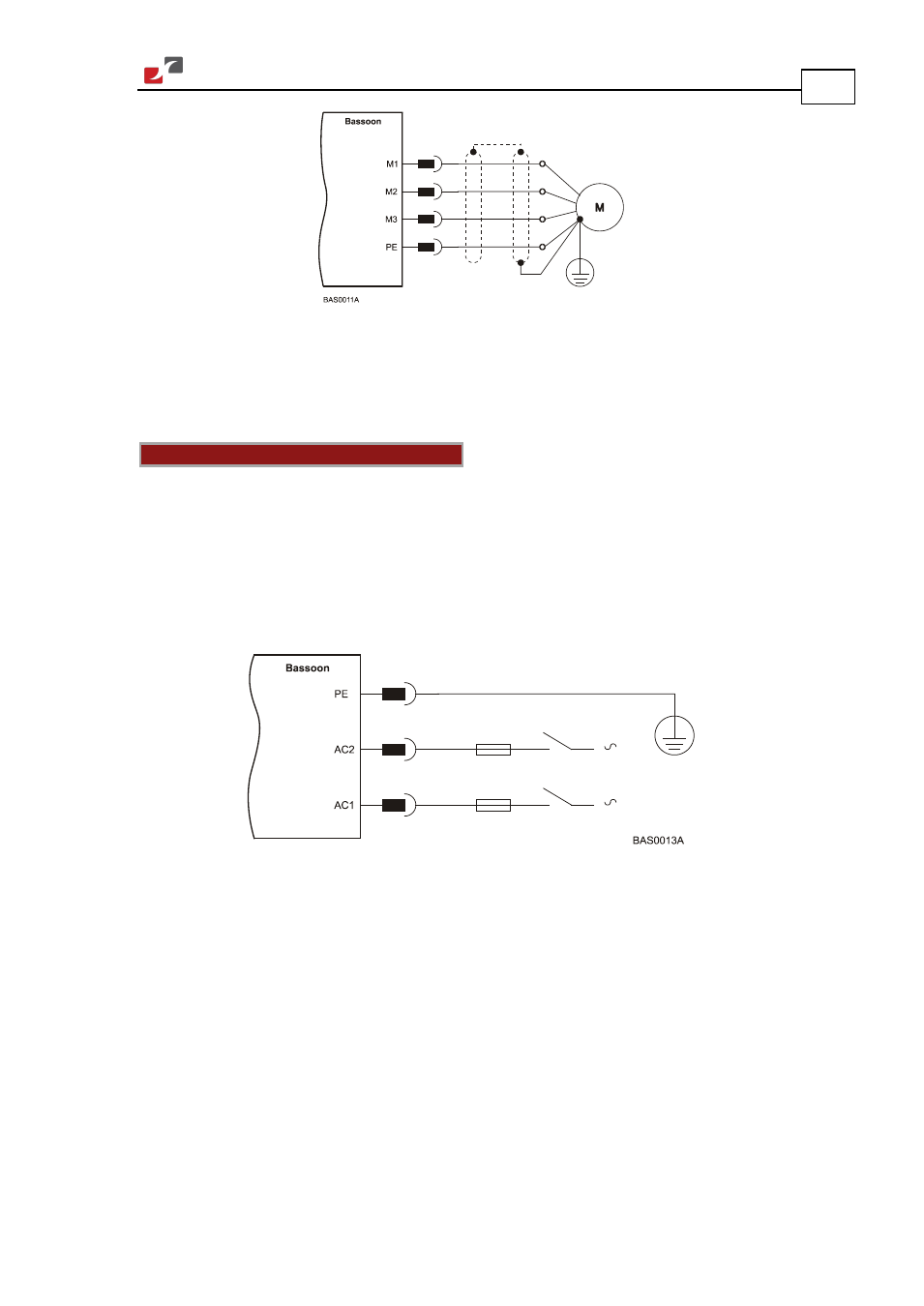

Figure 7: AC Motor Power Connection Diagram
3.5.2.2. Connecting the Main Power Cable
Connect the main power supply cable to the AC1, AC2 and PE terminals of the main power
connector.
Notes for connecting the AC power cable:
• For best immunity, a shielded (not twisted) cable is recommended (not mandatory) for the
AC power supply cable. A 3-wire shielded cable should be used. The gauge is determined by
the actual current consumption of the motor.
• Connect the two power wires (Neutral and Phase) to the AC power leads of the source.
• For safety requirements, the third wire must be used for the protective earth connection
(connected to the PE terminal).
Figure 8: Main Power Supply Connection Diagram
