Bassoon Installation Guide Installation
MAN-BASIG (Ver. 1.502)
www.elmomc.com
17
3.1.3. AC Power Requirements
Below are the Bassoon’s AC power requirements:
Component Single-Phase Supply Voltage
Circuit breaker current rating 200% to 300% of drive current
Circuit breaker voltage rating 230 VAC
Contactor Up to 200% of drive current
3.2. Unpacking the Drive Components
Before you begin working with the Bassoon system, verify that you have all of its components,
as follows:
• The Bassoon servo drive
• The Composer software and software manual
• The Bassoon cable kit (if ordered separately)
The Bassoon is shipped in a cardboard box with Styrofoam protection.
To unpack the Bassoon:
1. Carefully remove the servo drive from the box and the Styrofoam.
2. Check the drive to ensure that there is no visible damage to the instrument. If any damage
has occurred, report it immediately to the carrier that delivered your drive.
3. To ensure that the Bassoon you have unpacked is the appropriate type for your

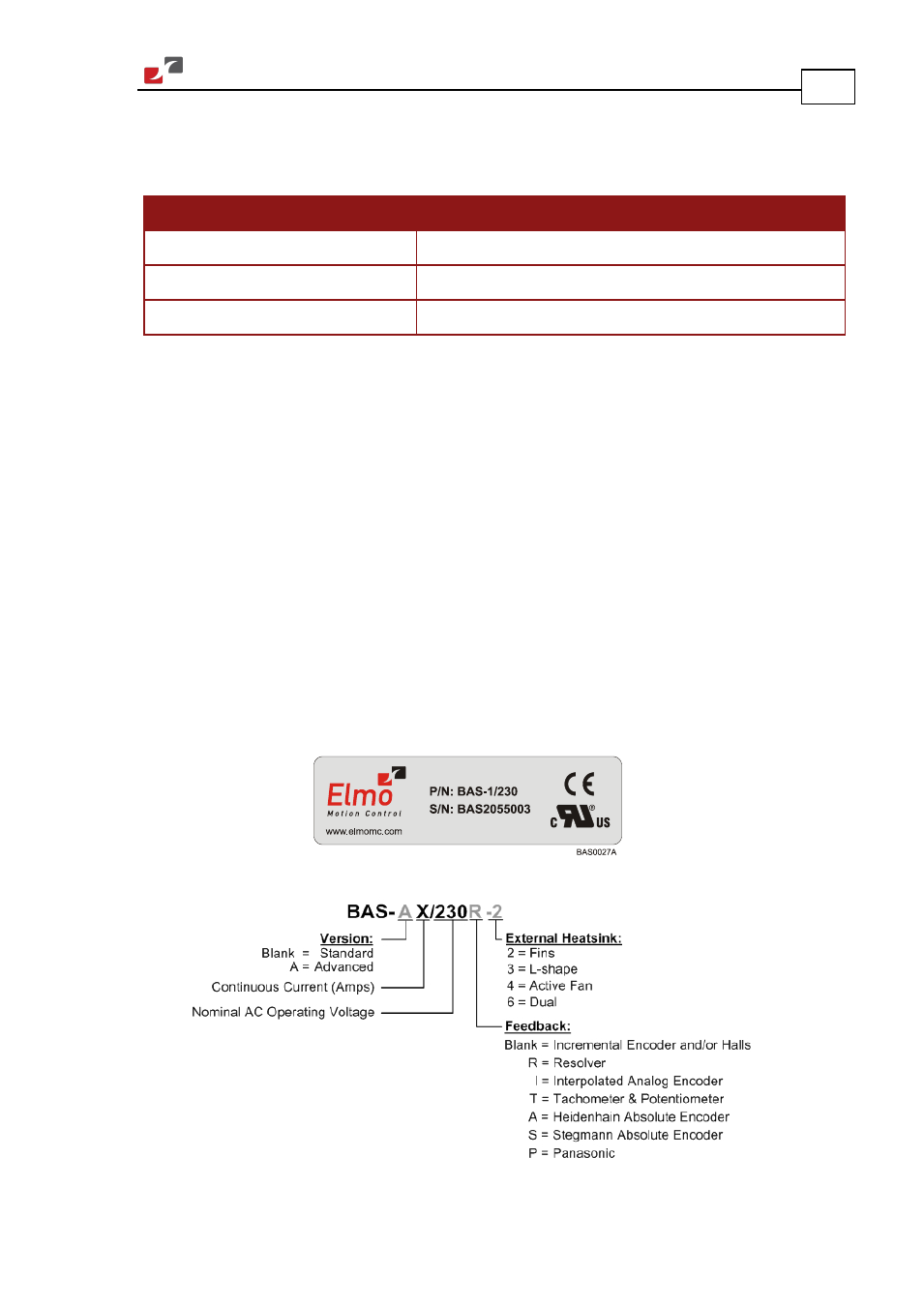

requirements, locate the part number sticker on the side of the Bassoon. It looks like this:
The P/N number at the top gives the type designation as follows:
4. Verify that the Bassoon type is the one that you ordered.
