ElmoMC AC Input Digital Servo Drives-Bassoon User Manual
Page 32
Bassoon Installation Guide
Installation
MAN-BASIG (Ver. 1.502)
32

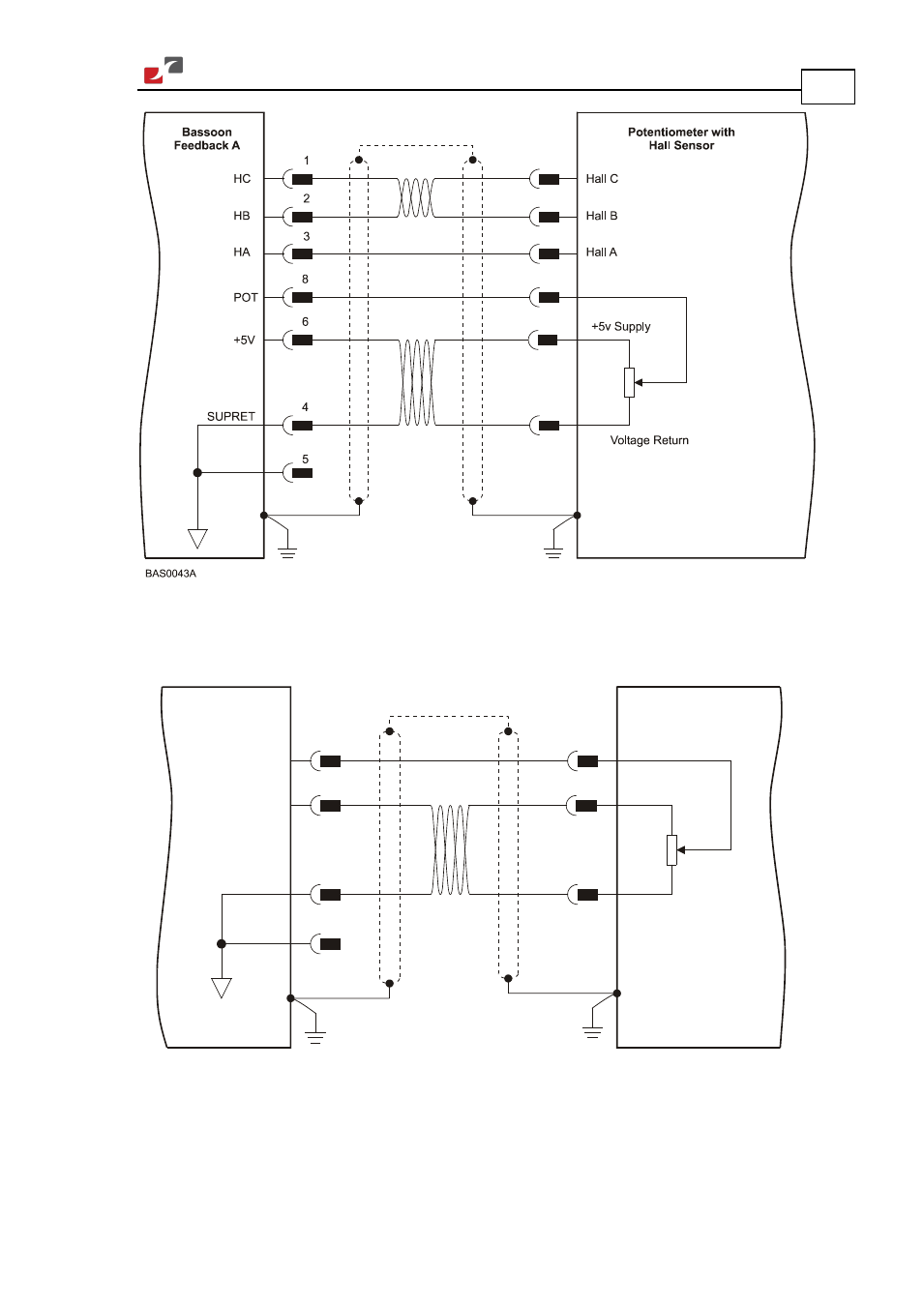

Figure 17: Main Feedback – Potentiometer Feedback with Digital Hall Sensor Connection
Diagram for Brushless Motors
Bassoon
Feedback A
8
+5v Supply
Voltage Return
4
+5V
SUPRET
BAS0044A
6
Potentiometer
POT
5
Figure 18: Main Feedback – Potentiometer Feedback Connection Diagram for Brush Motors
and Voice Coils
