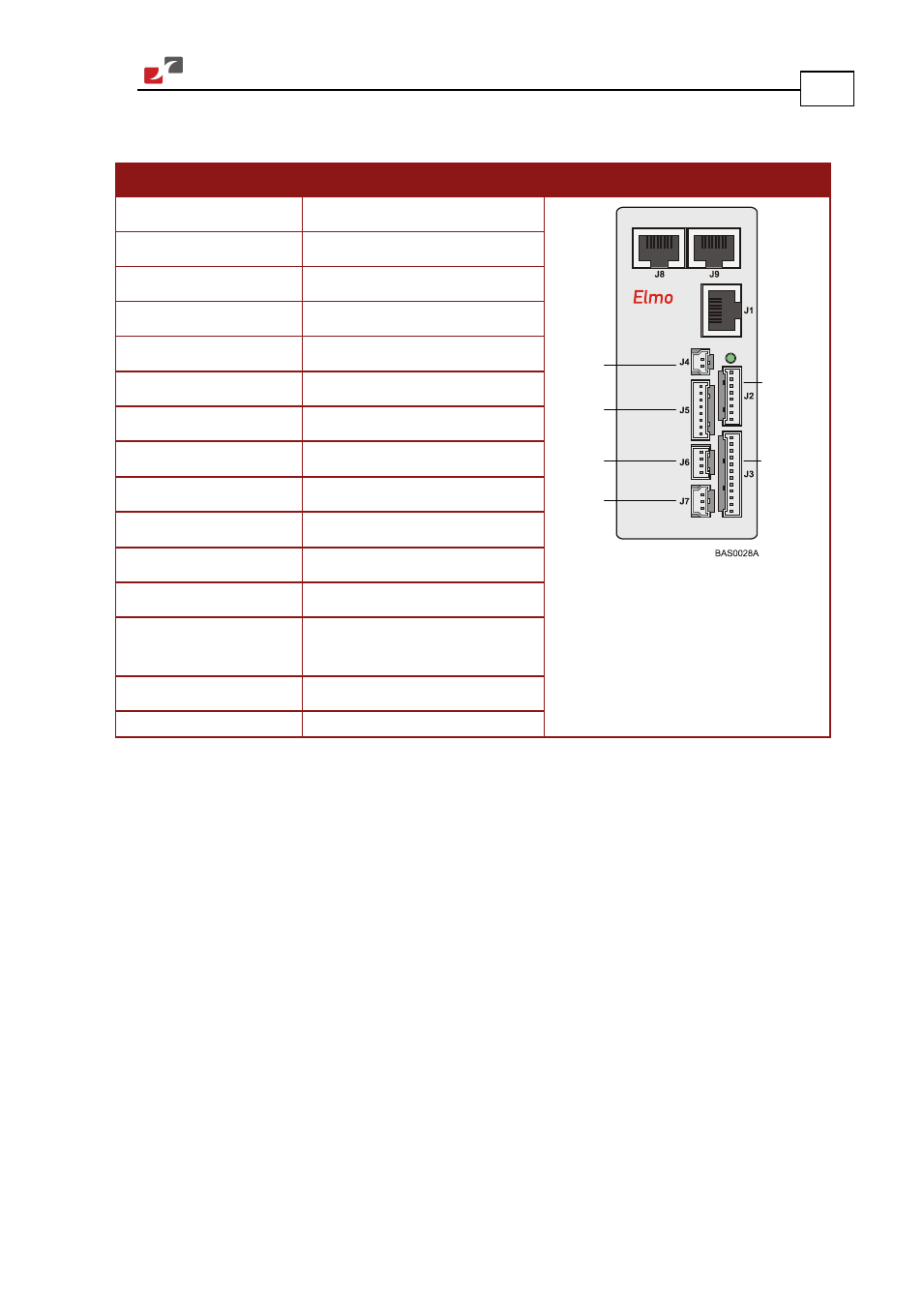

4.4.2. Control and Feedback Connector Specifications
Feature Details Connector Location
Product name Sherlock
Manufacturer Molex
Wire size 24, 26, 28, 30 AWG
Maximum current 2 A
Temperature range -40° to 105° C (-40° to 221° F)
Plating contact Tin/Lead (Sn/Pb)
Maximum voltage 125 V
Contact resistance < 20 mΩ
Withstanding voltage 500 VAC
Insulation resistance > 1000 MΩ
Terminal contact Phosphor bronze
UL files E29179, UL 94 V-0
Cable connector Molex 35507-XX00, where XX is
the number of leads
Hand crimper Molex 63811-1200
Crimp terminal Molex 50212
Auxiliary
Power
supply
Digital
Output
Analog
Input
Digital
Input
Auxiliary
Feedback
Main
Feedback
