4.4. Bassoon Connectors
The following connectors are used for wiring the Bassoon.
4.4.1. Connector Types

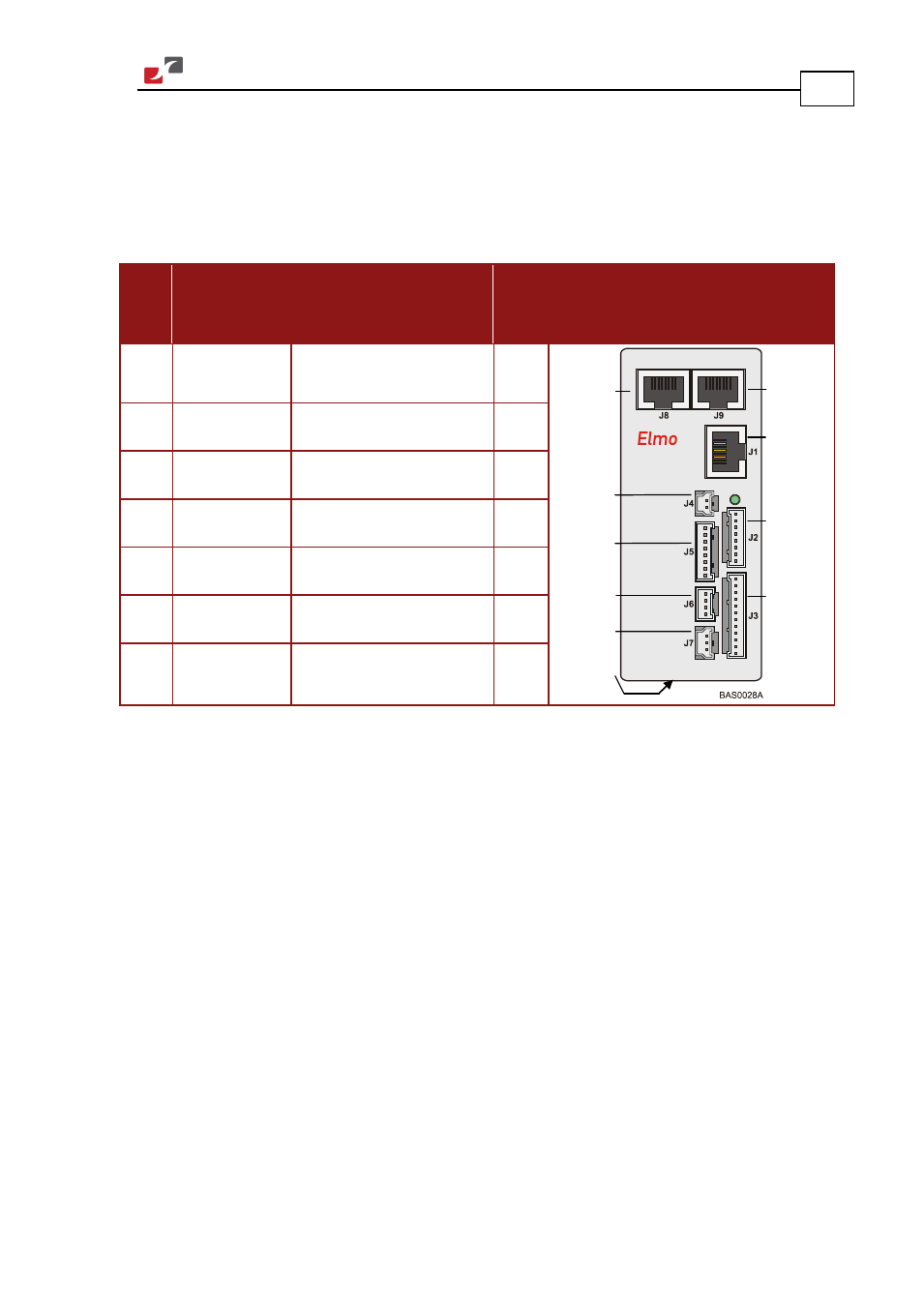

The table below shows the connector panel of the Bassoon.
Pins Type Connector Maker & No.
/
Mating Plug (on Cable)
Port Connector Location
8 RJ-45 RJ-45 jack
mates with RJ-45 plug J1,
J8, J9
8 2 mm Pitch Molex 35363-0800
mates with 35507-0800
J2, J5
12 2 mm Pitch Molex 35363-1200
mates with 35507-1200
J3
2 2 mm Pitch Molex 35363-0200
mates with 35507-0200
J4
4 2 mm Pitch Molex 35363-0400
mates with 35507-0400
J6
3 2 mm Pitch Molex 35363-0300
mates with 35507-0300
J7
7 5.08 mm Pitch
Terminal Block
Phoenix MSTBA 2.5/7-G-5.08
with MSTB 2.5/7-ST-5.08
power
Auxiliary
Power
Supply
Auxiliary
Feedback
Main
Feedback
Main
Power
CANopen
RS232
Digital
Input
Digital
Output
Analog
Input
CANopen
