3.5.6. Main and Auxiliary Feedback Combinations
The Main Feedback is always used in motion control devices whereas the Auxiliary Feedback is
often, but not always used. The Auxiliary Feedback port, FEEDBACK B (J2), can be used in
combination with the Main Feedback port, FEEDBACK A (J3). Feedback B can be set by software
as follows:

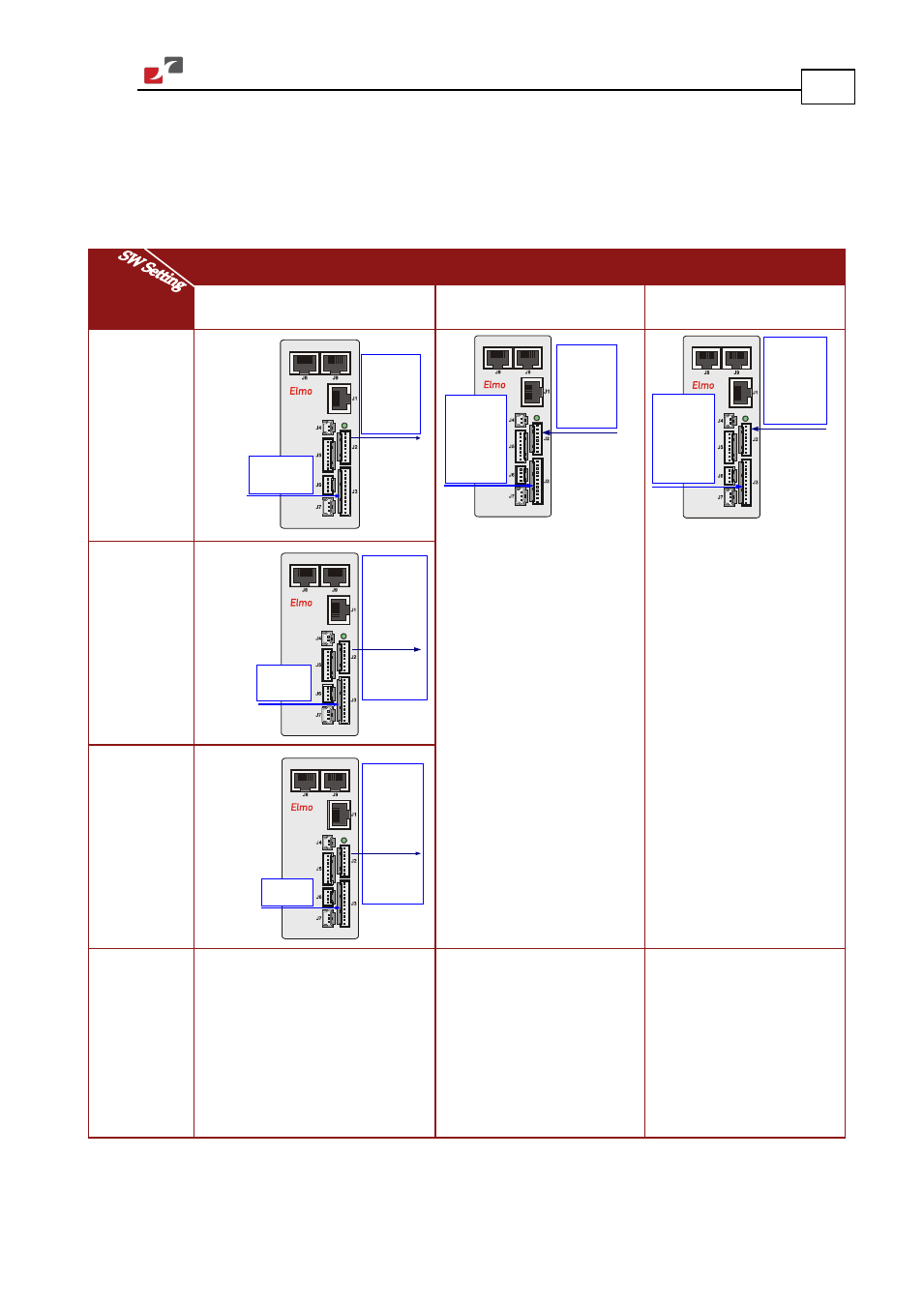

Table 6: Main Feedback –Auxiliary Feedback Combinations
Feedback
A (J3)
Feedback B (J2)
YA[4] = 4 YA[4] = 2 YA[4] = 0
Incremental
Encoder
Input
B - output
Differential
and
Buffered
Main
Encoder
Signal
Incremental
Encoder
A - input
A - input
Incremental
Encoder
or
Analog
Encoder
or
Resolver
B - input
Differential
or
Single-
ended
Auxiliary
Incremental
Encoder
B - input
Differential
or
Single-
ended
Pulse &
Direction
Commands
A - input
Incremental
Encoder
or
Analog
Encoder
or
Resolver
Interpolated
Analog
(Sin/Cos)
Encoder
Input
B - output
Analog
Encoder
Position
Data
Emulated in
Incremental
Encoder
Format
(signals are
quadrature,
differential
& buffered)
Analog
Encoder
A - input
Resolver
Input
B - output
Resolver
Position
Data
Emulated in
Incremental
Encoder
Format
(signals are
quadrature,
differential
& buffered)
Resolver
A - input
Typical
Applications  Any application where the main
encoder is used, not only for the
drive, but also for other purposes
such as position controllers
and/or other drives.
 Analog Encoder applications
where position data is required in
the Encoder’s quadrature format.
 Resolver applications where
position data is required in the
Encoder’s quadrature format.
Any application where two
feedbacks are used by the
drive.
Port B serves as an input for the
auxiliary incremental encoder
(differential or single-ended).
For applications such as
Follower, ECAM, or Dual Loop.
Port B serves as an input for
Pulse & Direction commands
(differential or single-ended).



