3.3. Assembling the Heatsink
When an external heatsink device is required, attach it with four screws to the left side of the
Bassoon, as depicted in the following diagrams.
BAS0033A
BAS0041A-DWG

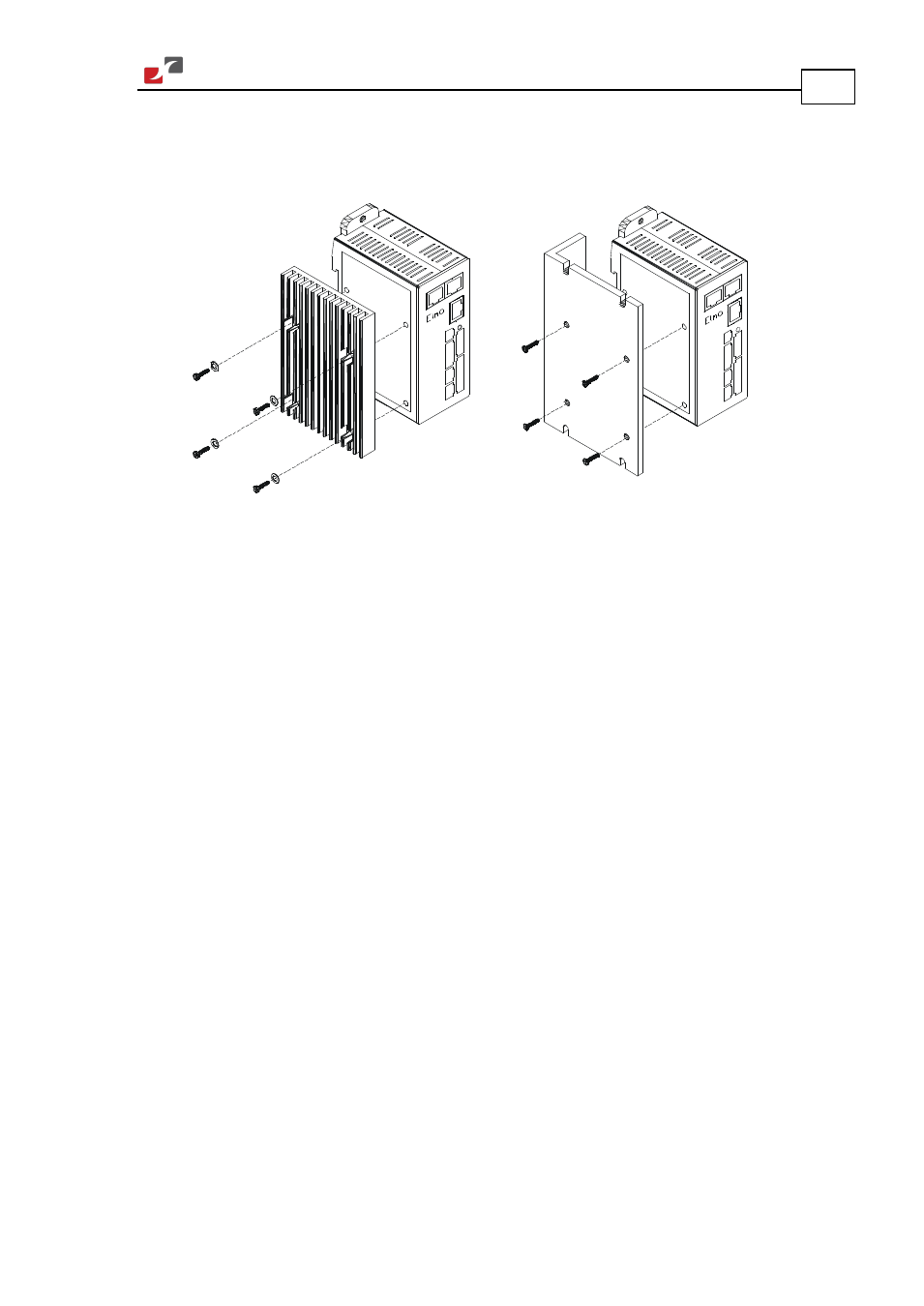

Figure 3: Attaching the Heatsink
To mount the finned heatsink use M4 screws and spring washers. To mount the L-shaped
heatsink use conical head M4 screws.
3.4. Mounting the Bassoon
The Bassoon has been designed for two standard mounting options:
• Mounting on a DIN rail
• Attaching directly to a wall with screws
3.4.1. Mounting on a DIN Rail
At the top rear of the Bassoon, a horizontal groove lets you quickly and easily snap the drive
onto a DIN rail in your work area.
To mount the Bassoon on a DIN rail:
1. If the mounting tab is attached to the top of the Bassoon, remove it by pushing it down and
slipping it out of the slot (see the figure below).
2. Mount the upper slit on the back of the Bassoon on the upper edge of the DIN rail.
3. Tilt the bottom of the Bassoon towards the bottom of the DIN rail until you hear a click.
