Bassoon Installation Guide Installation
MAN-BASIG (Ver. 1.502)
www.elmomc.com
44
3.5.7.3. Analog Input (Port J7)
Notes for connecting the analog input cable:
• Use 24, 26 or 28 AWG twisted pair shielded cable.
• Connect the cable shield to the ground near the signal source (controller) according to the
manufacturer’s recommendations.
Pin Signal Function Pin Position
1 ANLIN1+ Analog input 1+
2 ANLIN1- Analog input 1-
3 ANLRET Analog ground
Table 14: Analog Input Cable Pin Assignments
B
as
so
on
ANLIN1+
ANLIN1-
ANLRET
1
2
3

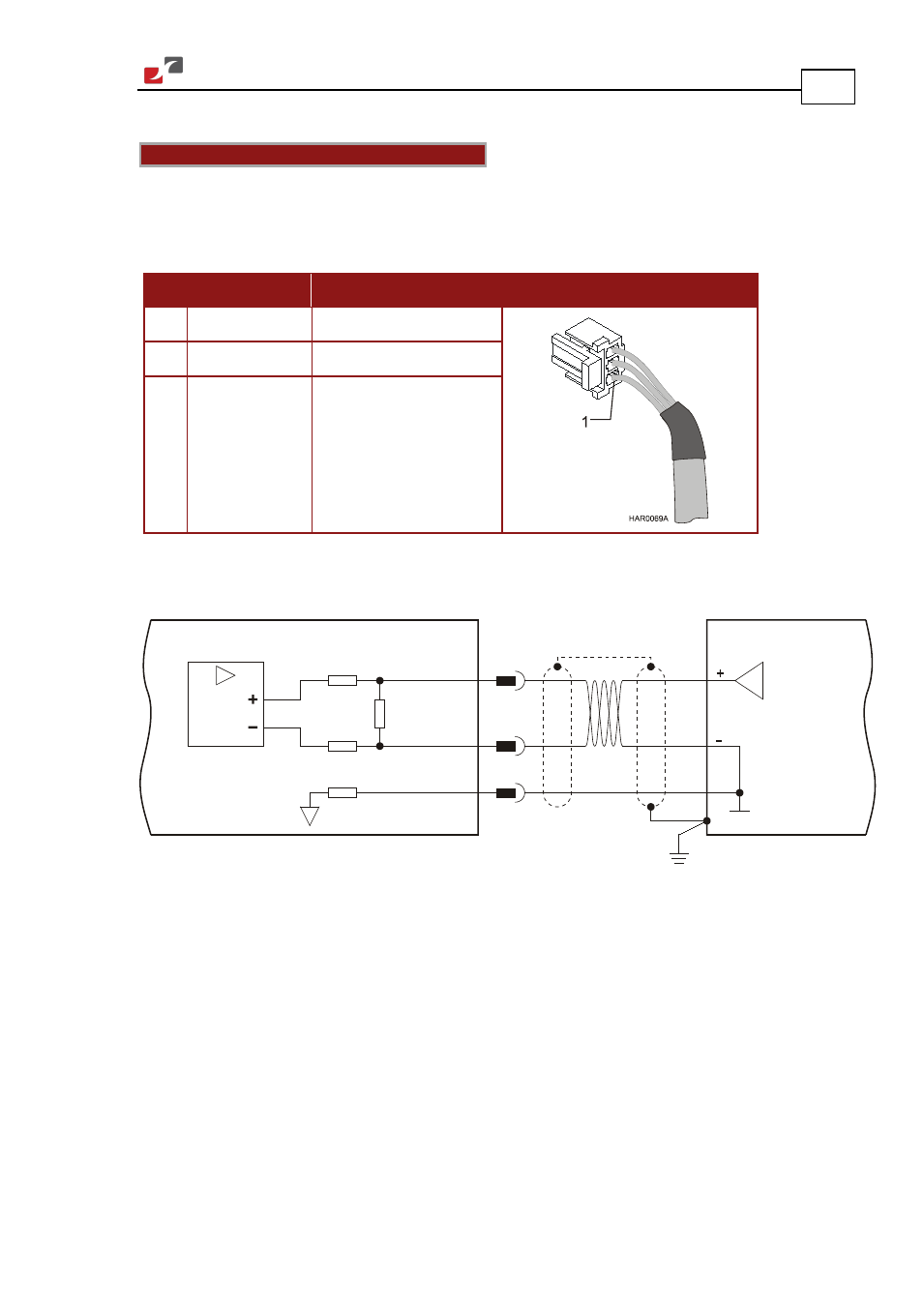

Single-Ended Source Analog Inputs - J7
BAS0022A
Figure 28: Analog Input with Single-Ended Source
