Bassoon Installation Guide Installation
MAN-BASIG (Ver. 1.502)
www.elmomc.com
19

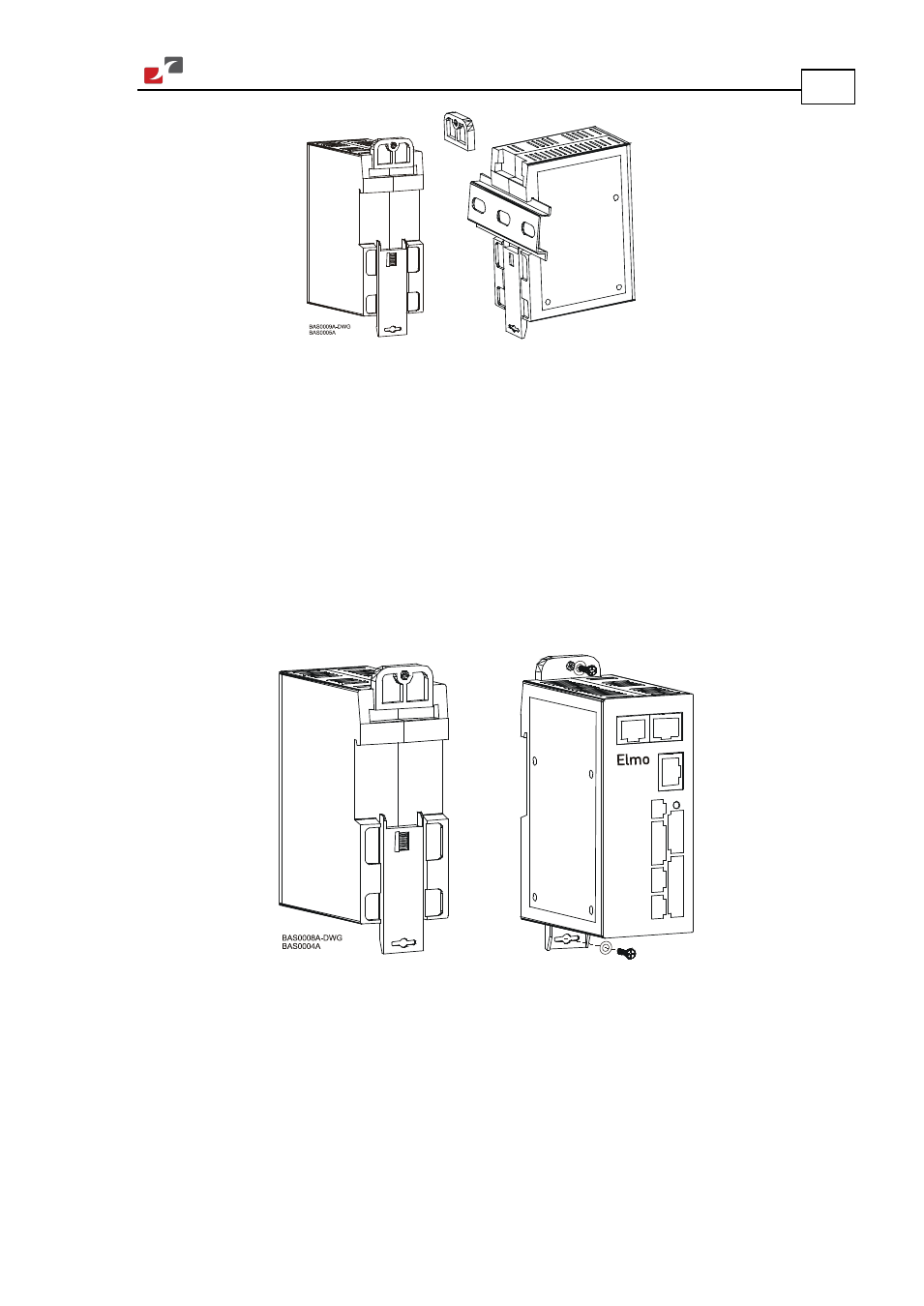

Figure 4: Mounting the Bassoon on a DIN Rail
3.4.2. Mounting Directly onto a Wall
The mounting strips at the back of the Bassoon enable it to be screwed directly into a wall. If it
is not already assembled in the upper slot in the back of the Bassoon, assemble the upper
mounting tab now.
To mount the Bassoon onto a wall:
1. On the back of the drive, fully extend the top mounting strip so that the ends with the
holes are exposed. (The bottom strip is delivered already extended.)
2. Mount the Bassoon vertically onto the wall with two M4 round head screws and washers,
one through the top hole of the mounting strip and one at the bottom.
Figure 5: Extending the Mounting Strips and Attaching the Screws
