ElmoMC AC Input Digital Servo Drives-Bassoon - Manual (Page 43)

Bassoon Installation Guide Installation
MAN-BASIG (Ver. 1.502)
www.elmomc.com
43
3.5.7.2. Digital Output (Port J6)
Notes for connecting the digital output cable:
• Use 24 or 26 AWG twisted pair shielded cable.
• Connect the cable shield to the ground near the controller according to the manufacturer’s
recommendations.
Pin Signal Function Pin Positions
1 OUT1 Programmable output 1
2 OUTRET1 Programmable output return 1
3 OUT2 Programmable output 2
4 OUTRET2 Programmable output return 2
Table 13: Digital Output Cable Pin Assignment

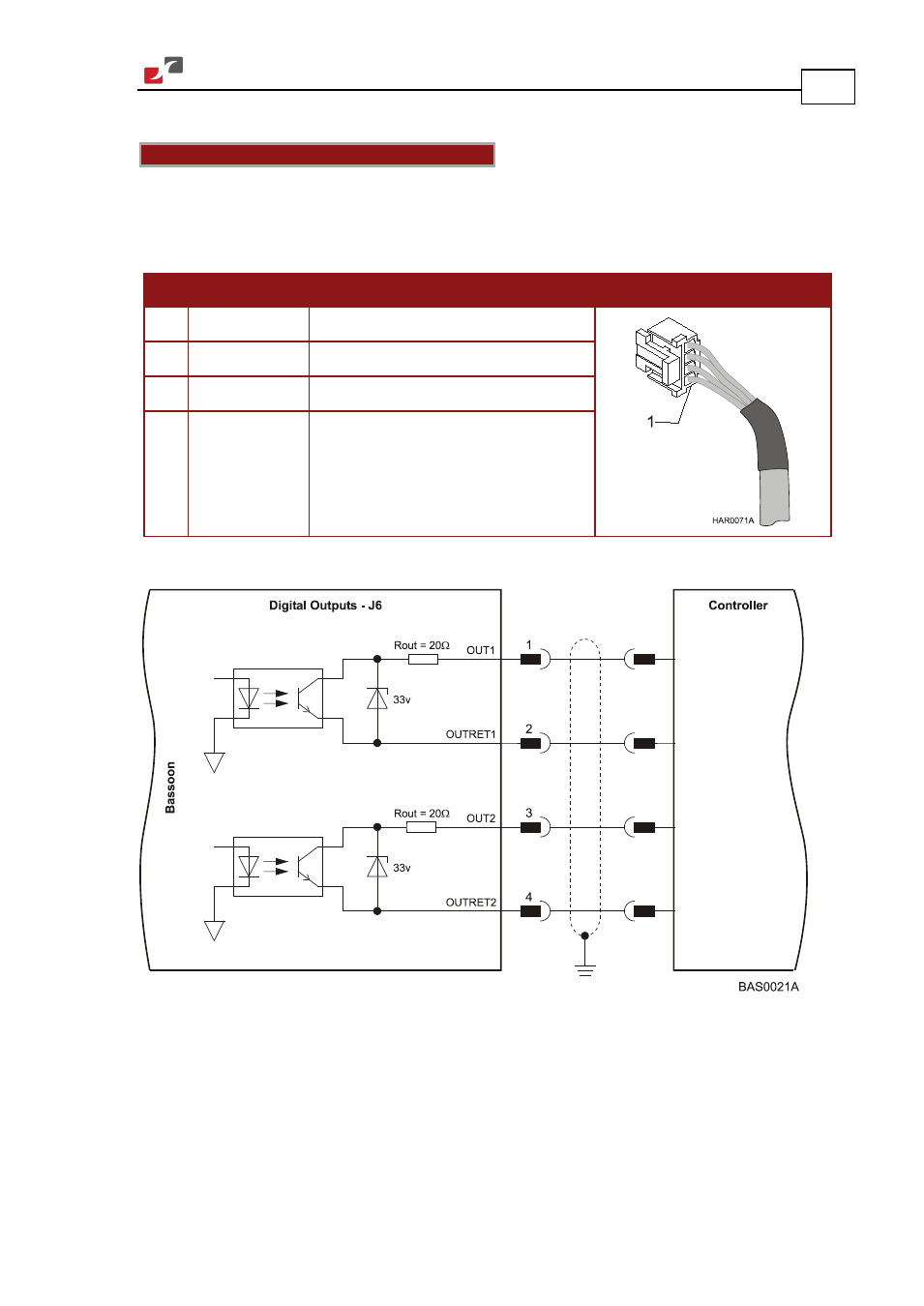

Figure 27: Digital Output Connection Diagram
