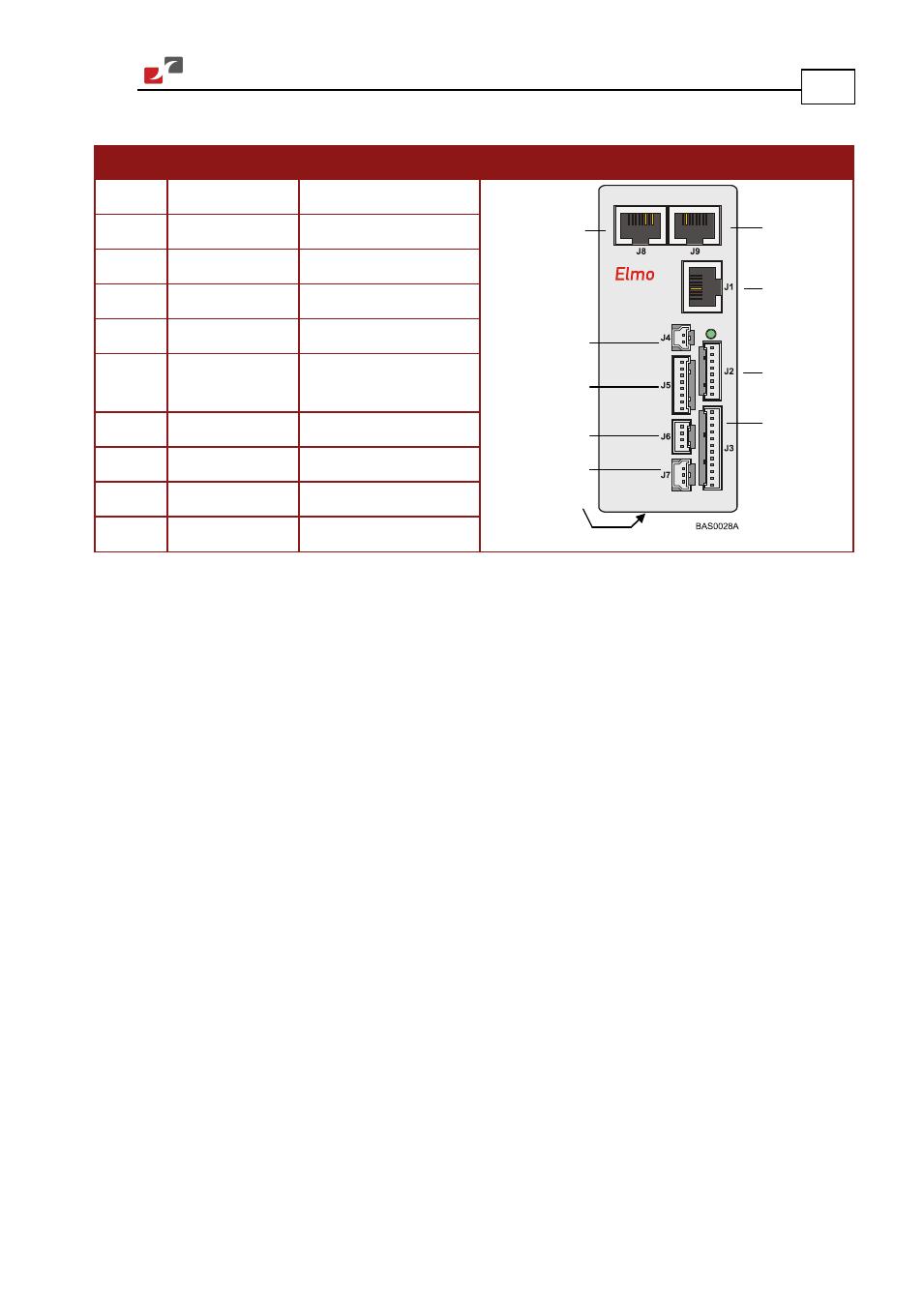

The following connectors are used for wiring the Bassoon.
Port Type Function Connector Location
J8 8-Pin RJ-45 CANopen
J9 8-Pin RJ-45 CANopen
J1 8-Pin RJ-45 RS-232
J2 8-Pin Molex Auxiliary Feedback
J3 12-Pin Molex Main Feedback
J4 2-Pin Molex Auxiliary power
supply
J5 8-Pin Molex Digital input
J6 4-Pin Molex Digital output
J7 3-Pin Molex Analog input
Power 7-Pin Phoenix Main power
Table 1: Bassoon Connectors
Auxiliary
Power
Supply
Digital Input
Digital Output
CANopen
Auxiliary
Feedback
Main
Feedback
Main
CANopen
RS232
Analog Input
