Bassoon Installation Guide
Technical Specifications
MAN-BASIG (Ver. 1.502)
63
4.8.1.
Digital Input Interfaces
Feature
Details
Connector Location
Type of input
•
Optically isolated
•
Single ended
•
PLC level
Input current
Ω
−
=
2500
5
.
6
V
Vin
Iin
* Iin = 2.2 mA @ Vin = 12 V
Input current for high
speed inputs
Ω
−
=
1250
5
.
6 V
Vin
Iin
* Iin = 4.4 mA @ Vin = 12 V
High-level input
voltage
12 V < Vin < 30 V, 24 V typical
Low-level input
voltage
0 V < Vin < 6.5 V
Minimum pulse width > 4 x TS, where TS is sampling time
Execution time (all
inputs): the time from
application of voltage
on input until
execution is complete
If input is set to one of the built-in functions —
Home, Inhibit, Hard Stop, Soft Stop, Hard and
Soft Stop, Forward Limit, Reverse Limit or
Begin — execution is immediate upon
detection: 0 < T < 4 x T
If input is set to General input, execution
depends on program. Typical execution time:
≅ 0.5 msec.
High-speed inputs -
minimum pulse
width, in high-speed
mode
T < 5 µsec
Notes:
•
Home mode is high-speed mode and can be
used for fast capture and precise homing.
•
High speed input has a digital filter set to same
value as digital filter (EF) of main encoder.
•
Highest speed is achieved when turning on
optocouplers.

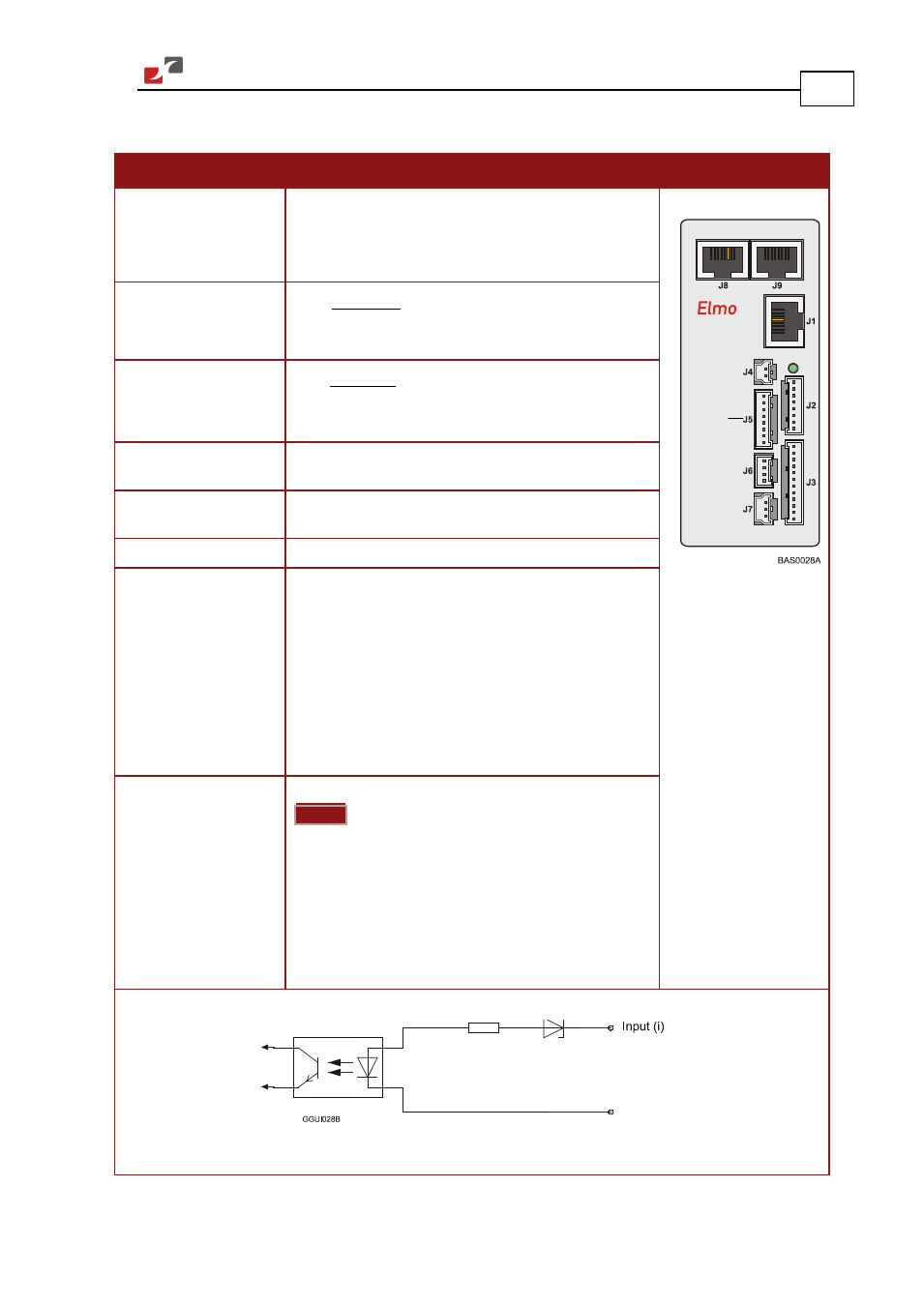

Figure 32: Digital Input Schematic
General input return
Rin = 2.5K Vz = 5.1 V
Digital
Input
