3-3-4 Demilitarized Zone (DMZ)
Demilitarized Zone (DMZ) refers to a special area in your local network. This area resides in local network,
and all computers in this area uses private IP address, too. But these private IP addresses are mapped to a
certain Internet IP address, so other people on Internet can fully access those computers in DMZ.
Please follow the following instructions to set DMZ parameters:

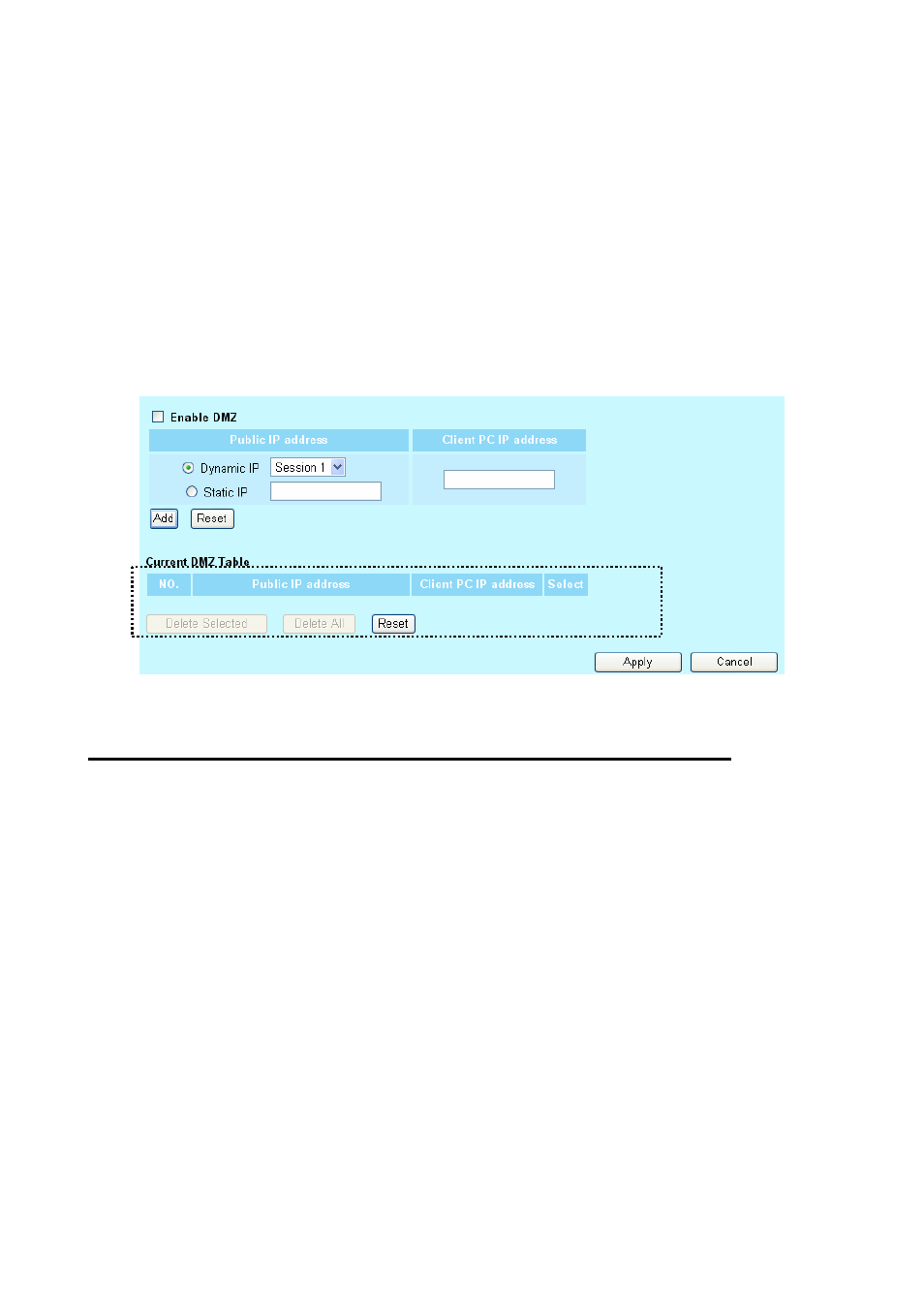

Please click ‘Firewall’ menu on the left of web management interface, then click ‘DMZ’, and the following
message will be displayed on your web browser:
1
2 3
4
5
Here are descriptions of every setup items:
Enable DMZ (1): Check this box to enable DMZ function, uncheck this box to disable DMZ function.
6
7 8 9
10
Public IP You can select ‘Dynamic IP’ or ‘Static IP’ here.
address (2): If you select ‘Dynamic IP’, you have to select an Internet connection session from
dropdown menu; if you select ‘Static IP’, please input the IP address that you want
to map to a specific private IP address.
Client PC IP Please input the private IP address that the
address (3): Internet IP address will be mapped to.
Add (4): Click ‘Add’ button to add the public IP address and associated private IP address
to the DMZ table.
Reset (5): Click ‘Clear’ to remove the value you inputted in Public IP address and Client PC
IP address field.
