3-2-2 Port Forwarding
This function allows you to redirect a single port or consecutive ports of Internet IP address to the same port of
the IP address on local network. The port number(s) of Internet IP address and private IP address (the IP
address on local network) must be the same. If the port number of Internet IP address and private IP address
is different, please use ‘Virtual Server’ function, described in next section.

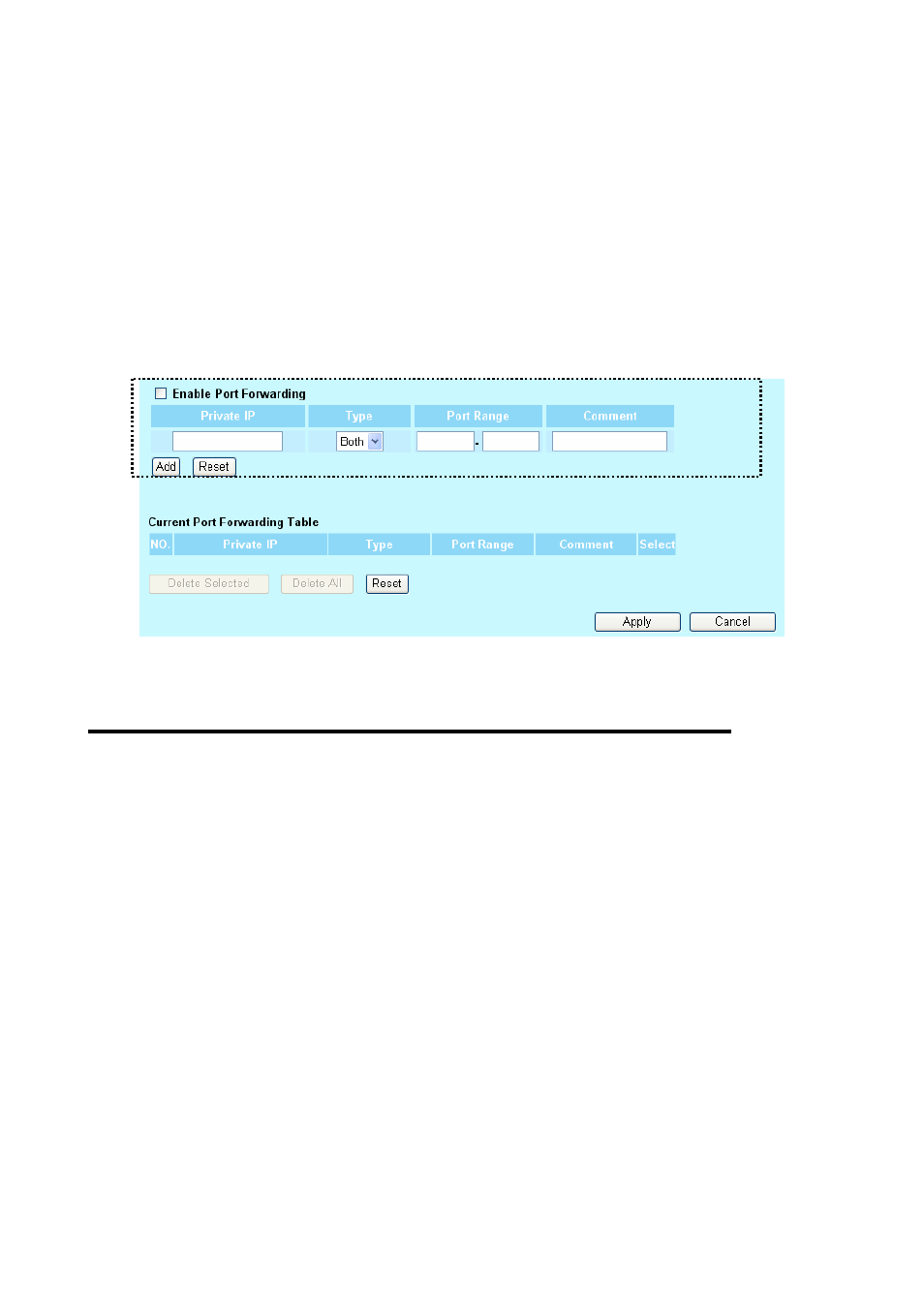

Please click ‘NAT’ menu on the left of web management interface, then click ‘Port Forwarding’, and the
following message will be displayed on your web browser:
Here are descriptions of every setup items:
Enable Port Check this box to enable port mapping,
1
2
3 4
5
Forwarding (1): and uncheck this box to disable port mapping.
Private IP (2): Input the IP address of the computer on local network which provides internet
service.
Type (3): Select the type of connection, TCP or UDP. If you’re not sure, please select ‘Both’.
Port Range (4): Input the starting port number in the left field, and input the ending port number in
the right field. If you only want to redirect a single port number, just fill the port
number in the left field.
Comment (5): Please input any text to describe this mapping, up to 16 alphanumerical
characters.
Add (6): Add the mapping to port forwarding table.
