5. Console Management in SNMP-FSH2602MG v2
AirLive SNMP-FSH2602MG v2 User’s Manual 86
RSTP
Spanning tree is a link management protocol that provides path redundancy while
preventing undesirable loops in the network.
„

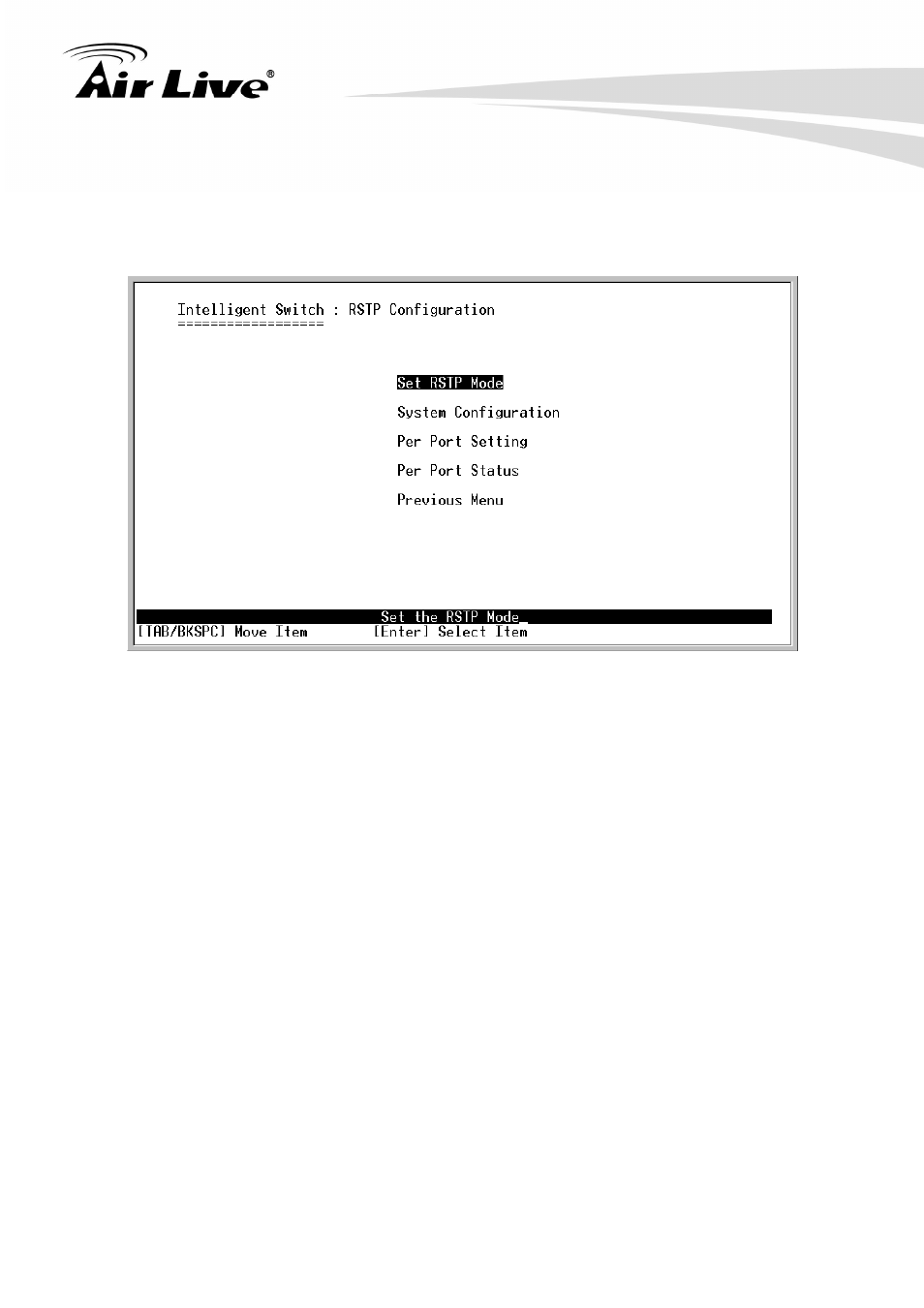

RSTP Setup
You must enable Rapid Spanning Tree function before configuring RSTP function.
1. Select
2. Use “Space” key to select the option. User can select “RSTP”, “Disable” or “STP”.
3. Select .
„
System Configuration
You can configure the RSTP system parameter after enable the RSTP function. You can
view spanning tree information about the Root Bridge on the left.
1. Select
2. Priority: Assign path priority number. The valid value is 0 ~ 61440. The default is
32678.
3. Max Age: The maximum path age. The valid value is 6 ~ 40 seconds. The default is 20
seconds.
