4. Web Management in SNMP-FSH2602MG v2
17
AirLive SNMP-FSH2602MG v2 User’s Manual

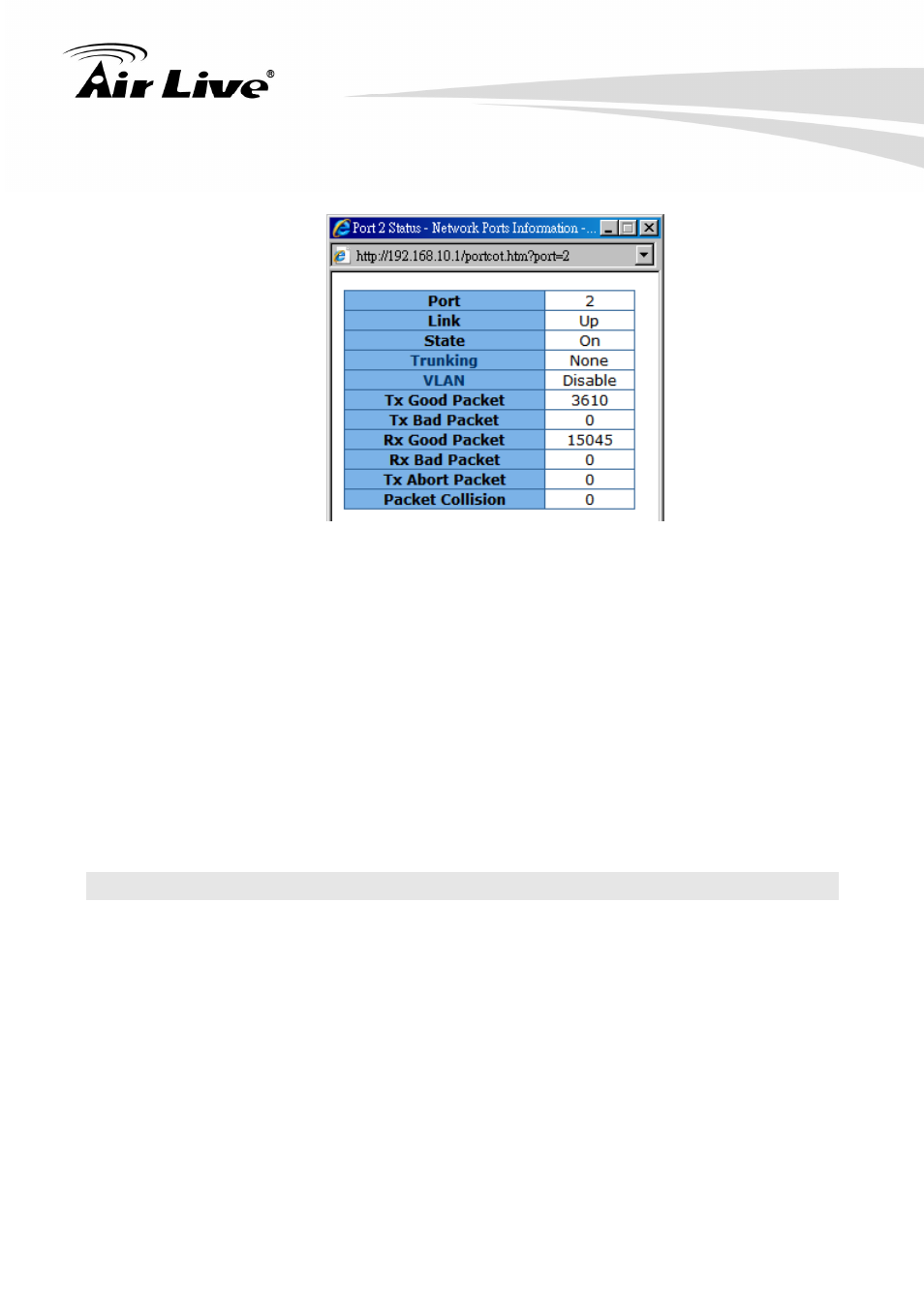

„ Top Bar: It display panel GUI. You can direct click the port on the Switch figure
on the top of web page. Then, you will see the port information.
„ Side Menu: All management functions will show in Side Menu, you can choose any
one of them to configure its setting. The detailed introduction for all management
function will explain in below chapters.
„ Main Screen: Once choosing any function of Side Menu, the configuration page of
the function will show in Main Screen. You can configure the function by instruction
of manual.
Note:
You can click “Help” button when you have any configuration question during configuring.
4.2 Port Status
In Port status, you can view every port status that depended on user setting and the
negotiation result.
1. Link: “Down” is “No Link”. “UP” is “Link”.
2. State: Display port statuses “disable” or “enable”. “Unlink” will be treated as “off”.
3. Auto Negotiation: Display the auto negotiation mode: auto/force/Nway-force. “Config”
means the value that user configured. “Actual” means the current value of the port.
4. Speed Duplex: Display port connection speed. “Config” means the value that user
configured. “Actual” means the current value of the port.
5. Flow Control: Display the flow control status is “enable” or “disable” in full duplex
mode. “Config” means the value that user configured. “Actual” means the current value
