5. Console Management in SNMP-FSH2602MG v2
95
AirLive SNMP-FSH2602MG v2 User’s Manual
LACP disable, the group is local static trunk group.
4. Working Port Num: The max number of ports can be aggregated at the same time. If
LACP static trunk group, the exceed ports is standby and able to aggregate if work
ports fail. If it is local static trunk group, the number must be the same as group ports.
5. Select
NOTE: Before set LACP support, you have to set trunk group on the Trunk
Configuration.
„

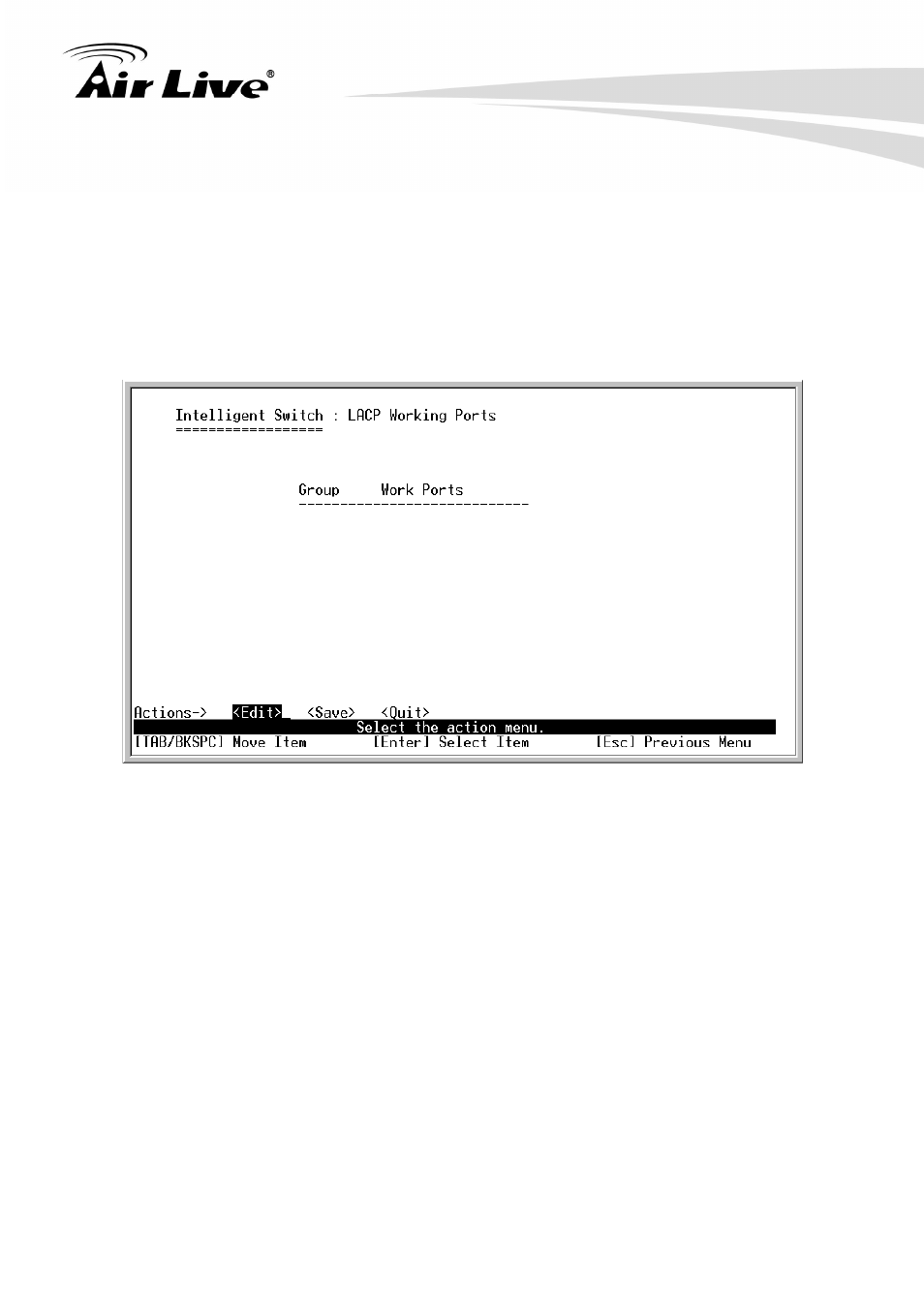

LACP State Activity
1. Select
2. Use “Space” key to select the Port State Activity.
„ Active: The port automatically sends LACP protocol packets.
„ Passive: The port does not automatically send LACP protocol packets, and
responds only if it receives LACP protocol packets from the opposite device.
3. Select .
