4. Web Management in SNMP-FSH2602MG v2
AirLive SNMP-FSH2602MG v2 User’s Manual 26
2. IGMP needs to be enabled when the router’s IP address is not smaller than other
switches in the subnet. This Router supports IGMP protocol, but IGMP has to be
enabled, and the Router has to be the Querier.

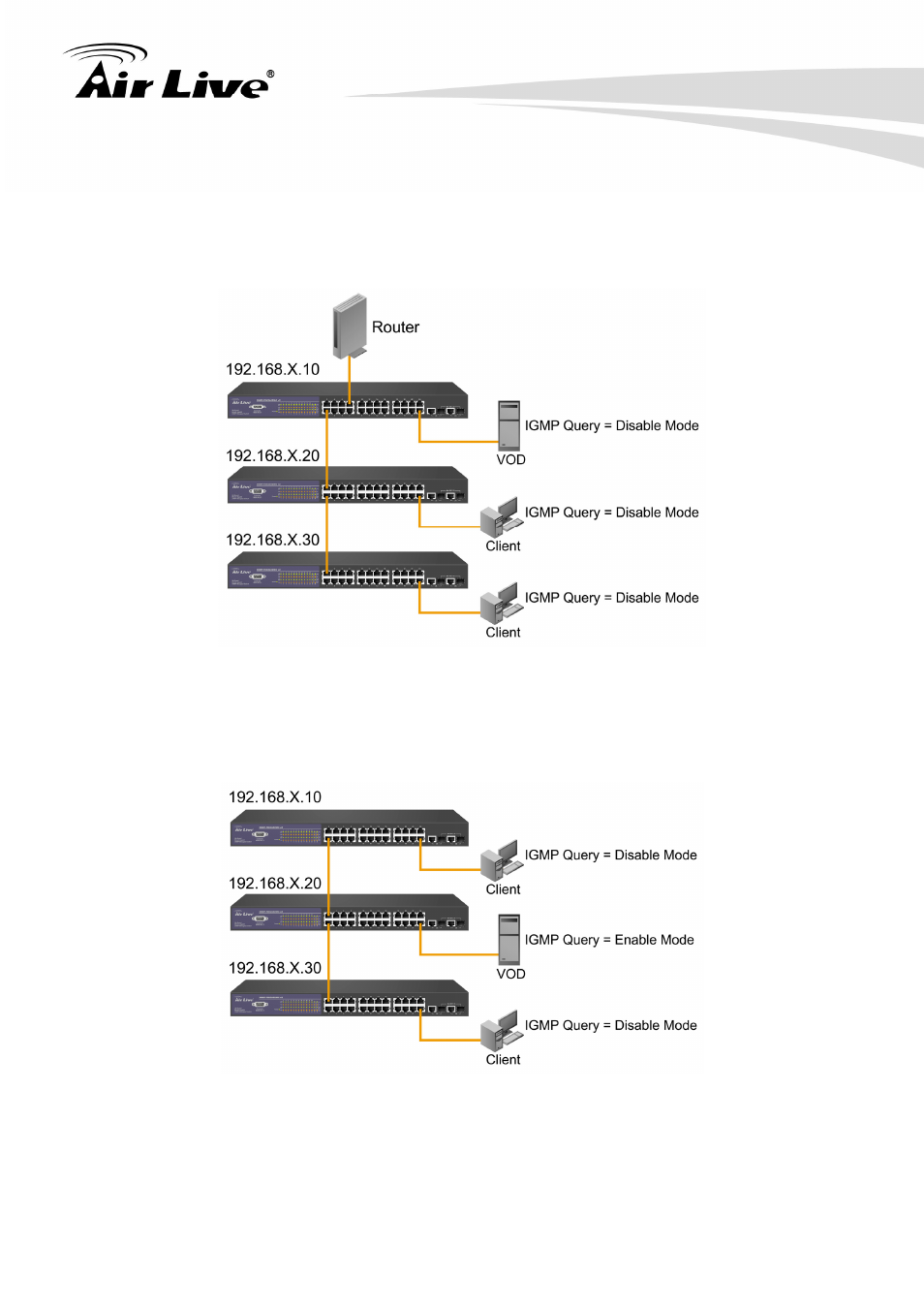

3. The following topology must be set when the IP address of the switch is not the smallest
in the subnet. The network will cause a multi-cast storm from the IGMP client report if it
is in Auto mode. All switches must be in disable mode when the VOD server is
configured for IGMP Querier.
Note: It is suggested that the VOD server switch have the smallest IP address.
