„ Untag: outgoing frames without VLAN-Tagged.
Port VID

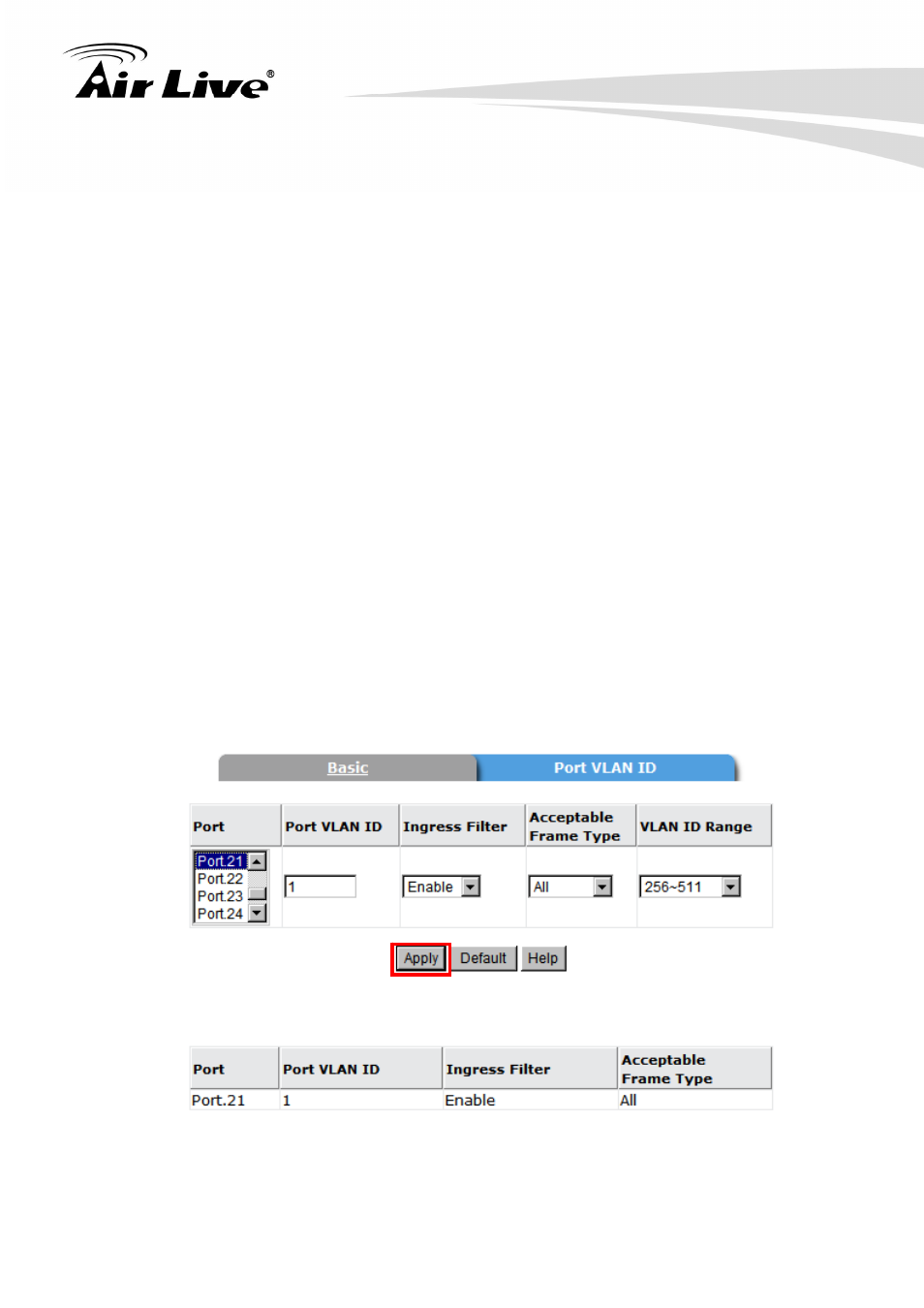

In this page, you can configure port VID setting.
1. Port VLAN ID: Enter the port VLAN ID
2. Ingress Filtering: Ingress filtering lets frames belonging to a specific VLAN to be
forwarded if the port belongs to that VLAN.
„ Enable: Forward only packets with VID matching this port's configured VID.
„ Disable: Disable Ingress filter function
3. Acceptable Frame type:
„ Tag Only: Only packet with match VLAN ID can be permission to go through
the port.
„ ALL: Acceptable all Packet
4. VLAN ID Range: Select a range of VLAN ID. There are 16 VLAN ID range. The ports
are assigned to the same VLAN ID will be in the same VLAN group.
5. Click “Apply” button to apply your setting.
6. To reset back to default value, click “Default” button.
