AirLive SNMP-FSH2602MG v2 - Manual (Page 58)

4. Web Management in SNMP-FSH2602MG v2
53
AirLive SNMP-FSH2602MG v2 User’s Manual

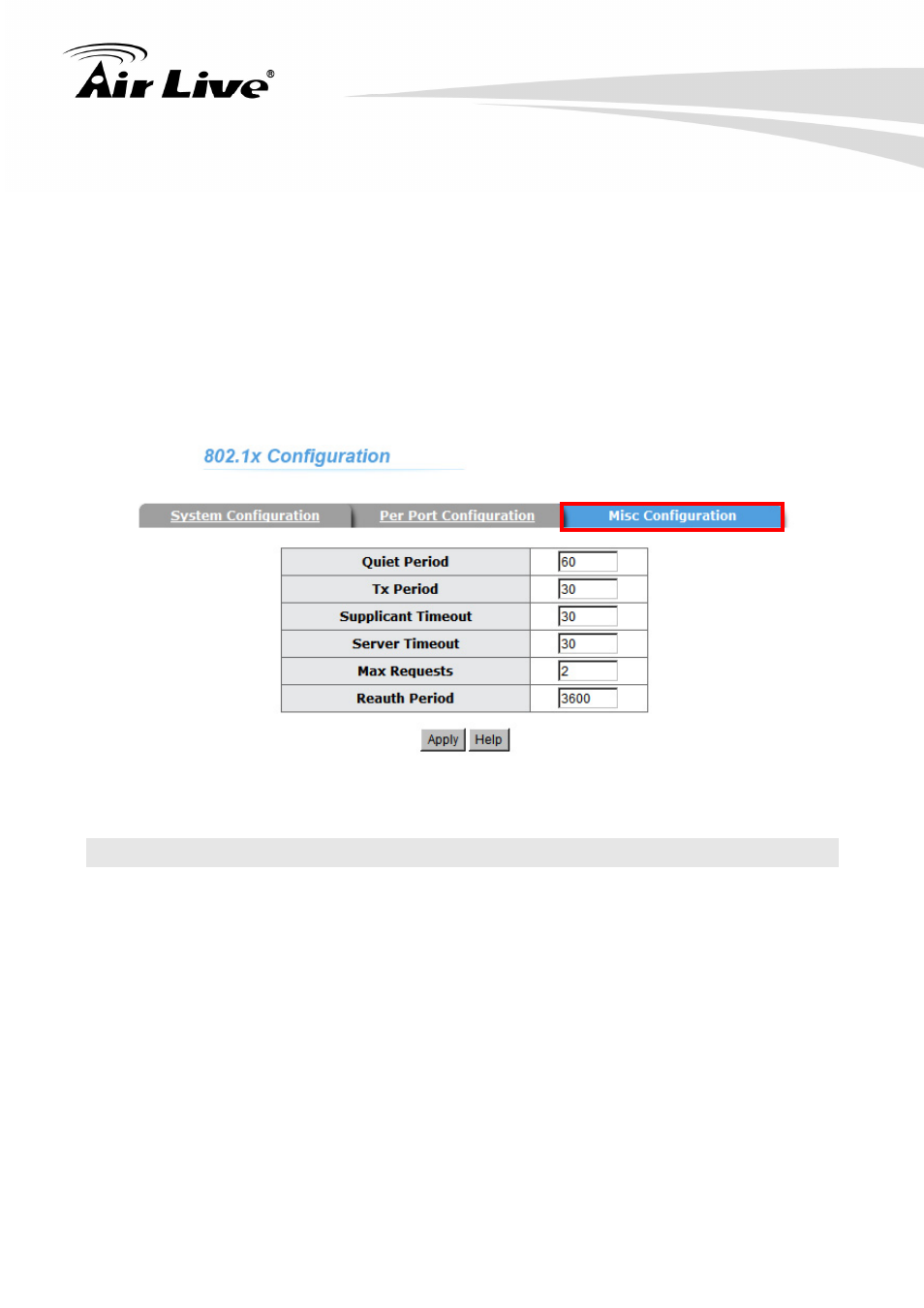

to an EAP request. The valid range is from 1 to 300. The default time is 30 seconds.
4. Server timeout: Set the period of time the switch waits for a server response to an
authentication request. The valid range is from 1 to 300. The default time is 30
seconds
5. Max requests: Set the number of authentication that must time-out before
authentication fails and the authentication session ends. The valid range is from 1 to
10. The default value is 2 times.
6. Reauth period: Set the period of time after which clients connected must be
re-authenticated. The valid range is from 1 to 99999. The default value is 3600
seconds.
4.5 TFTP Update Firmware
It provides the functions to allow a user to update the switch firmware. Before updating,
make sure you have your TFTP server ready and the firmware image is on the TFTP
server.
1. TFTP Server IP Address: Fill in your TFTP server IP. The default IP address is
192.168.10.2.
2. Firmware File Name: Fill the name of firmware image. The default file name is
image.bin.
3. Click “Apply” button to upgrade the firmware.
