5. Console Management in SNMP-FSH2602MG v2
69
AirLive SNMP-FSH2602MG v2 User’s Manual

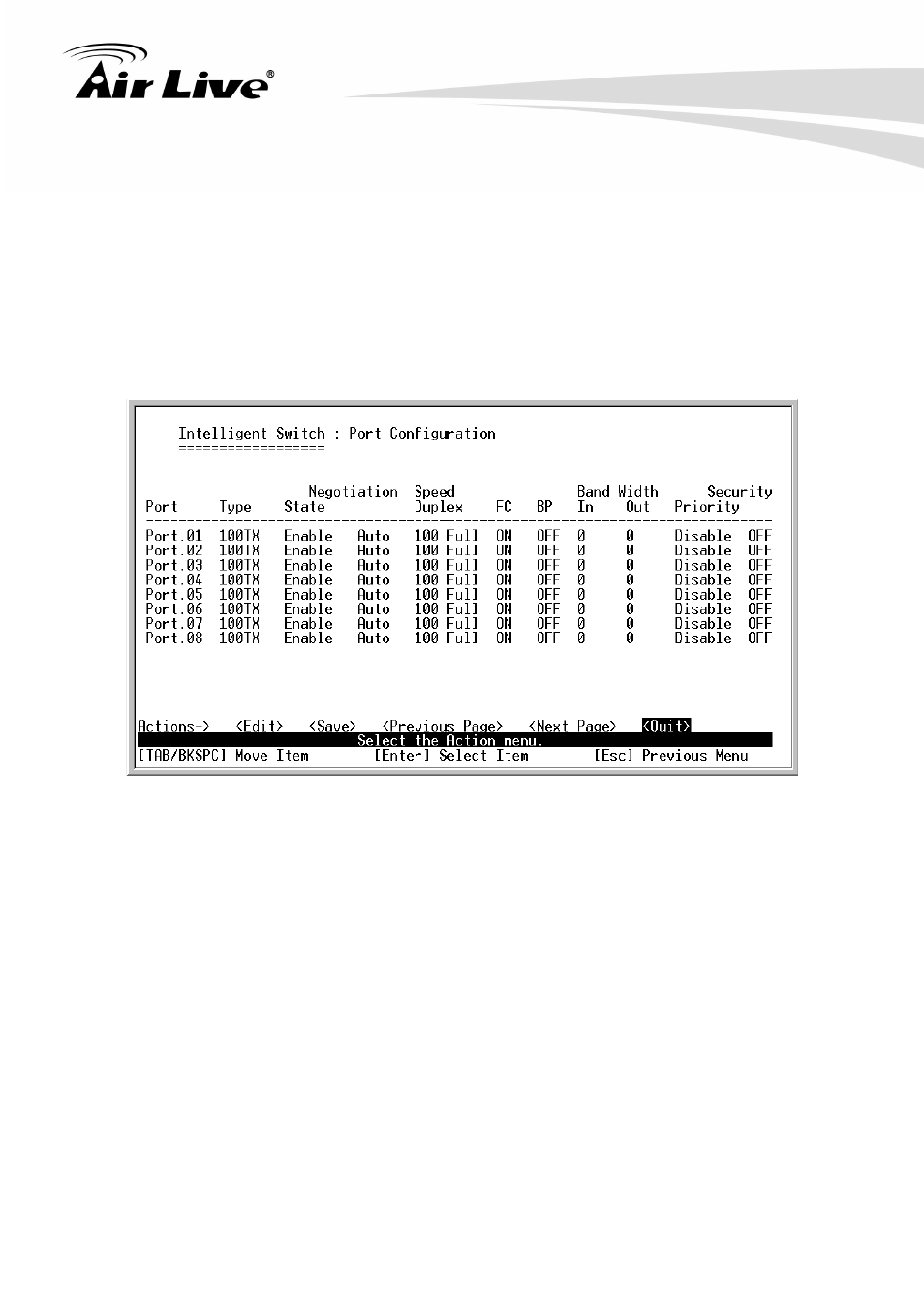

6. FC: enable or disable Flow control function (Flow control for full duplex link mode).
7. BP: enable or disable Back Pressure function (Backpressure for half duplex mode).
8. Bandwidth In/Out: per port packet transmission rate control. Per level is 100Kbps. It
supports individual control method of TX and RX.
9. Priority: set port to high or low priority.
10. Security: enable or disable port security function.
11. Select the .
Trunk Configuration
You can configure port trunk group.
1. Select
2. Using “Tab” key move to the port that want to be added into trunk group.
3. Using “Space” key to mark the port as “＊”.
4. Using Tab key move to “Trunk #” (ex. Trunk 1, Trunk 2…) to change the Trunk # value
to “Static”.
5. Save the configuration by selecting .
