6. Application Example: VLAN Network
109
AirLive SNMP-FSH2602MG v2 User’s Manual

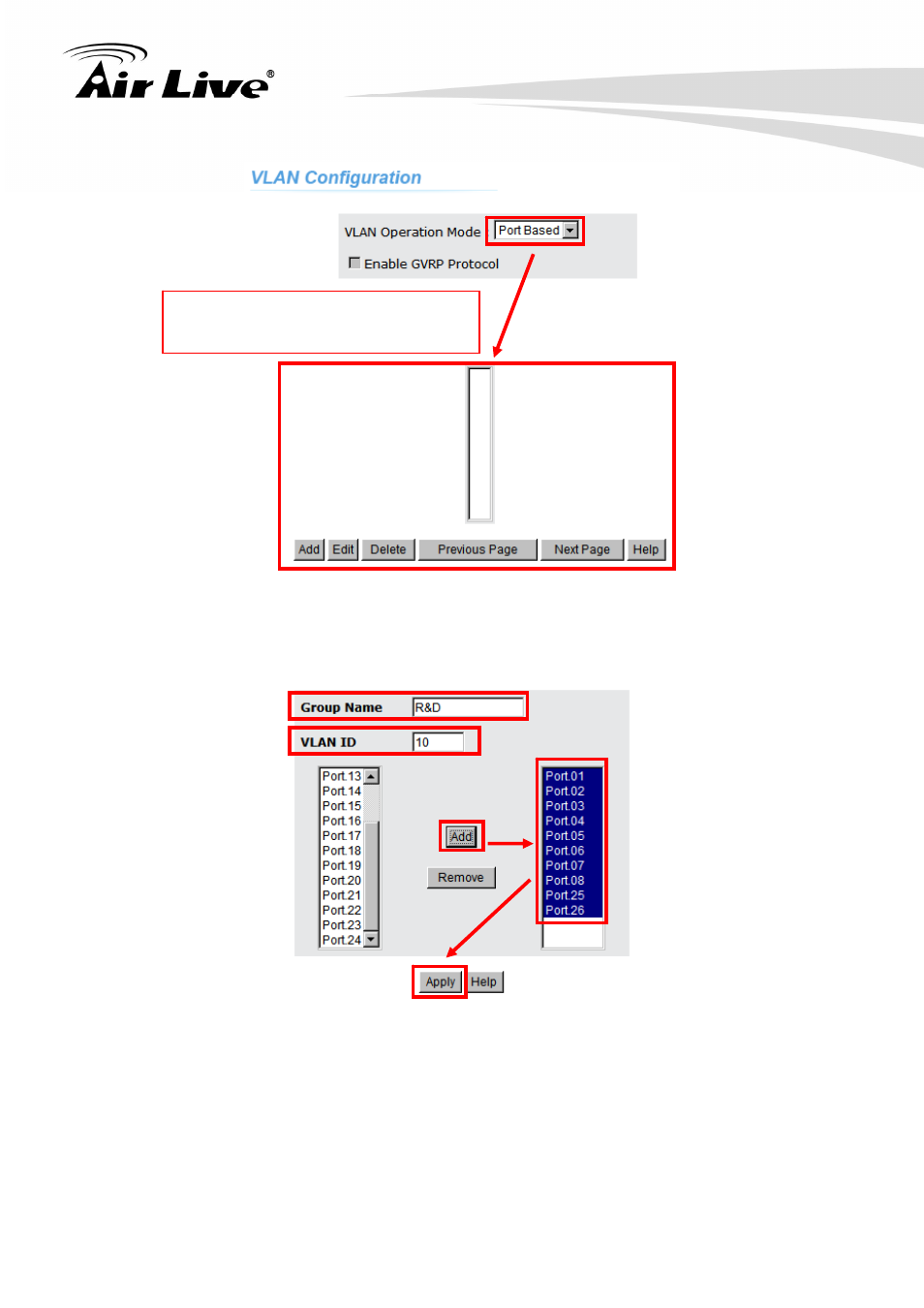

Step 2 Click
“Add” button to create one VLAN group whose group name is “R&D”, VLAN
is 10, member ports are port 1 to port 8, port 25, and port 26. Click “Apply” button
to create your VLAN group.
Step 3 Follow Step 2 to create another two VLAN groups.
The detailed setting is below:
z Group name: R&D, VLAN ID: 10, member ports: port 1 to 8; port 25, port 26
z Group name: Sales, VLAN ID: 20, member ports: port 9 to 16; port 25, port 26
z Group name: Admin, VLAN ID: 30, member ports: port 17 to 24; port 25, port
When selecting Port Based mode,
the configuration page will display
