AirLive SNMP-FSH2602MG v2 - Manual (Page 87)

5. Console Management in SNMP-FSH2602MG v2
AirLive SNMP-FSH2602MG v2 User’s Manual 82

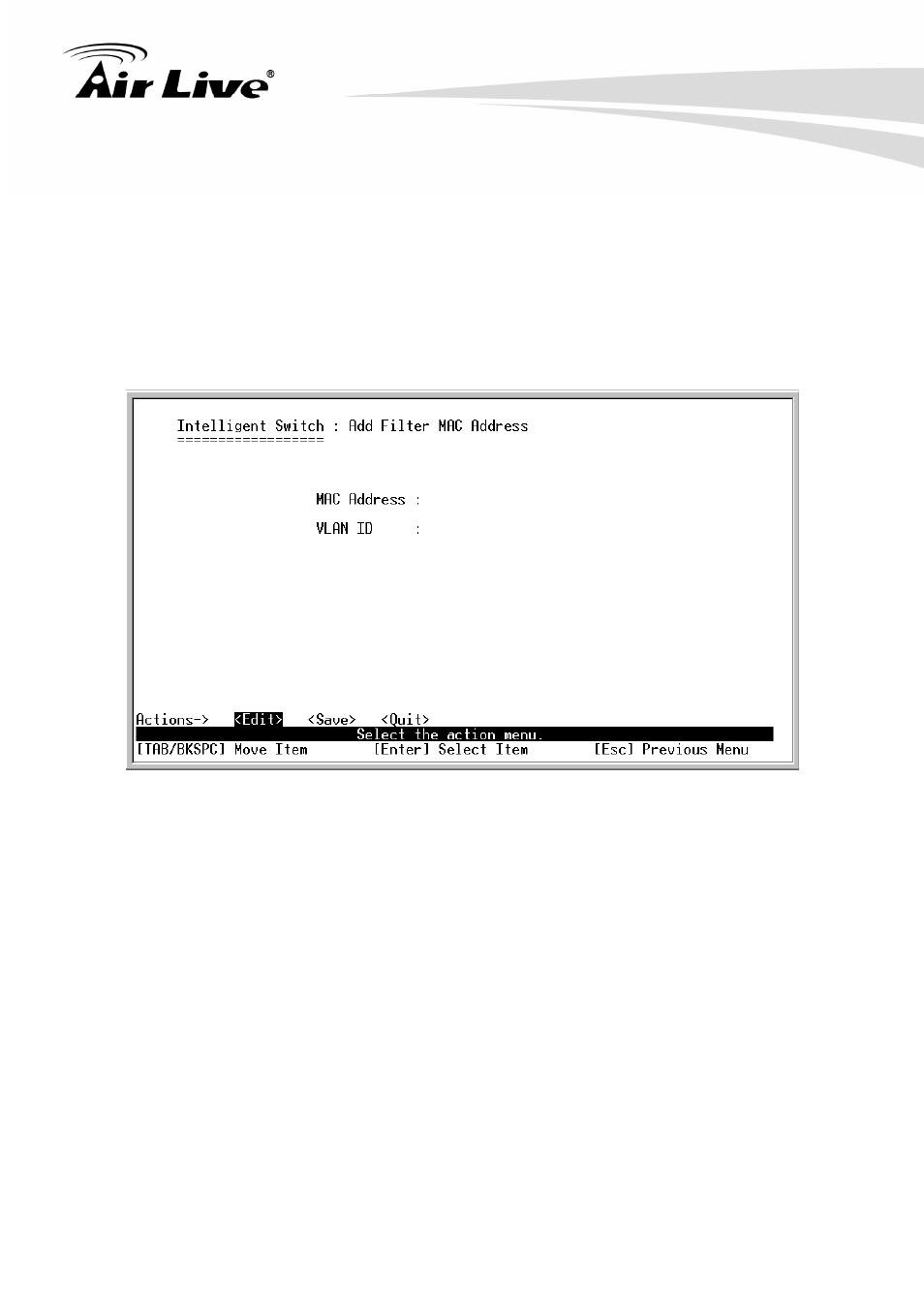

2. MAC Address: Enter the MAC address that you want to filter.
3. VLAN ID: Enter the Mac address’s VLAN ID, if the Mac address belongs to any VLAN
group.
Note: if user does not do any VLAN configuration in advance, the setting of VALN ID
will not showed in the screen.
4. Press “ESC” to go back action menu line.
5. Select
to save all configure value.
Edit Filtering MAC address
1. Select
key to modify a static Filtering address.
2. Choose the MAC address that you want to modify and then press “Enter”.
3. Select
key to modify.
4. Press “ESC” to go back action menu line
5. Select to save all configure value.
Delete Filtering MAC address
1. Select
key to delete a Filtering MAC address.
2. Choose the MAC address that you want to delete and then press “Enter”.
3. After delete Filtering MAC address, you have to select to complete the
deleting operation.
