5. Console Management in SNMP-FSH2602MG v2
75
AirLive SNMP-FSH2602MG v2 User’s Manual
2. Select
.

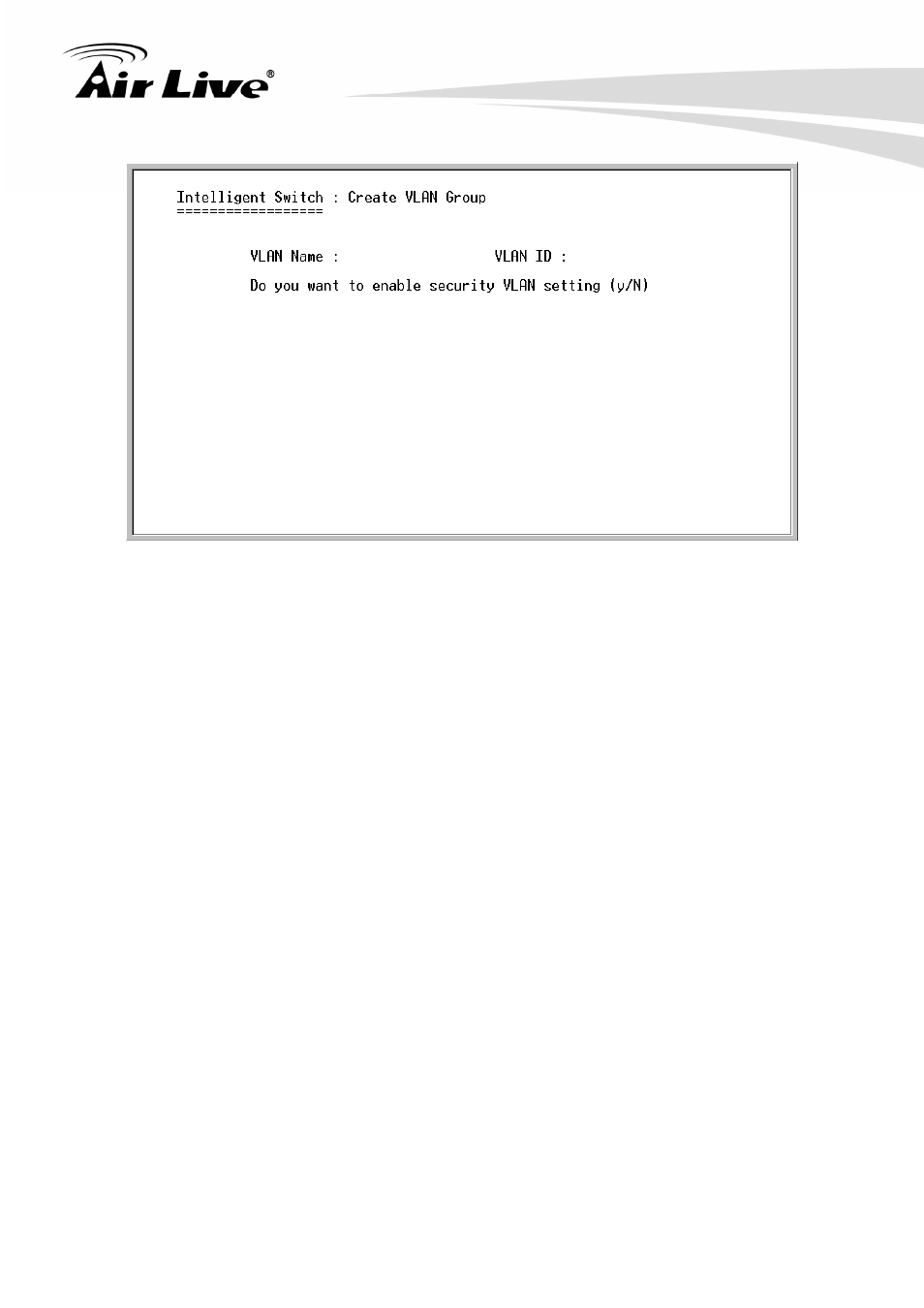

3. VLAN Name: Type a name for the new VLAN, ex: VLAN01.
4. VLAN ID: Type a VID (between 1~4094). The default is 1. There are 256 VLAN groups
to provided configure.
5. Protocol VLAN: Press “Space” key to choose protocols type.
6. Member: Press “Space” key to change the member value.
„ Untagged: this port is the member port of this VLAN group and outgoing frames
are NO VLAN-Tagged frames.
„ Tagged: this port is the member port of this VLAN group and outgoing frames are
VLAN-Tagged frames.
„ NO: it means that the port is NOT member of this VLAN group.
7. Press “ESC” key to go back action menu line.
8. Select to save the configuration.
