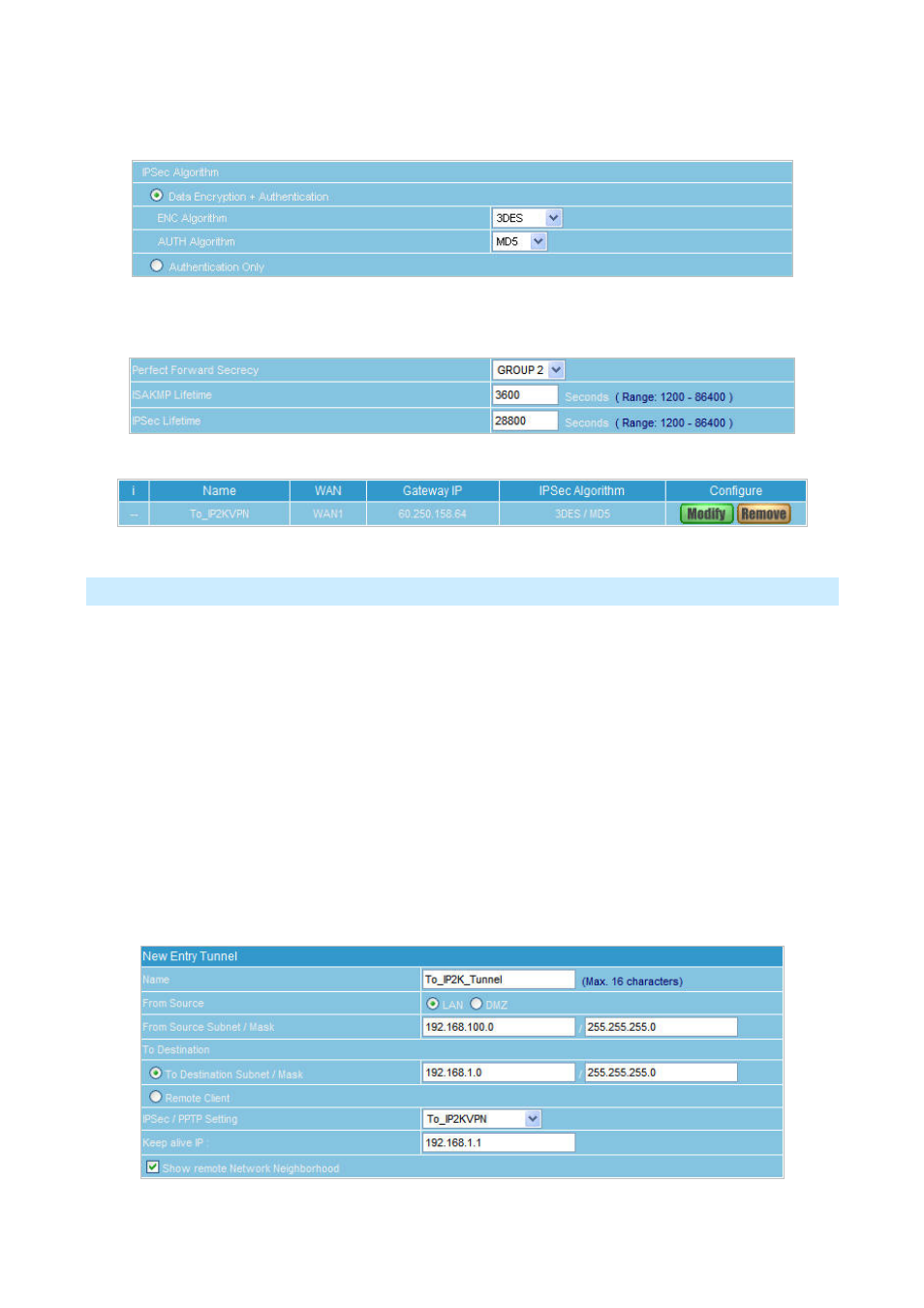

6. Select Data Encryption + Authentication in IPSec Algorithm list. Here we select 3DES for ENC Algorithm
and MD5 for AUTH Algorithm to make sure the encapsulation way for data transmission.
7. After selecting GROUP2 in Perfect Forward Secrecy, enter 3600 seconds in ISAKMP Lifetime; enter
28800 seconds in IPSec Lifetime, and selecting Main mode in Mode.
8. Complete the IPSec Autokey setting.
Step 5: Configure RS-1200 IPSec Tunnel
Enter the following setting in Tunnel of VPN function:
• Enter a specific Tunnel Name.
• From Source: Select LAN.
• From Source Subnet / Mask: Enter 192.168.100.0 / 255.255.255.0.
• To Destination: Select To Destination Subnet / Mask.
• To Destination Subnet / Mask: Enter 192.168.1.0 / 255.255.255.0.
• IPSec / PPTP Setting: Select To_IP2KVPN
• Enter 192.168.1.1 (the Default Gateway IP of IP-2000VPN) as the Keep alive IP.
• Select
Show remote Network Neighborhood
.
• Click
OK
.
