JLG 510AJ Service Manual - Manual (Page 245)

SECTION 5 - HYDRAULICS AND HYDRAULIC SCHEMATICS
3121181 – JLG Lift – 5-25
4
5
6
7
12
10**
8
9
11
2
3
3*
13
15
14
16
17
18
19***
20
1
1
1
1
21
1684242
* Torque to 33 ft-lb (45 Nm)
** Torque to 368 ft-lb (500 Nm)
*** Torque to 147 ft-lb (200 Nm)
1. Bushing
2. Barrel
3. Cartridge Valve
4. O-Ring
5. Retaining Ring
6. Wiper
7. Seal
8. Backup Ring
9. O-Ring
10. Head
11. O-Ring
12. O-Ring
13. Bushing
14. O-Ring
15. Piston
16. Seal 17. Bushing
18. Sleeve
19. Nut
20. Retaining Ring
21. Rod

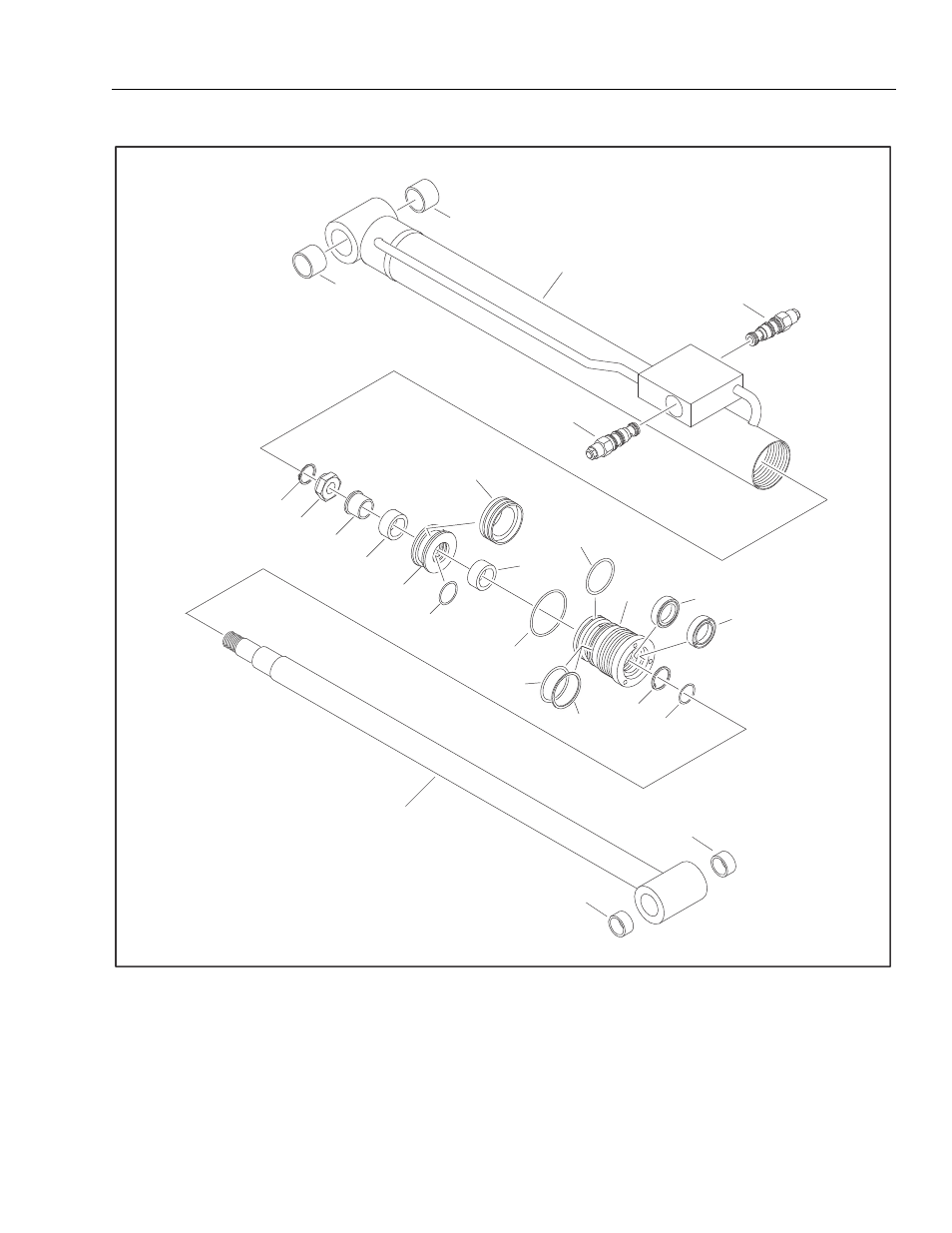

Figure 5-54. Jib Lift Cylinder
