SECTION 1 - SPECIFICATIONS
1-8 – JLG Lift – 3121181
15. Air Filter
Lube Point(s) - Replaceable Element
Interval - Every 6 months or 300 hours of operation or as
indicated by the condition indicator
1.9 MAJOR COMPONENT WEIGHTS
1.10 PRESSURE SETTINGS
1.11 SERIAL NUMBER LOCATION
A serial number plate is affixed to the left rear side of the
frame. If the serial number plate is damaged or missing, the
machine serial number is stamped on the left side of the
frame.
Table 1-19. Component Weights
Component Pounds Kilograms
Engine Only 440 200
Upper Boom 1257 570
Frame (Bare) 2105 955
Turntable (Bare) 1533 695.5
Table 1-20. Pressure Settings
SETTING PSI BAR
Bang-Bang Main Relief 3300 227.5
Steer 2500 172
Platform Level Up 2800 193
Platform Level Down 1800 124
Articulating Jib 1500 103
Proportional Main
Relief 3200 220
Lift Down 1200 83
Swing 1700 117

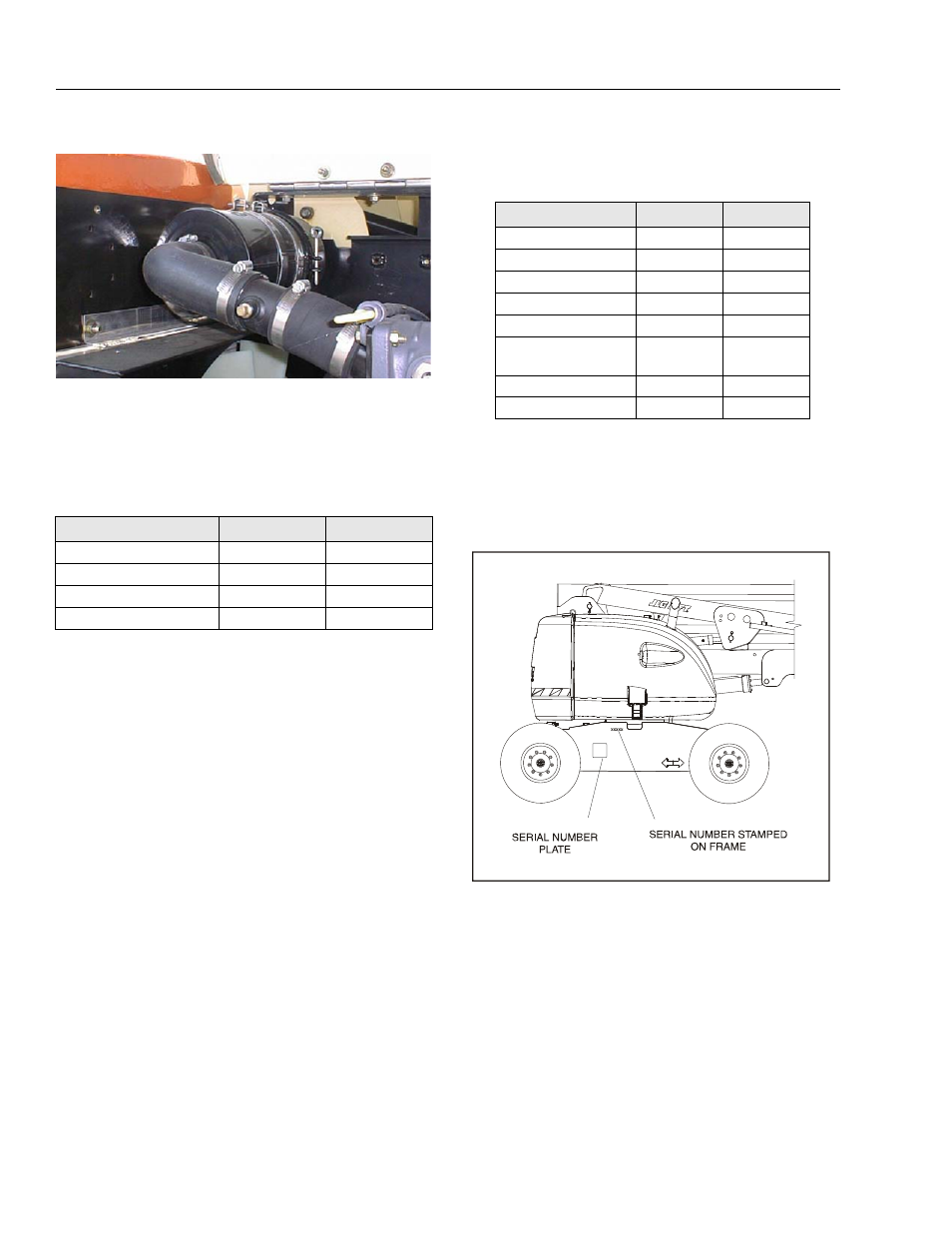

Figure 1-2. Serial Number Locations
